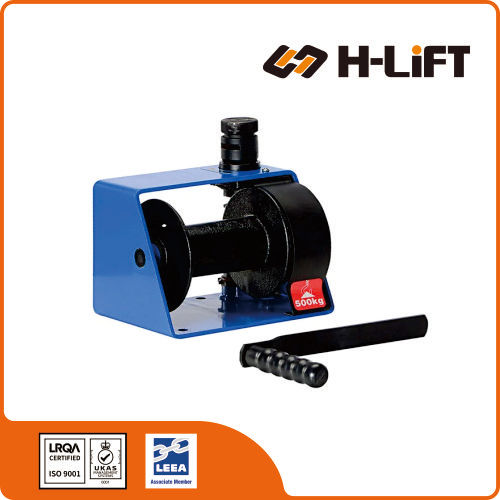

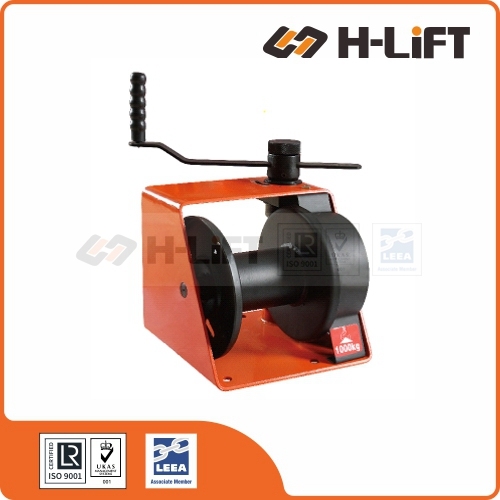

Hand Winch HW-AB type

Name: Hand Winch HW-AB type
Brand: H-Lift Industries Co Ltd
SKU: 4204
Availability: InStock
Rating: 5 (1 reviews)

No.4204

The H-Lift HW-AB Type Hand Winch is a heavy-duty manual lifting device available in 250kg, 500kg, 1000kg, and 2000kg capacities. Featuring an automatic brake system with precision gear ratios from 15:1 to 86.67:1, this winch provides controlled lifting and pulling operations for construction, marine, and industrial applications where manual operation is preferred.

Four capacity options: 250kg, 500kg, 1000kg, 2000kg
Automatic brake with ratchet and pawl mechanism
High gear ratios (15:1 to 86.67:1) for mechanical advantage
4-layer wire rope drum with optimized storage
Versatile mounting for wall, floor, or vehicle installation

Technical Data
Safe Use of Winches
What is a hand winch ?

The HW-AB Series Worm Gear Winch is designed for precision lifting and positioning. Unlike standard spur gear winches, the worm drive mechanism ensures incredibly smooth, jerk-free operation. Combined with a self-locking design and automatic brake, it offers superior safety and control for delicate industrial tasks.

⚙️ Worm Gear Precision

Provides smooth, jerk-free lifting and lowering. The worm drive mechanism is far superior to spur gears for applications requiring delicate positioning.

🔒 Inherently Safe

Self-Locking Design: The worm gear naturally resists back-driving. The load locks instantly when the handle is released—no separate pawl required.

🛠️ Flexible Installation

Robust steel housing allows for both horizontal (floor/bench) and vertical (wall/column) mounting configurations.

🤲 Ergonomic Operation

Features a comfort-grip handle with adjustable length. Shorten for speed or extend for maximum leverage when lifting near full capacity.

Comparison: Worm Gear vs. Spur Gear

Feature	Worm Gear Winch (HW-AB)	Spur Gear Brake Winch (HW-E)
Lifting Speed	Slower (High Ratio)	Faster
Operation	Very Smooth / Precise	Standard
Holding	Excellent (Self-Locking)	Excellent (Friction Brake)
Best For	Precise Positioning / Adjustments	General Lifting / Pulling
Effort	Low (High mechanical advantage)	Moderate

Pro Tip: If you need to raise a load to an exact height and hold it there (e.g., adjusting a conveyor belt height or a basketball hoop), the Worm Gear (HW-AB) is the superior choice due to its precision and lack of "back-lash."

Technical Specifications

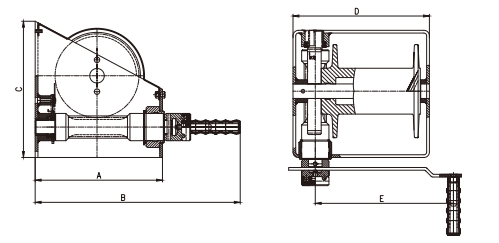

Model	Capacity (kg)	Wire Rope (mm)	Length (m)	No. of Layers	Dimensions (mm)					Drive Ratio	N.W. (kg)	Product Code
Model	Capacity (kg)	Wire Rope (mm)	Length (m)	No. of Layers	A	B	C	D	E	Drive Ratio	N.W. (kg)	Product Code
HWAB0250	250	5	20	4	150	330	150	200	240	15:1	10	420400250
HWAB0500	500	6.3	25	4	180	360	180	260	240	21:1	17	420400500
HWAB1000	1000	9.3	35	4	300	490	300	300	350	26:1	30.5	420401000
HWAB2000	2000	13	30	4	340	534	340	395	380	86.67:1	70	420402000

✅ ALWAYS

Store and handle winches correctly.
Inspect the winch, rope, and accessories before use and before placing into storage.
Ensure mounting and suspension points are secure and suitable for the full loads that will be imposed.
Lift the load just clear, then halt for a short period to ensure the integrity of the brake or sustaining mechanism before completing the lift.
Use a speed appropriate to the specific application.
Keep hands and feet clear of ropes, drums, and moving parts.

❌ NEVER

Raise loads by revolving the drum in the opposite direction to that indicated.
Use winches with loose or insecure handles.
Use the pawl to arrest descending loads.
Use winches if the rope is twisted or trapped.
Overwind the rope on or off the drum.
Use winches for man-riding applications unless they are specifically designed and certified for that purpose.

⚙️ Selecting the Correct Winch

Winches are available for manual or power operation in a range of capacities, designs, and mounting arrangements. Plan the lift by taking any statutory requirements and the following into account:

Type of Winch: Manual, electric, pneumatic, or other operation.
Mounting: Wall, floor, lorry/vehicle, etc.
Capacity: Required load limit and rope drum storage.
Speeds & Control: Single speed, dual speed, push button, pull cord, lever, remote, etc.
Rigging Arrangement: Diverters, pulley blocks, anchorage, suspension points, and imposed loads.

Note: Consult the supplier if the winch is to be used in high-risk areas, exposed to elements (water, steam), hazardous substances (acids, chemicals), or extremes of temperature.

📦 Storing and Handling

Condition: Never return damaged winches or ropes to storage. They should be dry, clean, and protected from corrosion.
Temporary Applications: Remove the rope for separate storage or wind it fully onto the drum and lash in position to prevent damage.
Left In-Situ: Remove pulleys and wind the rope fully onto the drum. If not possible, position pulleys to protect them from damage and ensure they present no danger to personnel. Isolate any power supply.

🛡️ Safe Operating Procedures

Pre-Check: Do not use defective winches, ropes, or pulleys. Check that mounting/suspension points are secure. Do not use timber bearers.
Rigging: Ensure sheaves are correct for the size and type of rope, fleet angles are not too great, the rope is not twisted, and the load is free to move. Check operating handles are secure.
Test Lift: Raise the load just clear and halt the lift to ensure the integrity of the brake and slinging arrangement.
Speed Control: With manual winches, use only the slow speed to raise/lower loads. With power winches, select a speed appropriate to the operation.
Brakes: Ensure oil, water, or foreign matter does not contact lined brakes.
Direction: If the direction of rotation is indicated, the winch must raise the load when turning in that direction.
Clearance: Check rope and load travel paths are clear. Maintain a clear view to avoid accidents.
Drum Rules: Do not overwind the rope on or off the drum. Two turns must always remain on the drum (unless manufacturer specifies more).
Body Safety: Keep fingers, toes, and clothing clear of ropes, pulleys, drums, and other moving parts.

⚠️ In-service Inspection and Maintenance

Follow the specific maintenance instructions issued by the supplier. These should be incorporated into the site maintenance program. Regularly inspect the winch and, in the event of the following defects, refer the winch to a Competent Person for thorough examination:

Insecure mounting or loose/missing bolts.
Distorted winch frame.
Chipped or cracked rope drum flanges.
Loose or pulled rope anchorage.
Worn ratchet, pawl, or slipping brake.
Rope worn, winding incorrectly, or broken wires.
Gears worn or not positively locating.
Any other visible damage, corrosion, or operational faults.

A hand winch is a manually operated mechanical device designed for lifting, pulling, and hoisting heavy loads. It consists of a drum (spool), a handle, and a gear mechanism. Turning the handle engages the gears to wind or unwind a wire rope, allowing the user to manipulate heavy objects with mechanical advantage.

⚙️ Manual Operation

Relies entirely on human effort. The operator turns the handle to wind the cable in or out, making it independent of electricity or fuel sources.

🧳 Portability

Compact and lightweight designs make them easy to transport and install in remote locations where powered equipment is not practical.

⚖️ Weight Capacity

Available in a wide range of sizes, from small models for light pulls (a few hundred kg) to heavy-duty industrial models capable of handling several tons.

🔒 Safety Mechanisms

Many models feature locking mechanisms (such as pawls or automatic friction brakes) to prevent unintentional cable release and maintain load stability.

🎯 Controlled Operation

Offers precise control, allowing the operator to stop, start, and adjust the lifting or pulling speed instantly as required by the task.

Hand winches are essential tools across construction, marine, automotive, and recreational industries. Common uses include:

Pulling or lifting boats onto trailers.
Hoisting loads onto elevated platforms.
Tensioning wire ropes and cables.
Securing heavy machinery during transport.
Assisting in off-road vehicle recovery.

Summary: Hand winches provide a reliable, hands-on solution for moving heavy objects, especially valuable in situations without access to electric power or where precise, manual control is required.
