Home > Products > All Collections > Cargo Securing & Lashing > Manual Winches & Pullers > Hand Winch HW-B type

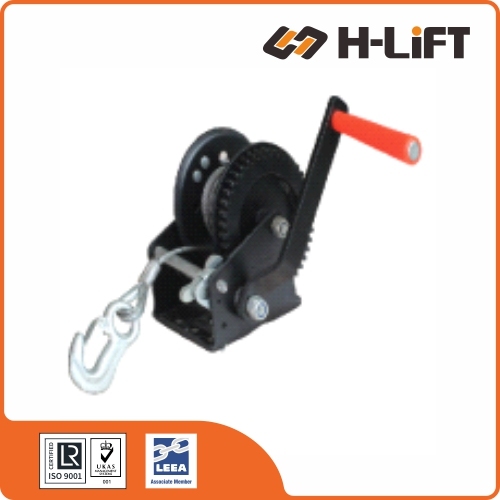

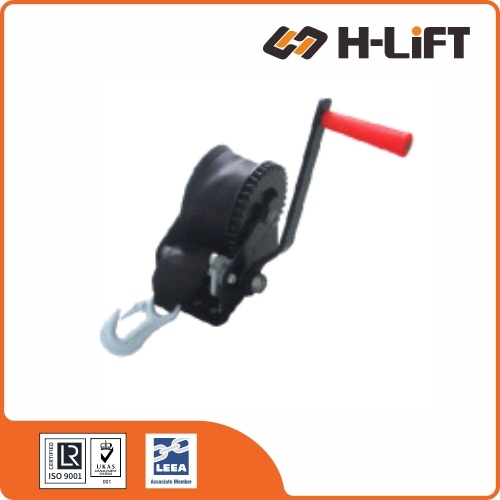

Hand Winch HW-B type

Name: Hand Winch HW-B type
Brand: H-Lift Industries Co Ltd
SKU: 4205
Availability: InStock
Rating: 5 (1 reviews)

No.4205

The H-Lift HW-B Type Hand Winch is a robust manual lifting device designed for heavy-duty pulling, hoisting, and positioning tasks. Featuring a precision gear mechanism with automatic brake system, this winch provides reliable load control for construction, marine, automotive, and industrial applications where manual operation is essential.

Heavy-duty gear mechanism for smooth operation
Integrated automatic brake with ratchet system
Wire rope drum with optimal storage capacity
Versatile mounting options for various installations
Ideal for environments without electric power access

Technical Data
Safe Use of Winches
What is a hand winch ?

The HW-B Series Ratchet Hand Winch is designed for efficient horizontal pulling applications. Featuring a reversible ratchet mechanism and free-spooling capability, it is the standard choice for boat trailers, vehicle recovery, and general pulling tasks where speed and portability are essential.

⏩ Rapid Deployment (Freewheeling)

Features a reversible ratchet pawl that allows the drum to free-spool. This lets you manually pull the cable out in seconds to attach it to your load—a must-have for boat trailers.

⚙️ Dual Speed (2000lb+)

Models HWB2000 and HWB2500 feature two gear ratios. Use the fast gear for taking up slack quickly, and the low gear for pulling heavy loads with high mechanical advantage.

⚓ Durable Construction

Built with heavy-gauge steel frames and finished with zinc plating or powder coating to resist corrosion in outdoor and marine environments.

🚜 Versatile Pulling

Specifically engineered for horizontal applications such as moving vehicles, trailering boats, dragging logs, and other heavy rolling loads.

Comparison: Ratchet Winch vs. Brake Winch

Feature	Ratchet Winch (HW-B)	Brake Winch (HW-A / HW-E)
Primary Use	Pulling (Horizontal)	Lifting (Vertical)
Mechanism	Ratchet Pawl (Clicking)	Friction Disc Brake (Silent)
Free-Spool?	Yes (Fast payout)	No (Safe lifting only)
Load Holding	Only when pawl engaged	Automatic (Always locked)
Safety Risk	Handle can spin if released	Handle stops instantly

⚠️ SAFETY WARNING: DO NOT USE FOR LIFTING

For lifting applications (vertical hoisting), such as lifting a keel or chandelier, DO NOT use this HW-B winch. You must use the HW-A or HW-E Brake Winch series which feature automatic safety brakes. The HW-B series is designed strictly for boat trailers and horizontal pulling.

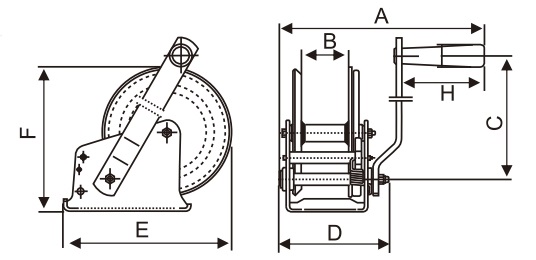

Technical Specifications

Model	Capacity (lbs)	Proof Load (kN)	Gear Ratio	Speed	Dimensions (mm)							N.W. (kg)	Product Code
Model	Capacity (lbs)	Proof Load (kN)	Gear Ratio	Speed	A	B	C	D	E	F	H	N.W. (kg)	Product Code
HWB0600	600	4	2.9:1	1	228	51	180	119	165	138	91	2.4	420500600
HWB0800	800	5.4	3.7:1	1	228	51	180	119	165	138	91	2.5	420500800
HWB1000	1000	6.7	4.2:1	1	228	51	180	119	184	156	91	2.8	420501000
HWB1200	1200	8	4.2:1	1	228	51	180	119	184	156	91	2.8	420501200
HWB1400	1400	9.4	4.2:1	1	228	51	180	119	184	156	91	2.8	420501400
HWB2000	2000	13.4	10.35:1 / 4.5:1	2	281	65	251	174	250	182	91	5.9	420502000
HWB2500	2500	16.7	11.5:1 / 5:1	2	281	65	251	174	256	191	91	6.4	420502500

✅ ALWAYS

Store and handle winches correctly.
Inspect the winch, rope, and accessories before use and before placing into storage.
Ensure mounting and suspension points are secure and suitable for the full loads that will be imposed.
Lift the load just clear, then halt for a short period to ensure the integrity of the brake or sustaining mechanism before completing the lift.
Use a speed appropriate to the specific application.
Keep hands and feet clear of ropes, drums, and moving parts.

❌ NEVER

Raise loads by revolving the drum in the opposite direction to that indicated.
Use winches with loose or insecure handles.
Use the pawl to arrest descending loads.
Use winches if the rope is twisted or trapped.
Overwind the rope on or off the drum.
Use winches for man-riding applications unless they are specifically designed and certified for that purpose.

⚙️ Selecting the Correct Winch

Winches are available for manual or power operation in a range of capacities, designs, and mounting arrangements. Plan the lift by taking any statutory requirements and the following into account:

Type of Winch: Manual, electric, pneumatic, or other operation.
Mounting: Wall, floor, lorry/vehicle, etc.
Capacity: Required load limit and rope drum storage.
Speeds & Control: Single speed, dual speed, push button, pull cord, lever, remote, etc.
Rigging Arrangement: Diverters, pulley blocks, anchorage, suspension points, and imposed loads.

Note: Consult the supplier if the winch is to be used in high-risk areas, exposed to elements (water, steam), hazardous substances (acids, chemicals), or extremes of temperature.

📦 Storing and Handling

Condition: Never return damaged winches or ropes to storage. They should be dry, clean, and protected from corrosion.
Temporary Applications: Remove the rope for separate storage or wind it fully onto the drum and lash in position to prevent damage.
Left In-Situ: Remove pulleys and wind the rope fully onto the drum. If not possible, position pulleys to protect them from damage and ensure they present no danger to personnel. Isolate any power supply.

🛡️ Safe Operating Procedures

Pre-Check: Do not use defective winches, ropes, or pulleys. Check that mounting/suspension points are secure. Do not use timber bearers.
Rigging: Ensure sheaves are correct for the size and type of rope, fleet angles are not too great, the rope is not twisted, and the load is free to move. Check operating handles are secure.
Test Lift: Raise the load just clear and halt the lift to ensure the integrity of the brake and slinging arrangement.
Speed Control: With manual winches, use only the slow speed to raise/lower loads. With power winches, select a speed appropriate to the operation.
Brakes: Ensure oil, water, or foreign matter does not contact lined brakes.
Direction: If the direction of rotation is indicated, the winch must raise the load when turning in that direction.
Clearance: Check rope and load travel paths are clear. Maintain a clear view to avoid accidents.
Drum Rules: Do not overwind the rope on or off the drum. Two turns must always remain on the drum (unless manufacturer specifies more).
Body Safety: Keep fingers, toes, and clothing clear of ropes, pulleys, drums, and other moving parts.

⚠️ In-service Inspection and Maintenance

Follow the specific maintenance instructions issued by the supplier. These should be incorporated into the site maintenance program. Regularly inspect the winch and, in the event of the following defects, refer the winch to a Competent Person for thorough examination:

Insecure mounting or loose/missing bolts.
Distorted winch frame.
Chipped or cracked rope drum flanges.
Loose or pulled rope anchorage.
Worn ratchet, pawl, or slipping brake.
Rope worn, winding incorrectly, or broken wires.
Gears worn or not positively locating.
Any other visible damage, corrosion, or operational faults.

A hand winch is a manually operated mechanical device designed for lifting, pulling, and hoisting heavy loads. It consists of a drum (spool), a handle, and a gear mechanism. Turning the handle engages the gears to wind or unwind a wire rope, allowing the user to manipulate heavy objects with mechanical advantage.

⚙️ Manual Operation

Relies entirely on human effort. The operator turns the handle to wind the cable in or out, making it independent of electricity or fuel sources.

🧳 Portability

Compact and lightweight designs make them easy to transport and install in remote locations where powered equipment is not practical.

⚖️ Weight Capacity

Available in a wide range of sizes, from small models for light pulls (a few hundred kg) to heavy-duty industrial models capable of handling several tons.

🔒 Safety Mechanisms

Many models feature locking mechanisms (such as pawls or automatic friction brakes) to prevent unintentional cable release and maintain load stability.

🎯 Controlled Operation

Offers precise control, allowing the operator to stop, start, and adjust the lifting or pulling speed instantly as required by the task.

Hand winches are essential tools across construction, marine, automotive, and recreational industries. Common uses include:

Pulling or lifting boats onto trailers.
Hoisting loads onto elevated platforms.
Tensioning wire ropes and cables.
Securing heavy machinery during transport.
Assisting in off-road vehicle recovery.

Summary: Hand winches provide a reliable, hands-on solution for moving heavy objects, especially valuable in situations without access to electric power or where precise, manual control is required.
