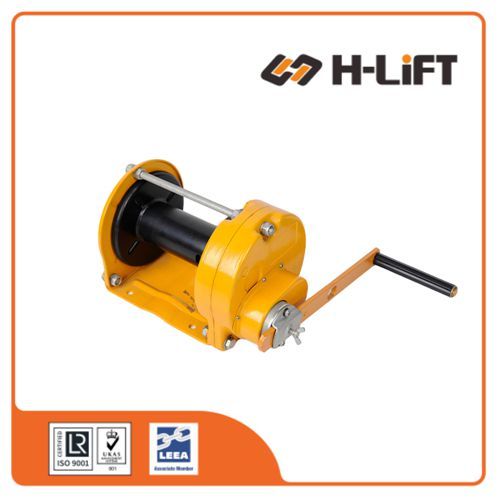

The H-Lift HW-D Type Hand Winch features a durable spur gear design for reliable lifting and pulling applications. Its compact construction and user-friendly operation make it ideal for both indoor and outdoor environments, providing dependable manual lifting power for construction, maintenance, and industrial tasks.

Durable spur gear mechanism for efficient operation
Compact and portable design for versatility
Suitable for indoor and outdoor applications
Easy-to-use manual operation with reliable performance
Ideal for lifting, pulling, and positioning tasks

Technical Data
Safe Use of Winches
What is a hand winch ?

The HW-D Series is a premium, heavy-duty hand winch featuring an enclosed box-frame design and a reliable load pressure brake. Unlike standard ratcheting winches, the brake automatically locks the load the moment the handle is released, making it the safe choice for vertical lifting and precise positioning tasks.

🛑 Automatic Safety Brake

Features a load pressure brake mechanism. It automatically holds the load in position when the handle is released, preventing accidental free-wheeling.

🏗️ Robust Construction

Built with a reinforced steel box frame and high-quality spur gears, specifically engineered to withstand heavy-duty industrial usage.

⚙️ High Efficiency

Precision gearing (up to 12.6:1 ratio on the 1000kg model) allows operators to lift heavy loads with manageable hand effort.

🎯 Versatile Application

Ideal for tasks requiring precise control, such as positioning equipment, lifting boat keels, or raising industrial shutters.

Selection Guide: HW-D vs. HW-A

HW-D (This Product)

Capacity: 300kg - 1000kg
Design: Compact, heavy-duty box frame.
Best For: Industrial lifting where a robust, enclosed gear feel is required.

HW-A (Standard Type)

Capacity: 150kg - 2000kg
Design: Standard open frame.
Best For: General purpose lifting with a wider range of size options.

Pro Tip: For lifting loads vertically, never use a standard boat trailer winch (freewheeling type). Always choose a Brake Winch like the HW-D series to prevent accidents.

Technical Specifications

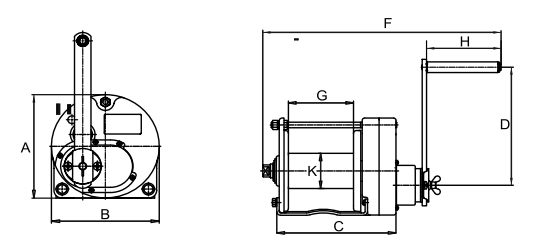

Model	Capacity (kg)	Proof Load (kN)	Gear Ratio	Dimensions (mm)								N.W. (kg)	Product Code
Model	Capacity (kg)	Proof Load (kN)	Gear Ratio	A	B	C	D	F	G	H	K	N.W. (kg)	Product Code
HWD003	300	4.41	6.25:1	210.5	210	232	250	479	120	150	60.5	13.5	420600300
HWD005	500	7.35	8.9:1	210.5	210	247	250	494	135	150	76.2	15	420600500
HWD010	1000	14.7	12.6:1	210.5	210	282	300	529	170	150	76.2	16	420601000

✅ ALWAYS

Store and handle winches correctly.
Inspect the winch, rope, and accessories before use and before placing into storage.
Ensure mounting and suspension points are secure and suitable for the full loads that will be imposed.
Lift the load just clear, then halt for a short period to ensure the integrity of the brake or sustaining mechanism before completing the lift.
Use a speed appropriate to the specific application.
Keep hands and feet clear of ropes, drums, and moving parts.

❌ NEVER

Raise loads by revolving the drum in the opposite direction to that indicated.
Use winches with loose or insecure handles.
Use the pawl to arrest descending loads.
Use winches if the rope is twisted or trapped.
Overwind the rope on or off the drum.
Use winches for man-riding applications unless they are specifically designed and certified for that purpose.

⚙️ Selecting the Correct Winch

Winches are available for manual or power operation in a range of capacities, designs, and mounting arrangements. Plan the lift by taking any statutory requirements and the following into account:

Type of Winch: Manual, electric, pneumatic, or other operation.
Mounting: Wall, floor, lorry/vehicle, etc.
Capacity: Required load limit and rope drum storage.
Speeds & Control: Single speed, dual speed, push button, pull cord, lever, remote, etc.
Rigging Arrangement: Diverters, pulley blocks, anchorage, suspension points, and imposed loads.

Note: Consult the supplier if the winch is to be used in high-risk areas, exposed to elements (water, steam), hazardous substances (acids, chemicals), or extremes of temperature.

📦 Storing and Handling

Condition: Never return damaged winches or ropes to storage. They should be dry, clean, and protected from corrosion.
Temporary Applications: Remove the rope for separate storage or wind it fully onto the drum and lash in position to prevent damage.
Left In-Situ: Remove pulleys and wind the rope fully onto the drum. If not possible, position pulleys to protect them from damage and ensure they present no danger to personnel. Isolate any power supply.

🛡️ Safe Operating Procedures

Pre-Check: Do not use defective winches, ropes, or pulleys. Check that mounting/suspension points are secure. Do not use timber bearers.
Rigging: Ensure sheaves are correct for the size and type of rope, fleet angles are not too great, the rope is not twisted, and the load is free to move. Check operating handles are secure.
Test Lift: Raise the load just clear and halt the lift to ensure the integrity of the brake and slinging arrangement.
Speed Control: With manual winches, use only the slow speed to raise/lower loads. With power winches, select a speed appropriate to the operation.
Brakes: Ensure oil, water, or foreign matter does not contact lined brakes.
Direction: If the direction of rotation is indicated, the winch must raise the load when turning in that direction.
Clearance: Check rope and load travel paths are clear. Maintain a clear view to avoid accidents.
Drum Rules: Do not overwind the rope on or off the drum. Two turns must always remain on the drum (unless manufacturer specifies more).
Body Safety: Keep fingers, toes, and clothing clear of ropes, pulleys, drums, and other moving parts.

⚠️ In-service Inspection and Maintenance

Follow the specific maintenance instructions issued by the supplier. These should be incorporated into the site maintenance program. Regularly inspect the winch and, in the event of the following defects, refer the winch to a Competent Person for thorough examination:

Insecure mounting or loose/missing bolts.
Distorted winch frame.
Chipped or cracked rope drum flanges.
Loose or pulled rope anchorage.
Worn ratchet, pawl, or slipping brake.
Rope worn, winding incorrectly, or broken wires.
Gears worn or not positively locating.
Any other visible damage, corrosion, or operational faults.

A hand winch is a manually operated mechanical device designed for lifting, pulling, and hoisting heavy loads. It consists of a drum (spool), a handle, and a gear mechanism. Turning the handle engages the gears to wind or unwind a wire rope, allowing the user to manipulate heavy objects with mechanical advantage.

⚙️ Manual Operation

Relies entirely on human effort. The operator turns the handle to wind the cable in or out, making it independent of electricity or fuel sources.

🧳 Portability

Compact and lightweight designs make them easy to transport and install in remote locations where powered equipment is not practical.

⚖️ Weight Capacity

Available in a wide range of sizes, from small models for light pulls (a few hundred kg) to heavy-duty industrial models capable of handling several tons.

🔒 Safety Mechanisms

Many models feature locking mechanisms (such as pawls or automatic friction brakes) to prevent unintentional cable release and maintain load stability.

🎯 Controlled Operation

Offers precise control, allowing the operator to stop, start, and adjust the lifting or pulling speed instantly as required by the task.

Hand winches are essential tools across construction, marine, automotive, and recreational industries. Common uses include:

Pulling or lifting boats onto trailers.
Hoisting loads onto elevated platforms.
Tensioning wire ropes and cables.
Securing heavy machinery during transport.
Assisting in off-road vehicle recovery.

Summary: Hand winches provide a reliable, hands-on solution for moving heavy objects, especially valuable in situations without access to electric power or where precise, manual control is required.
