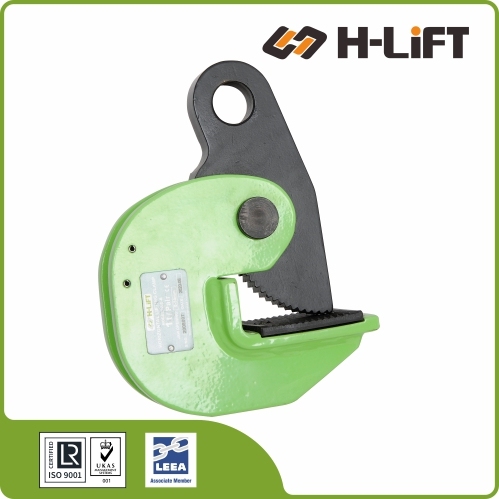

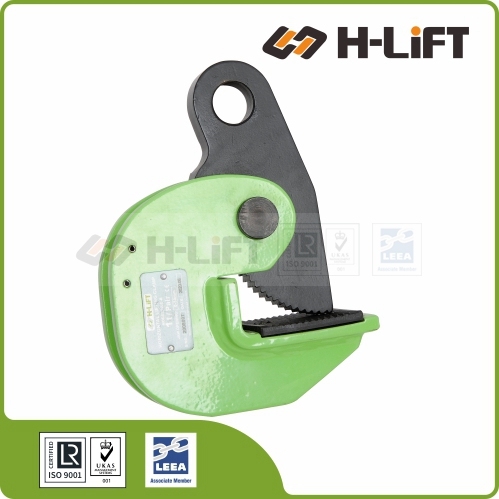

The H-Lift HLC-B (LHC-B) Type Horizontal Lifting Clamp is a specialized, lightweight handling device engineered specifically for the safe and efficient horizontal transportation of steel plates.

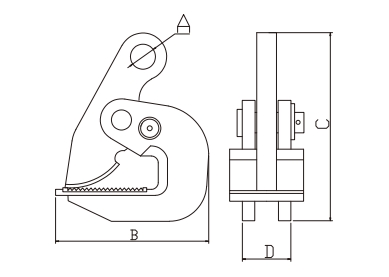

| Item No. | Capacity (Per Pair) | Jaw Opening | Dimensions (mm) | Net Weight | Product Code | |||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||
| (t) | (mm) | - | - | - | - | (kg/pc) | ||
| HLCB008A | 0.8 | 0 - 25 | 22 | 125 | 165 | 40 | 2.5 | 160300800 |
| HLCB010A | 1.0 | 0 - 30 | 25 | 148 | 205 | 40 | 3.5 | 160301000 |
| HLCB016A | 1.6 | 0 - 30 | 30 | 148 | 205 | 45 | 4.0 | 160301600 |
| HLCB020A | 2.0 | 0 - 40 | 30 | 172 | 245 | 47 | 5.0 | 160302000 |
| HLCB032A | 3.2 | 0 - 45 | 30 | 180 | 245 | 50 | 6.0 | 160303200 |
| HLCB040A | 4.0 | 0 - 50 | 30 | 170 | 260 | 52 | 6.5 | 160304000 |
| HLCB050A | 5.0 | 0 - 55 | 30 | 180 | 260 | 56 | 7.5 | 160305000 |
| HLCB060A | 6.0 | 0 - 65 | 37 | 210 | 308 | 62 | 10.5 | 160306001 |
| HLCB060B | 6.0 | 0 - 130 | 37 | 316 | 310 | 62 | 22.0 | 160306002 |
| HLCB080A | 8.0 | 0 - 100 | 55 | 282 | 400 | 65 | 22.0 | 160308000 |
| HLCB100A | 10.0 | 0 - 125 | 55 | 325 | 500 | 75 | 33.0 | 160310000 |
Lifting clamps utilize various mechanisms (lever, cam, roller, or screw) to provide a friction grip on the plate. When selecting a clamp, consider:
IMPORTANT: Minimum Load Requirement
Some clamps (especially cam action types) rely on a minimum load to engage the gripping force safely. Unless specified otherwise by the manufacturer:
• The load should not be less than 20% of the Safe Working Load (SWL).
• The plate thickness should not be less than 20% of the maximum jaw opening.
Do not use defective clamps. Place the clamp over the load center. If the plate is long and tends to bend, use two clamps with a spreader beam to prevent the clamps from twisting. Keep oil, grease, and contaminants away from the gripping jaws.
Regularly inspect for:
