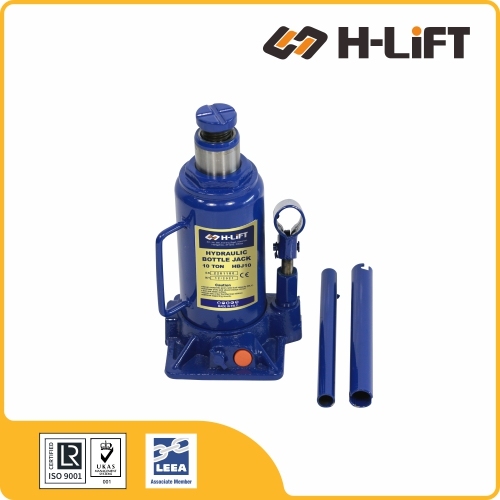

Name: Hydraulic Bottle Jack European type BJE type
Brand: H-Lift Industries Co Ltd
SKU: 809001
Availability: InStock
Rating: 5 (1 reviews)

No.809001

The H-Lift BJE Hydraulic Bottle Jack is a high-performance lifting device engineered for environments where safety and reliability are paramount. Designed with a focus on stability and overload protection, this jack provides a secure lifting solution for heavy machinery and vehicles, ensuring consistent performance even in demanding industrial applications.

Complies with rigorous European safety standards (CE certified)
Built-in safety overload valve prevents overloading for enhanced user safety
Wide range of lifting capacities available from 2 tons up to 50 tons
Heat-treated serrated saddle provides a secure, non-slip lifting point
Heavy-duty steel base ensures maximum stability under load

Technical Data
Safe Use of Jacks
Bottle Jack

Hydraulic Bottle Jack - European Type BJE (2T - 50T)

European Standard Design: Manufactured to meet strict EU Standards, ensuring high reliability, safety, and performance for professional use.
Wide Capacity Range: Available in a broad range of capacities: 2T, 3T, 5T, 8T, 10T, 12T, 15T, 20T, 30T, and 50T to suit everything from cars to heavy industrial machinery.
Safety Overload Valve: Features a built-in Safety Overload Valve that prevents the jack from being used beyond its rated capacity, protecting both the operator and the equipment.
Extension Screw: Equipped with a tough, heat-treated Extension Screw (approx. 60mm adjustment on 2T-20T models) to accommodate various pickup heights.
Effortless Operation: High-quality Glide Action Pressure Pump minimizes the manual effort required to lift heavy loads.
Compact & Stable: Designed with a Wide Base for improved stability and a Two-Piece Pump Handle for easy operation in confined spaces and convenient storage.
Durable Construction: Built with a rugged steel housing and corrosion-resistant finish to withstand harsh working environments.

Q: What makes this a "European Type" bottle jack? A: The "European Type" designation typically indicates a robust design that complies with specific EU safety standards (often CE or GS certified). A key feature is the mandatory Safety Overload Valve, which prevents the jack from lifting loads heavier than its rated capacity.

Q: Does the 50-ton model have an adjustment screw? A: No, the 30-ton (BJE030) and 50-ton (BJE050) models are designed for extreme heavy-duty lifting and do not feature the adjustable extension screw found on the smaller models (2T-20T).

Item No.	Capacity	Min. Height	Lifting Range	Adjust Height	Max. Height	Weight	Product Code
Item No.	t	mm	mm	mm	mm	kg	Product Code
BJE002	2	158	90	60	308	2.3	809001002
BJE003	3	195	125	60	380	3	809001003
BJE005	5	197	125	60	382	4	809001005
BJE008	8	205	125	60	390	5	809001008
BJE010	10	205	125	60	390	5.5	809001010
BJE012	12	215	125	60	400	6.5	809001012
BJE015	15	225	140	60	425	7.5	809001015
BJE020	20	244	145	60	449	10.5	809001020
BJE030	30	285	180	/	465	13.5	809001030
BJE050	50	300	180	/	480	30	809001050

Selecting the Correct Jack

Jacks may be hydraulic or mechanical in operation and are available in a wide range of capacities and designs. Proper selection is critical for safety.

Key Considerations:

Type: Hydraulic, ratchet, screw, or journal jack.
Dimensions: Capacity, closed height, lifting height, and overall dimensions.
Accessories: Toe/claw attachments, screwed ram with locking collar, calibrated gauges for load measurement.
Support: Packing materials needed during jacking and to support the load once raised.

Safety Guidelines

Always

Store and handle jacks correctly.
Inspect jacks before use and before placing into storage.
Ensure the surface is level, even, and capable of taking the imposed load.
Ensure the jack is positioned so the load is applied in the correct plane.
Use packing capable of withstanding loads without crushing.
Lift and lower in small stages using support packing to minimize load falls.

Never

Never obliquely load (side load) jacks.
Never raise the load higher than necessary.
Never over-extend the jack beyond its rated stroke.
Never leave a load supported solely on jacks (use stands/packing).
Never reach under a load supported by jacks.
Never work or climb on a load supported by jacks.

Operation & Maintenance

Using Jacks Safely

Multiple Jacks: Most operations require multiple jacks. It is impossible to raise/lower them in perfect unison, causing uneven loading. Ensure jack capacity is adequate to handle load transfer. Keep the load level.

Floor Stability: Ensure the floor can withstand the point load. Use floor plates to spread the load if necessary. Avoid buried cables or pipes.

Contact: The jack head must be in full, firm contact with the jacking point. Use packers to prevent slipping.

Storage & Handling

Store jacks upright with the ram/rack/screw fully lowered to protect them from damage. Remove handles/levers and store separately. Never store damaged jacks.

In-service Inspection

Clean jacks regularly to remove dirt from racks, screws, and seals. Check hydraulic oil levels. Lubricate moving mechanical parts.

Defects to Watch For:

Failure to lift or lower; load slipping/creeping.
Cracked or distorted body/base.
Bent operating levers.
Hydraulic: Oil leaks, scored/distorted rams, inoperative release valves.
Mechanical: Chipped/worn rack teeth or screws, seized swivel heads.

⚠️ WARNING: Excessive grease on ratchet jacks can cause the holding pawl to stick, potentially dropping the load.

Hydraulic Bottle Jack Guide

Uses, Operation Steps, and Safety Precautions

What is a Hydraulic Bottle Jack?

A Hydraulic Bottle Jack is a compact, heavy-duty lifting device that uses hydraulic pressure to lift heavy loads. Resembling the shape of a bottle, it consists of a vertical cylinder, a base, and a pumping mechanism.

Known for their high lifting capacity relative to their size, bottle jacks are capable of lifting loads ranging from 2 tons to over 50 tons, making them far more powerful than standard mechanical scissor jacks.

Common Applications

Automotive Repair

Lifting trucks, SUVs, and heavy vehicles for tire changes or axle repairs. (Note: Often too tall for low-profile sports cars).

Construction & Industrial

Supporting beams, lifting heavy machinery, or pressing bearings. Often used in construction for leveling structures.

Emergency Rescue

Used by fire and rescue teams for spreading or lifting debris in confined spaces due to their portability.

How to Use a Bottle Jack

Before You Start: Bleeding Air

New jacks may have trapped air. To purge it: Open the release valve, pump the handle 10 times, then close the valve. This ensures full lifting power.

Lifting a Load

Secure the Vehicle/Load: Park on a hard, level surface. Apply the parking brake and chock the wheels.
Position the Jack: Place the jack under the manufacturer-recommended lifting point (e.g., axle or frame rail).
Adjust Screw Top: If the jack has an extension screw, unscrew it by hand until the saddle nearly touches the load.
Pump to Lift: Close the release valve (turn clockwise). Insert the handle and pump up and down until the load reaches the desired height.
Support with Stands: Immediately place Jack Stands under the load. Lower the jack slightly until the load rests securely on the stands.

Lowering a Load

Lift Off Stands: Pump the jack to lift the load slightly off the jack stands.
Remove Stands: Carefully remove the jack stands from underneath.
Release Pressure: Slowly turn the release valve counter-clockwise. The load will descend. (Turning too fast can cause a dangerous crash).
Retract: Once fully lowered, push the piston down manually if needed to store.

Safety Precautions

⚠ CRITICAL SAFETY WARNING

NEVER work under a load supported only by a jack. Hydraulic seals can fail without warning. Always use rated Jack Stands to support the load before going underneath.

Hard Surface Only: Use only on concrete or asphalt. On dirt or grass, the jack can sink or tip over.
Check Capacity: Never exceed the Rated Capacity (e.g., do not lift a 10-ton load with a 4-ton jack).
Center the Load: Ensure the load is centered on the jack saddle. Off-center loading can bend the ram or damage seals.
Store Upright: Always store the jack in an upright position to prevent hydraulic oil leaks and keep seals lubricated.
