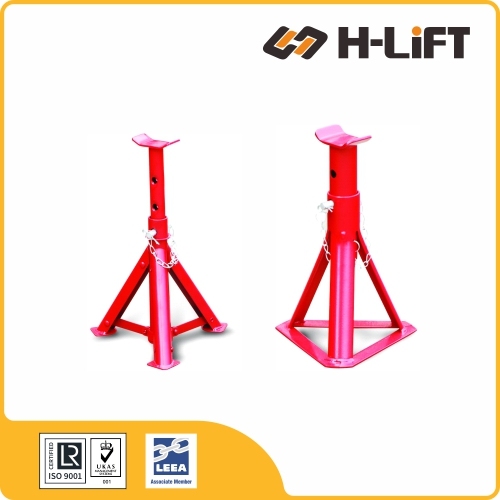

The H-Lift Jack Stand JSC Type is a welded steel support tower designed to safely hold vehicles elevated by jacks during maintenance and repair work.
The JSC Type Jack Stand features a secure pin-type locking mechanism for maximum safety. Rated for a 2-tonne Safe Working Load (per pair), it offers stable support for passenger cars and light vehicles during maintenance. The adjustable height and sturdy welded steel construction ensure reliability in any garage.
Features a heavy-duty load pin with safety chain. This positive locking mechanism ensures the stand remains locked at the desired height and prevents accidental release.
Rated for a Safe Working Load (SWL) of 2 Tonnes per pair (1 Tonne per stand). Perfectly suited for lifting and supporting standard passenger vehicles.
Offers 3 height positions ranging from approximately 270mm to 370mm, providing versatile clearance options for various maintenance tasks.
Designed with a wide, robust base and sturdy welded steel construction to provide maximum stability and prevent tipping while supporting elevated vehicles.
| Model | Capacity (t) |
Min. Height (mm) |
Lifting Height (mm) |
Max. Height (mm) |
Weight/pair (kg) |
Product Code |
|---|---|---|---|---|---|---|
| JSC-020 | 2 | 275 | 95 | 365 | 3 | 811003020 |
| JSC-120 | 2 | 270 | 100 | 370 | 3.2 | 811003120 |
Jacks may be hydraulic or mechanical in operation and are available in a wide range of capacities and designs. Proper selection is critical for safety.
Multiple Jacks: Most operations require multiple jacks. It is impossible to raise/lower them in perfect unison, causing uneven loading. Ensure jack capacity is adequate to handle load transfer. Keep the load level.
Floor Stability: Ensure the floor can withstand the point load. Use floor plates to spread the load if necessary. Avoid buried cables or pipes.
Contact: The jack head must be in full, firm contact with the jacking point. Use packers to prevent slipping.
Store jacks upright with the ram/rack/screw fully lowered to protect them from damage. Remove handles/levers and store separately. Never store damaged jacks.
Clean jacks regularly to remove dirt from racks, screws, and seals. Check hydraulic oil levels. Lubricate moving mechanical parts.
Defects to Watch For:
Jack stands are critical safety tools designed to support vehicles or heavy loads after they have been lifted by a hydraulic jack. Unlike jacks, which are for lifting, stands provide a rigid, static support platform to ensure the load remains secure during maintenance.
Common Applications:
Essential for preventing accidental lowering. Common types include Ratchet (Pawl) Locks for quick adjustment or Pin Locks for heavy-duty, double-shear security.
Features a central ductile iron column with teeth or pin holes, allowing users to extend the stand to the precise height required to reach vehicle lifting points.
Typically features a wide tripod or quadripod base with welded foot pads to resist sinking into asphalt and provide maximum stability on various surfaces.
Constructed from high-grade steel with a stamped or welded frame to ensure structural integrity and high load-bearing capacity.
To ensure a secure working environment:
Proper Operation: Lift the vehicle with a jack, place stands, and slowly lower the vehicle onto the stands before beginning work.
Maintenance:
| Capacity (Per Pair) | Min. Height | Max. Height | Locking Style |
|---|---|---|---|
| 2 Ton | 260 mm | 420 mm | Ratchet / Pin |
| 3 Ton | 280 mm | 430 mm | Ratchet |
| 6 Ton | 390 mm | 600 mm | Ratchet |
| 12 Ton (Heavy Duty) | 460 mm | 710 mm | Pin / Screw |
