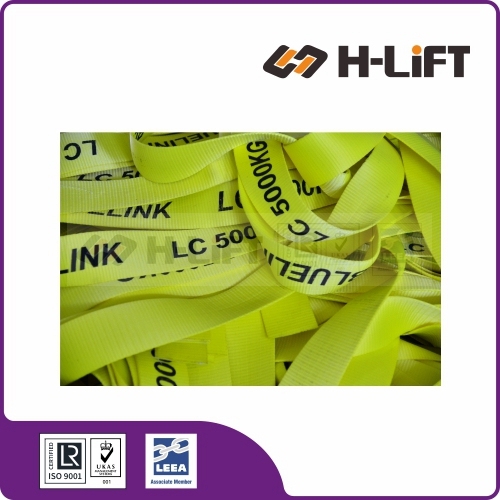

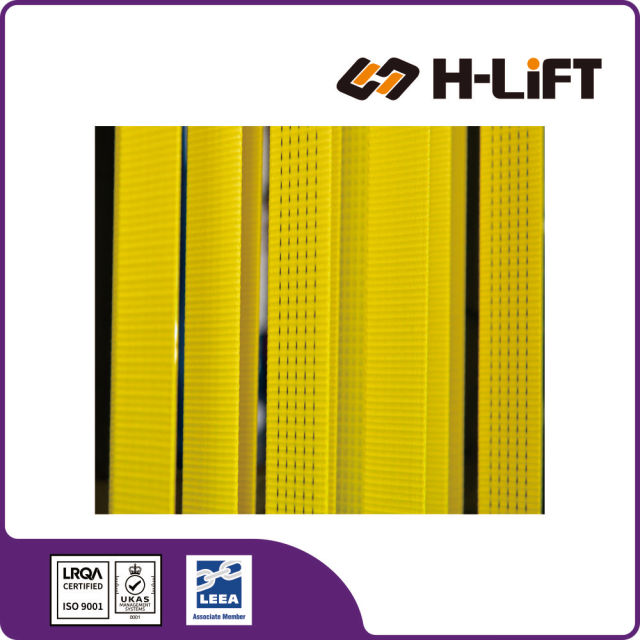

H-Lift Lashing Webbing (Tie-down Webbing) is a robust, high-strength synthetic tape specifically manufactured from premium polyester fibers for heavy-duty cargo securing and transportation applications.
| Product Type | Primary Application | Safety Factor | Key Feature |
|---|---|---|---|
| Lashing Webbing Current Item |
Cargo Securing (Ratchet Straps) |
2:1 or 3:1 | Low Elongation (Keeps cargo tight) |
| Sling Webbing Lifting |
Overhead Lifting (Web Slings) |
5:1, 7:1, or 8:1 | High Safety Margin (Shock absorption) |
| Item No. | Width (mm) | For Lashing Strap LC (daN) | Webbing Breaking Strength (daN) | Product Code |
|---|---|---|---|---|
| LB0.8T2F | 25 | 400 | 1,000 | 306100802 |
| LB0.8T3F | 25 | 400 | 1,200 | 306100803 |
| LB1.0T2F | 25 | 500 | 1,250 | 306101002 |
| LB1.0T3F | 25 | 500 | 1,500 | 306101003 |
| LB1.5T2F | 25 | 750 | 1,875 | 306101502 |
| LB1.5T3F | 25 | 750 | 2,250 | 306101503 |
| LB2.0T2F | 35 | 1,000 | 2,500 | 306102002 |
| LB2.0T3F | 35 | 1,000 | 3,000 | 306102003 |
| LB2.5T2F | 35 | 1,250 | 3,125 | 306102502 |
| LB2.5T3F | 35 | 1,250 | 3,750 | 306102503 |
| LB3.0T2F | 35 | 1,500 | 3,750 | 306103002 |
| LB3.0T3F | 35 | 1,500 | 4,500 | 306103003 |
| LB4.0T2F | 50 | 2,000 | 5,000 | 306104002 |
| LB4.0T3F | 50 | 2,000 | 6,000 | 306104003 |
| LB5.0T2F | 50 | 2,500 | 6,250 | 306105002 |
| LB5.0T3F | 50 | 2,500 | 7,500 | 306105003 |
| LB10T2F | 75 | 5,000 | 12,500 | 306110002 |
| LB10T3F | 75 | 5,000 | 15,000 | 306110003 |
This webbing is engineered for cargo lashing applications with low elongation properties. It does not possess the shock-absorption or safety factors required for overhead lifting. Use only Sling Webbing for manufacturing lifting slings.
Polyester lashing webbing is a type of synthetic webbing material typically made from high-strength polyester fibers. This webbing is specifically designed for use in cargo securing and transportation applications, including securing loads on trucks, trailers, flatbeds, and other types of vehicles.
It offers several advantages for cargo restraint, including superior strength, durability, and resistance to environmental factors.
When using polyester lashing webbing, it is crucial to follow proper load securement techniques:
This product is Lashing Webbing designed for cargo securement (tie-down) only. It must NEVER be used for overhead lifting applications. For lifting, please select certified Lifting Sling Webbing.
