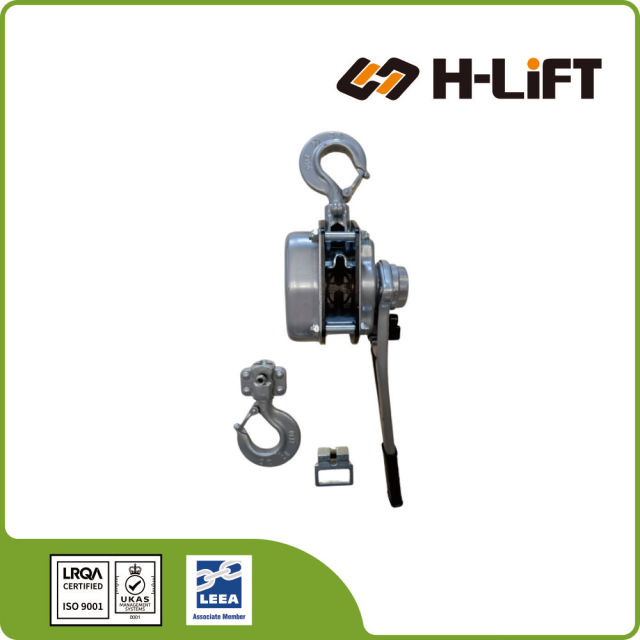

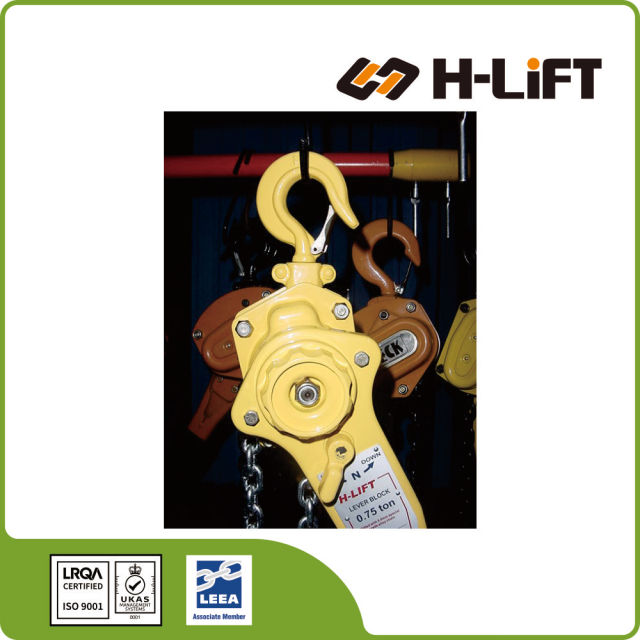

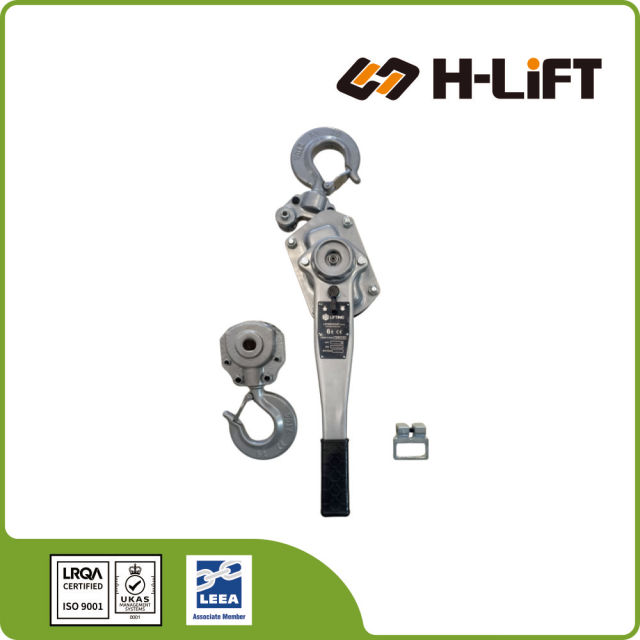

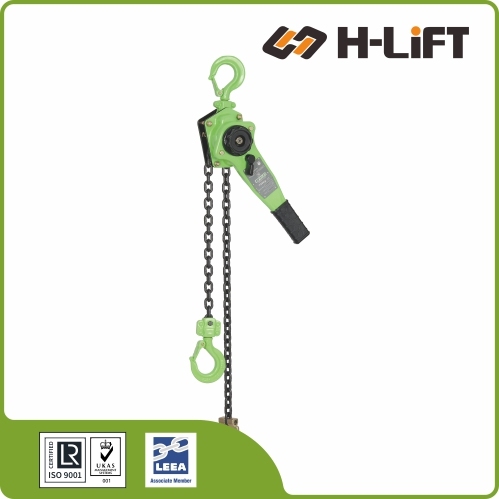

The H-Lift LH-A Lever Hoist is a multi-purpose manual tool engineered for heavy-duty lifting, tensioning, and lashing applications. Its versatile design allows for operation at any angle, making it an essential device for securing loads in transport or positioning equipment in construction and mining environments where power sources are unavailable.

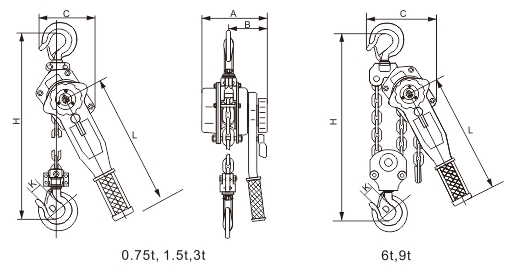

| Item No. | Capacity | Std. Lift | Proof Load | Effort | Falls | Chain Size | Dimensions (mm) | N.W. | Extra/m | Product Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | H min | L | K | (kg) | (kg) | ||||||||
| (t) | (m) | (kN) | (N) | - | (mm) | - | - | - | - | - | - | - | - | - | ||
| LHA075 | 0.75 | 1.5 | 11.0 | 140 | 1 | 6 x 18 | 148 | 88 | 135 | 37 | 320 | 290 | 26 | 6.3 | 0.8 | 120100750 |
| LHA150 | 1.5 | 1.5 | 22.1 | 240 | 1 | 8 x 24 | 176 | 102 | 162 | 45 | 380 | 420 | 32.5 | 11.0 | 1.4 | 120101500 |
| LHA300 | 3.0 | 1.5 | 44.1 | 320 | 1 | 10 x 30 | 195 | 109 | 211 | 50 | 480 | 420 | 37 | 18.7 | 2.2 | 120103000 |
| LHA600 | 6.0 | 1.5 | 88.2 | 340 | 2 | 10 x 30 | 195 | 109 | 254 | 64 | 620 | 420 | 46 | 30.0 | 4.3 | 120106000 |
| LHA900 | 9.0 | 1.5 | 132.3 | 360 | 3 | 10 x 30 | 195 | 109 | 319 | 85 | 700 | 420 | 50 | 41.2 | 6.5 | 120109000 |
*Remarks: Hoists with lifts in other lengths are available upon request.
A lever hoist, also known as a lever block or ratchet lever hoist, is a portable mechanical device used to lift, lower, or pull heavy loads. Unlike electric hoists, it is manually operated by a lever handle that actuates a ratchet and pawl mechanism. This allows for precise movement in small increments.
Commonly used in construction, mining, and industrial maintenance, lever hoists are versatile tools capable of operating horizontally (for pulling/tensioning) as well as vertically (for lifting).
Select a hoist based on the capacity and range of lift required. Lever hoists can use either link chain or roller chain. Ensure the hoist is suitable for the environment (e.g., consider corrosion protection for outdoor or marine use).
Never return a damaged hoist to storage. Store hoists hanging up to keep chains off the ground. Keep them clean, dry, and protected from corrosion.
The chain and hook are designed for ambient temperatures between -10°C and +50°C. The Seller shall not be liable for brittle fractures occurring in extreme cold (below -10°C) or acidic environments with hydrogen embrittlement risks.
The product must be operated strictly in accordance with EN 13157. Tip loading or side hooking is strictly prohibited. Any fatigue cracks or fractures caused by off-center loading shall be deemed improper use and are excluded from the warranty.
Regularly inspect for wear, damage to hooks/fittings, and distortion. Check the chain for nicks, gouges, or stretching. Keep load chains lubricated and free of debris. If the chain jumps, the load slips, or the lever is bent, remove the hoist from service immediately.
