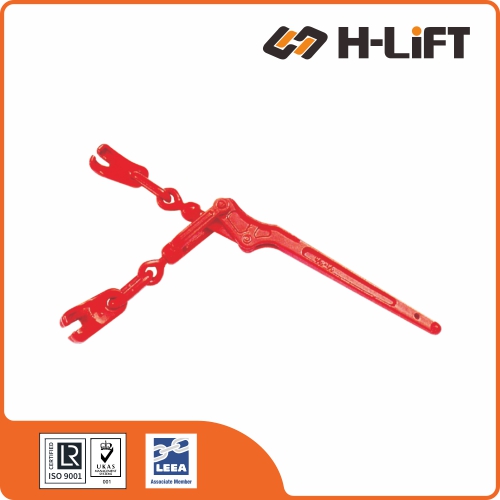

The Lever-Type Load Binder with Claw Hook is a heavy-duty manual chain tensioning device engineered to secure Grade 70 or similar transport chains, ensuring maximum cargo stability on trucks, trailers, and flatbeds during road transportation.
When selecting a load binder, the type of hook determines how you connect to your chain or anchor points.
When pairing a Load Binder with a Chain, the Working Load Limit (WLL) of the entire assembly is determined by the weakest component ("The Weakest Link Rule").
| Feature | Lever Binder (Snap Binder) | Ratchet Binder |
|---|---|---|
| Speed | Faster to install and release | Slower, precise adjustment |
| Effort | Requires more physical force to close | Easier mechanical advantage |
| Maintenance | Simple, fewer moving parts | Requires greasing/maintenance |
| Best For | Experienced operators, quick stops | Heavy loads, fine-tuning tension |

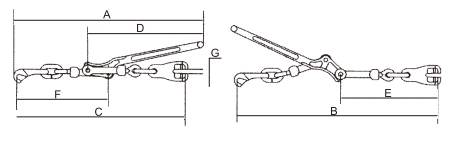

*Refer to table below for dimensions A-G
| Item No. | Chain Size (inch) |
WLL (lbs) |
Proof Load (lbs) |
MBL (lbs) |
Weight (lbs) |
Handle (inch) |
Dimensions (inch) | Product Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||||||
| LLCH08 | 1/4 - 5/16 | 2,600 | 5,200 | 7,800 | 3.6 | 11.42 | 20.66 | 18.7 | 15.35 | 11.42 | 8.85 | 8.85 | 0.35 | 411005516 |
| LLCH10 | 5/16 - 3/8 | 5,400 | 10,800 | 19,000 | 8.56 | 15.43 | 25.2 | 25.2 | 21.46 | 15.55 | 12.2 | 12.2 | 0.47 | 411005038 |
| LLCH13 | 3/8 - 1/2 | 9,200 | 18,400 | 28,000 | 12.38 | 17.24 | 28.15 | 28.7 | 24.61 | 17.52 | 13.58 | 13.58 | 0.59 | 411005012 |
