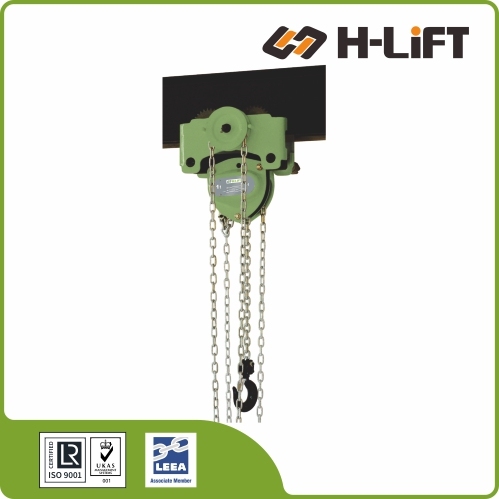

Name: Low Headroom Trolley Hoist GT-CHG type
Brand: H-Lift Industries Co Ltd
SKU: 1402
Availability: InStock
Rating: 5 (1 reviews)

No.1402

The H-Lift GT-CHG Low Headroom Trolley Hoist is an integrated lifting solution designed specifically to solve vertical clearance challenges in confined workspaces. By merging the hoist and trolley into a single unit, it provides essential lifting capabilities in low-ceiling environments—such as ship engine rooms and tight workshops—where standard equipment would be too tall to operate effectively.

Ultra-low profile design maximizes available lifting height
Geared trolley enables precise horizontal load positioning
Significant headroom reduction compared to standard hook-suspended hoists
Equipped with high-strength Grade 80 load chain (EN818-7)
Robust construction ensures reliability in demanding industrial conditions

Technical Data
Product Guide

*Visualizing the space-saving advantage of the integrated design.

Product Features

Ultra-Low Headroom Design: Specifically engineered to maximize lifting height in environments with restricted vertical clearance (low ceilings).
Integrated Construction: The hoist is mounted directly into the trolley frame, significantly reducing the "H" dimension compared to a standard hoist hooked onto a trolley.
Wide Capacity Range: Available from 0.5 Ton up to 20 Ton, suitable for heavy industrial applications.
Adjustable Beam Width: Compatible with a wide range of I-beam and H-beam flange widths (Standard Range A and Extended Range B).
Enhanced Safety: Equipped with anti-drop plates and anti-tilt devices to ensure the trolley remains securely on the beam.
Smooth Operation: Precision-machined steel wheels run on sealed ball bearings for minimal traversing effort.
Versatile Application: Ideal for power plants, ship engine rooms, and tight workshops where every centimeter of lift counts.

Technical Specifications

H-Lift Low Headroom Trolley Hoist GT-CHG

*Refer to the diagram above to identify dimensions A, B, C, H, etc. in the table below.

Item No.	Capacity	Proof Load	Running Height	Min. Radius	Dimensions (mm)							I-Beam Width (mm)		Net Weight (kg)		Product Code
	Capacity	Proof Load	Running Height	Min. Radius	A		B	C	H	S	F	M (Std)	M (Ext)	Std	Ext
	(t)	(kN)	(m)	(m)	a	b	-	-	-	-	-	a	b	a	b
GTCHG005	0.5	7.35	3	1.6	272	322	258	385	299	30	1.5-3	50-152	50-203	19.3	20	140200500
GTCHG010	1.0	14.71	3	2.0	334	436	292	451	331	37	1.5-3	64-203	64-305	28.3	30	140201000
GTCHG015	1.5	22.06	3	2.0	337	439	319	489	383	38	1.5-3	74-203	74-305	36.0	38	140201500
GTCHG020	2.0	29.42	3	2.7	343	445	358	551	424	38	1.5-3	88-203	88-305	42.2	44.2	140202000
GTCHG030	3.0	44.13	3	3.6	356	458	434	633	486	40	1.5-3	100-203	100-305	70.5	73.5	140203000
GTCHG050	5.0	73.50	3	3.6	373	475	448	808	625	42	1.5-3	114-203	114-305	97.1	101	140205000
GTCHG100	10.0	147.00	3	2.0	423	525	640	990	780	46	1.5-3	124-203	124-305	153	159	140210000
GTCHG150	15.0	183.75	3	3.5	498	600	799	1130	930	56	1.5-3	136-203	136-305	286	291	140215000
GTCHG200	20.0	245.00	3	3.5	498	600	891	1165	965	58	1.5-3	136-203	136-305	353	361	140220000

Low Headroom Trolley Hoist

Combined Chain Hoist & Trolley (Series PT-CHG / GT-CHG)

Product Overview

The H-Lift Low Headroom Trolley Hoist is a specialized manual lifting solution designed for environments with severely restricted vertical clearance. By integrating the chain hoist directly into the trolley frame (instead of hanging it below), this "Combined" design significantly reduces the headroom requirement (Dimension "H").

This compact configuration allows operators to lift loads much closer to the beam than standard hoist-trolley combinations, maximizing the effective lifting height in low-ceiling factories, ships, and temporary structures.

Available Models

PT-CHG Series (Plain Trolley Type)

Operation: Push/Pull Travel.

Mechanism: The hoist is combined with a Plain Trolley. The operator moves the load horizontally by manually pushing or pulling the load or the hook.

✔ Best for lighter loads (up to 2-3 tons) and short travel distances.
✔ Economical and maintenance-free.

GT-CHG Series (Geared Trolley Type)

Operation: Hand Chain Driven Travel.

Mechanism: The hoist is combined with a Geared Trolley. The operator moves the load horizontally by pulling a separate hand chain, which turns the trolley wheels via gears.

✔ Essential for heavy loads (3 tons+) or precise positioning.
✔ Allows operator to stand at a safe distance while moving the trolley.

Technical Specifications

Note: Data below applies to the PT-CHG series. The dimensions for GT-CHG are similar but include the hand chain wheel assembly.

Item No.	Capacity (ton)	Proof Load (kN)	Min. Radius of Curve (m)	Dimensions (mm)		I-Beam Width Range (mm)		N.W. (kg)
Item No.	Capacity (ton)	Proof Load (kN)	Min. Radius of Curve (m)	Headroom (H)	Width (A)	Standard (a)	Optional (b)	N.W. (kg)
PTCHG005	0.5	7.35	1.6	236	286	50-152	50-203	16.1
PTCHG010	1.0	14.71	2.0	303	405	64-203	64-305	22.4
PTCHG015	1.5	22.06	2.0	310	412	74-203	74-305	32.0
PTCHG020	2.0	29.42	2.7	317	419	88-203	88-305	39.0
PTCHG030	3.0	44.13	3.6	333	435	100-203	100-305	65.6
PTCHG050	5.0	73.50	3.6	355	457	114-203	114-305	94.0
PTCHG100	10.0	147.00	2.0	378	480	124-203	124-305	147.0
PTCHG150	15.0	183.75	3.5	449	551	136-203	136-305	278.0
PTCHG200	20.0	245.00	3.5	449	551	136-203	136-305	331.0

Grade 80 Load Chain

All H-Lift Low Headroom Hoists are equipped with high-quality Grade 80 Alloy Steel Load Chain, compliant with EN 818-7 standards.

Material: Heat-treated Alloy Steel
Standard Finish: Black Oxidized (standard) or Electric Galvanized (optional for corrosion resistance)
Safety Factor: 4:1 Minimum

*Always ensure the chain is lubricated and inspected for wear or elongation before use.
