Name: Low Headroom Trolley Hoist PT-CHG type
Brand: H-Lift Industries Co Ltd
SKU: 1401
Availability: InStock
Rating: 5 (1 reviews)

No.1401

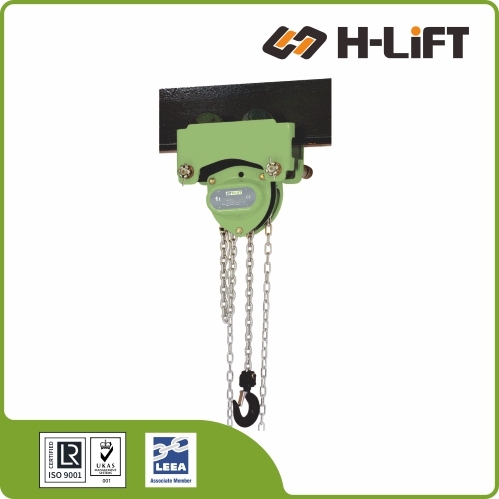

The H-Lift PT-CHG Low Headroom Trolley Hoist integrates a manual chain block directly with a plain push trolley to minimize vertical space requirements. This compact, unified design offers a superior lifting height compared to standard hook-suspended hoists, making it an essential tool for facilities with low ceilings or limited overhead clearance where maximizing lift travel is critical.

Integrated plain trolley design for ultra-low headroom lifting
Wide capacity range from 0.5 ton up to 20 tons
Adjustable width to fit various I-beam sizes (up to 305mm)
Push-travel trolley allows for easy manual load positioning
Robust construction suitable for heavy-duty industrial applications

Technical Data
Product Guide

*Comparison: The integrated design significantly reduces the "H" dimension compared to standard hoists.

Product Features

Ultra-Low Headroom Design: Specifically engineered to maximize lifting height in environments with restricted vertical clearance (low ceilings).

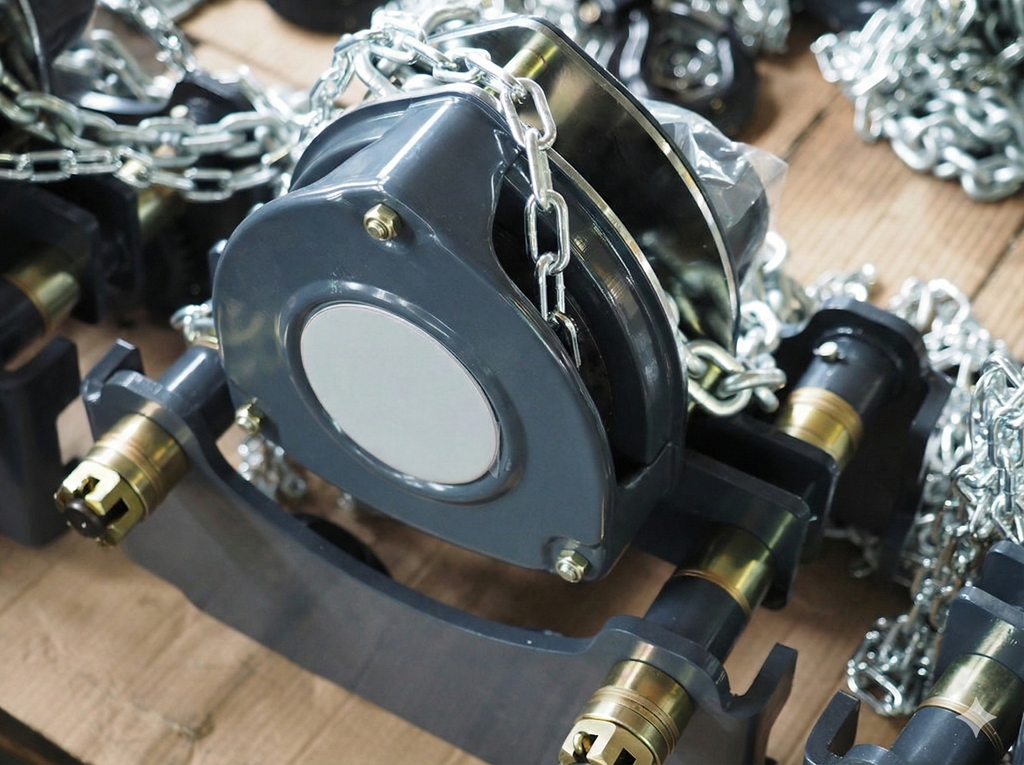

Integrated Construction: The hoist is mounted directly into the trolley frame, reducing the headroom distance (H-dim).
Wide Capacity Range: Available from 0.5 Ton up to 20 Ton, suitable for heavy industrial applications.
Adjustable Beam Width: Compatible with a wide range of I-beam and H-beam flange widths (Standard Range & Extended Range).
Enhanced Safety: Equipped with anti-drop plates and anti-tilt devices to ensure the trolley remains securely on the beam.
Smooth Operation: Precision-machined steel wheels run on sealed ball bearings for minimal traversing effort.
Versatile Application: Ideal for power plants, ship engine rooms, and tight workshops where every centimeter of lift counts.

Technical Specifications

H-Lift Low Headroom Trolley Hoist PT-CHG

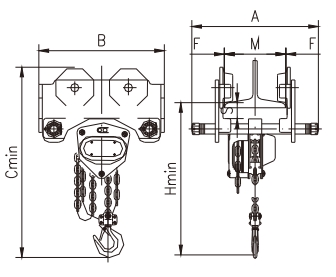

*Refer to the diagram above to identify dimensions A, B, C, H, etc. in the table below.

Item No.	Capacity	Proof Load	Running Height	Min. Radius	Dimensions (mm)							I-Beam Width (mm)		Net Weight (kg)		Product Code
	Capacity	Proof Load	Running Height	Min. Radius	A		B	C	H	S	F	M (Std)	M (Ext)	Std	Ext
	(t)	(kN)	(m)	(m)	Std	Ext	-	-	-	-	-	a	b	a	b
PTCHG005	0.5	7.35	1.5 - 3	1.6	236	286	258	385	299	30	1.5-3	50-152	50-203	16.1	16.6	140100500
PTCHG010	1.0	14.71	1.5 - 3	2.0	303	405	292	451	331	37	1.5-3	64-203	64-305	22.4	23.8	140101000
PTCHG015	1.5	22.06	1.5 - 3	2.0	310	412	319	489	383	38	1.5-3	74-203	74-305	32.0	34.0	140101500
PTCHG020	2.0	29.42	1.5 - 3	2.7	317	419	358	551	424	38	1.5-3	88-203	88-305	39.0	42.2	140102000
PTCHG030	3.0	44.13	1.5 - 3	3.6	333	435	434	633	486	40	1.5-3	100-203	100-305	65.6	69.6	140103000
PTCHG050	5.0	73.50	1.5 - 3	3.6	355	457	448	808	625	42	1.5-3	114-203	114-305	94.0	98.0	140105000
PTCHG100	10.0	147.00	1.5 - 3	2.0	378	480	640	990	780	46	1.5-3	124-203	124-305	147.0	154.0	140110000
PTCHG150	15.0	183.75	1.5 - 3	3.5	449	551	799	1130	930	56	1.5-3	136-203	136-305	278.0	285.0	140115000
PTCHG200	20.0	245.00	1.5 - 3	3.5	449	551	887	1165	965	58	1.5-3	136-203	136-305	331.0	339.0	140120000

Low Headroom Trolley Hoist

Combined Chain Hoist & Trolley (Series PT-CHG / GT-CHG)

Product Overview

The H-Lift Low Headroom Trolley Hoist is a specialized manual lifting solution designed for environments with severely restricted vertical clearance. By integrating the chain hoist directly into the trolley frame (instead of hanging it below), this "Combined" design significantly reduces the headroom requirement (Dimension "H").

This compact configuration allows operators to lift loads much closer to the beam than standard hoist-trolley combinations, maximizing the effective lifting height in low-ceiling factories, ships, and temporary structures.

Available Models

PT-CHG Series (Plain Trolley Type)

Operation: Push/Pull Travel.

Mechanism: The hoist is combined with a Plain Trolley. The operator moves the load horizontally by manually pushing or pulling the load or the hook.

✔ Best for lighter loads (up to 2-3 tons) and short travel distances.
✔ Economical and maintenance-free.

GT-CHG Series (Geared Trolley Type)

Operation: Hand Chain Driven Travel.

Mechanism: The hoist is combined with a Geared Trolley. The operator moves the load horizontally by pulling a separate hand chain, which turns the trolley wheels via gears.

✔ Essential for heavy loads (3 tons+) or precise positioning.
✔ Allows operator to stand at a safe distance while moving the trolley.

Technical Specifications

Note: Data below applies to the PT-CHG series. The dimensions for GT-CHG are similar but include the hand chain wheel assembly.

Item No.	Capacity (ton)	Proof Load (kN)	Min. Radius of Curve (m)	Dimensions (mm)		I-Beam Width Range (mm)		N.W. (kg)
Item No.	Capacity (ton)	Proof Load (kN)	Min. Radius of Curve (m)	Headroom (H)	Width (A)	Standard (a)	Optional (b)	N.W. (kg)
PTCHG005	0.5	7.35	1.6	236	286	50-152	50-203	16.1
PTCHG010	1.0	14.71	2.0	303	405	64-203	64-305	22.4
PTCHG015	1.5	22.06	2.0	310	412	74-203	74-305	32.0
PTCHG020	2.0	29.42	2.7	317	419	88-203	88-305	39.0
PTCHG030	3.0	44.13	3.6	333	435	100-203	100-305	65.6
PTCHG050	5.0	73.50	3.6	355	457	114-203	114-305	94.0
PTCHG100	10.0	147.00	2.0	378	480	124-203	124-305	147.0
PTCHG150	15.0	183.75	3.5	449	551	136-203	136-305	278.0
PTCHG200	20.0	245.00	3.5	449	551	136-203	136-305	331.0

Grade 80 Load Chain

All H-Lift Low Headroom Hoists are equipped with high-quality Grade 80 Alloy Steel Load Chain, compliant with EN 818-7 standards.

Material: Heat-treated Alloy Steel
Standard Finish: Black Oxidized (standard) or Electric Galvanized (optional for corrosion resistance)
Safety Factor: 4:1 Minimum

*Always ensure the chain is lubricated and inspected for wear or elongation before use.
