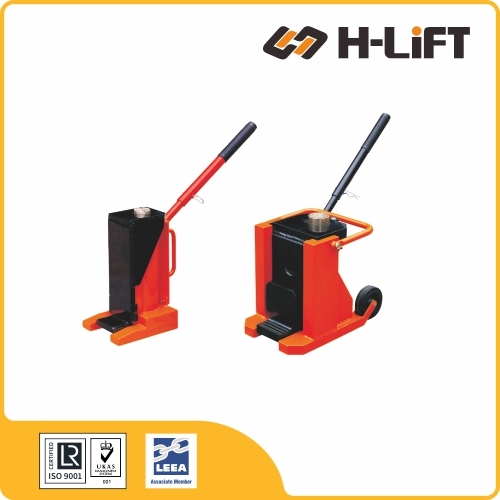

A Machinery Toe Jack of the MTJ type is a compact hydraulic jack designed to lift heavy machinery from very low clearances using a small “toe” lifting point.

An MTJ-type machinery toe jack is a bottle-style hydraulic jack with two lifting points: a low-profile toe at the bottom for very low clearance loads, and a head on top for higher pick-up points. It is used mainly for installing, positioning, and moving heavy machines or equipment where ordinary jacks cannot fit underneath.

This machinery toe jack has a fixed toe and is suitable for general lifting purposes. The toe jack has two lifting positions (toe & head) with capacities of 6t & 7.5t, 12t & 15t respectively. Adjustable Lowering Speed, Overload Protection, Dual Capacitie.

Technical Data
Safe Use of Jacks

The MTJ Type Machinery Toe Jack is a heavy-duty, dual-purpose hydraulic lift designed for riggers and machinery installers. It features a low-profile toe that slides under loads with minimal ground clearance (as low as 35mm), while the top head can be used for standard high-capacity jacking. Built-in overload protection ensures safe operation in demanding industrial environments.

⚠️ SAFETY WARNING: OVERLOAD PROTECTION.
This jack is equipped with a built-in overload protection valve. Do not attempt to bypass this feature. Note that the Toe capacity is lower than the Head capacity.

⬆️ Dual Lifting Points

Highly versatile design allows lifting from both the low-profile Toe (for tight clearances) and the Top Head (for standard, centered jacking).

📏 Ultra-Low Clearance

Designed to slide under heavy machinery resting almost flat on the ground. The MTJ06 requires a minimum clearance of just 35mm, essential for equipment installation.

⚖️ High Load Capacity

The MTJ06 lifts 6t on the toe / 7.5t on the head, while the heavy-duty MTJ12 lifts 12t on the toe / 15t on the head.

🎯 Precision & Safety

Features an adjustable lowering speed valve for smooth descent, and an overload protection valve to prevent lifting beyond safe working limits.

ℹ️ Machine Moving: Easily relocate lifted machinery with our Load Moving Skates.
ℹ️ Rotational Option: Need 360-degree pump access in tight spaces? View our Rotational Toe Jack RTJ Type.

Technical Specifications

Check diagram for Minimum Toe Height and Head Height differences

← Swipe table left and right to view all data →

Item No.	Rated Capacity on Toe	Rated Capacity on Head	Lift Height on Toe	Lift Height on Head	Lifting Stroke	Weight	Product Code
Item No.	(t)	(t)	(mm)	(mm)	(mm)	(kg)	Product Code
MTJ06	6	7.5	35 ~ 195	320 ~ 560	160	25	807003075
MTJ12	12	15	40 ~ 180	325 ~ 465	140	68	807003150

Q: Why does the toe have a lower capacity than the head? A: When lifting on the toe, the load is off-center from the main hydraulic cylinder, creating a cantilever effect. Therefore, the toe capacity (e.g., 12t) is slightly lower than the direct, centered lifting capacity of the head (e.g., 15t).

Q: What is the minimum clearance required for the toe? A: The 6-tonne MTJ06 model requires a minimum clearance of just 35mm, while the 12-tonne MTJ12 model requires 40mm.

Selecting the Correct Jack

Jacks may be hydraulic or mechanical in operation and are available in a wide range of capacities and designs. Proper selection is critical for safety.

Key Considerations:

Type: Hydraulic, ratchet, screw, or journal jack.
Dimensions: Capacity, closed height, lifting height, and overall dimensions.
Accessories: Toe/claw attachments, screwed ram with locking collar, calibrated gauges for load measurement.
Support: Packing materials needed during jacking and to support the load once raised.

Safety Guidelines

Always

Store and handle jacks correctly.
Inspect jacks before use and before placing into storage.
Ensure the surface is level, even, and capable of taking the imposed load.
Ensure the jack is positioned so the load is applied in the correct plane.
Use packing capable of withstanding loads without crushing.
Lift and lower in small stages using support packing to minimize load falls.

Never

Never obliquely load (side load) jacks.
Never raise the load higher than necessary.
Never over-extend the jack beyond its rated stroke.
Never leave a load supported solely on jacks (use stands/packing).
Never reach under a load supported by jacks.
Never work or climb on a load supported by jacks.

Operation & Maintenance

Using Jacks Safely

Multiple Jacks: Most operations require multiple jacks. It is impossible to raise/lower them in perfect unison, causing uneven loading. Ensure jack capacity is adequate to handle load transfer. Keep the load level.

Floor Stability: Ensure the floor can withstand the point load. Use floor plates to spread the load if necessary. Avoid buried cables or pipes.

Contact: The jack head must be in full, firm contact with the jacking point. Use packers to prevent slipping.

Storage & Handling

Store jacks upright with the ram/rack/screw fully lowered to protect them from damage. Remove handles/levers and store separately. Never store damaged jacks.

In-service Inspection

Clean jacks regularly to remove dirt from racks, screws, and seals. Check hydraulic oil levels. Lubricate moving mechanical parts.

Defects to Watch For:

Failure to lift or lower; load slipping/creeping.
Cracked or distorted body/base.
Bent operating levers.
Hydraulic: Oil leaks, scored/distorted rams, inoperative release valves.
Mechanical: Chipped/worn rack teeth or screws, seized swivel heads.

⚠️ WARNING: Excessive grease on ratchet jacks can cause the holding pawl to stick, potentially dropping the load.
