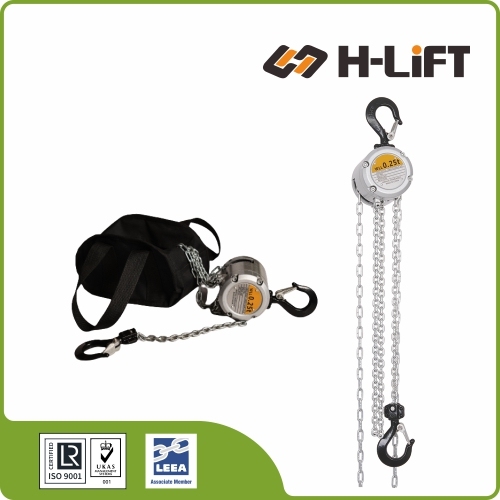

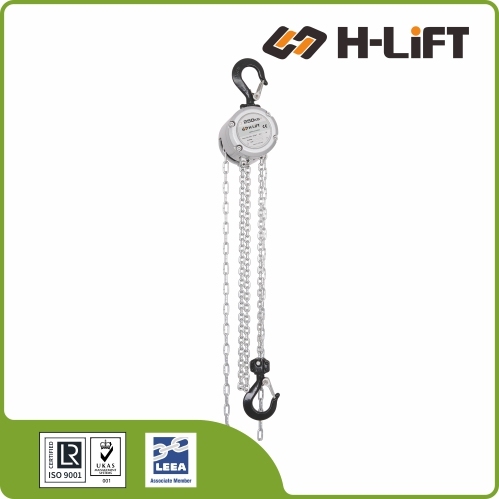

Mini Aluminium Chain Hoist CH-DZ type

No.1105

The H-Lift CHDZ Mini Aluminium Chain Hoist is an ultra-portable lifting tool designed for professionals requiring mobility in tight quarters. Encased in a high-strength aluminium alloy housing, this hoist is exceptionally lightweight—starting at just 2.4kg—making it perfect for overhead installations, plumbing, and automotive maintenance. Its compact, low-headroom design ensures maximum lift height in confined spaces while offering robust durability for daily use.

  • High-strength aluminium alloy housing for ultra-lightweight portability
  • Compact design ideal for confined spaces and low-headroom areas
  • Available in 250kg, 500kg, and 1000kg lifting capacities
  • Equipped with Grade 80 zinc-plated load chain for corrosion resistance
  • Flush-mounted body screws to prevent snagging and enhance durability
  • Technical Data

  • Safe Use of Chain Hoist

Mini Aluminium Chain Hoist - CHDZ Type (Compact & Lightweight)

Capacity: 250kg - 1000kg | Lightweight Housing

The CH-DZ Mini Chain Hoist is the ultimate solution for light-load applications in difficult-to-reach or elevated locations. Whether for duct installation, plumbing, or automotive maintenance, its extremely lightweight aluminium housing makes it easy to transport and install overhead.

Product Features

  • Ultra-Lightweight: Aluminium housing significantly reduces unit weight for portability.
  • Optimized Hooks: Designed with a larger intake while maintaining compact overall measures for maximum lifting height.
  • Clean Design: Flush-mounted housing screws prevent snagging.
  • Durability: Zinc-plated load chain and hand chain (3x16.5mm) for corrosion resistance.
  • Testing: Each unit is proof tested to 1.5 times the rated capacity.
  • Compliance: Meets EN13157, ASME B30.16, AS1418.2, SANS 1594.
  • Optional: Chain bag available.

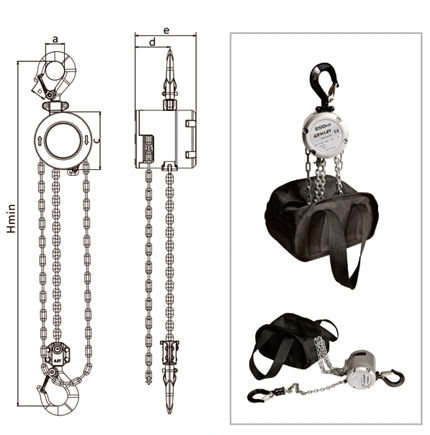

Mini Aluminium Chain Block CH-DZ

Technical Specifications & Dimensions

*Refer to the diagram above to identify dimensions a, b, c, d, e, and Hmin (Minimum Headroom).

Item No. Capacity Std Lift Proof Load Effort to Lift Falls Load Chain Dimensions (mm) N.W. Extra Wt/m Product Code
(kg) (m) (kN) (N) (mm) a b c d e Hmin (kg) (kg)
CHDZ0250 250 2.5 3.7 210 1 3.2 x 9 27 20 82 45 102 233 2.4 0.57 110500250
CHDZ0500 500 2.5 7.5 230 1 4 x 12 34 22 104 63 110 307 3.9 0.68 110500500
CHDZ1000 1000 2.5 14.7 250 2 4 x 12 44 30 104 63 110 380 6.5 1.02 110501000

H-Lift Manual Chain Hoist / Chain Block

A chain hoist is a mechanical lifting device used to move heavy loads in situations where electric or hydraulic options are not practical. It consists of a chain wound around internal gears, operated by a manual hand chain to lift or lower loads with precision.

Applications: Commonly used in construction, manufacturing, and mining. H-Lift chain hoists are designed to be durable, reliable, and easily operated by a single person. Available in a wide range of lifting capacities (WLL).

Chain Block Lift and Headroom Diagram Figure 1: Understanding Lift Height & Headroom
ALWAYS:
  • Store and handle chain hoists correctly in a dry place.
  • Inspect chain hoists and accessories before use and before storage.
  • For top hook suspension, ensure hooks have safety catches or are moused securely.
  • For trolley suspension, ensure the trolley is correctly set for the beam width.
  • Check that the bottom hook can reach its lowest point without running the chain fully out.
  • Adopt safe slinging practices and follow all instructions.
NEVER:
  • Expose chain hoists to chemicals (especially acids) without consulting the supplier.
  • Replace the load chain with a longer one without approval.
  • Tip loading or side hooking.
  • Use undue effort to force the hoist to operate.
  • Throw, drop, or drag a chain hoist.
  • Allow oil or grease to contaminate the brake mechanism.
  • Expose to water spray, steam, or elements without consulting the supplier.
📋 Selecting the Correct Hoist
Select the hoist based on:
  • Suspension Type: Hook, trolley, etc.
  • Capacity & Range: Ensure WLL covers the load.
  • Environment: The chain and hooks are designed for ambient temperatures between -10°C and +50°C.Consult us if used in high-risk areas (acids, chemicals, extreme temps).
Note: Chain hoists are designed for vertical lifting only.
📦 Storage & Handling
  • Never return damaged hoists to storage.
  • Keep dry, clean, and protected from corrosion.
  • Store by top suspension with chains clear of the ground.
  • Warning: Never galvanize or plate load-bearing parts without express approval.
🔧 Installation & Commissioning
  • Test the hoist to ensure correct operation and effective braking.
  • Ensure the chain is not twisted and moves freely.
  • Verify the bottom hook reaches the lowest required position without running out of chain.
⚙️ Safe Usage
  • Do not lift unless you understand slinging procedures.
  • Never use the hoist chain itself as a sling.
  • Check for twisted chains (especially on multi-fall hoists).
  • Ensure the landing area is prepared before moving the load.
  • Keep fingers and toes clear when lowering.
🛠️ Inspection & Maintenance
  • Keep load chains lubricated.
  • Brakes: Must be kept free of oil/grease.
  • Inspect for: Wear, hook damage, bent/notched chains, corrosion, or illegible markings.
  • If defects are found, refer to a Competent Person immediately.
