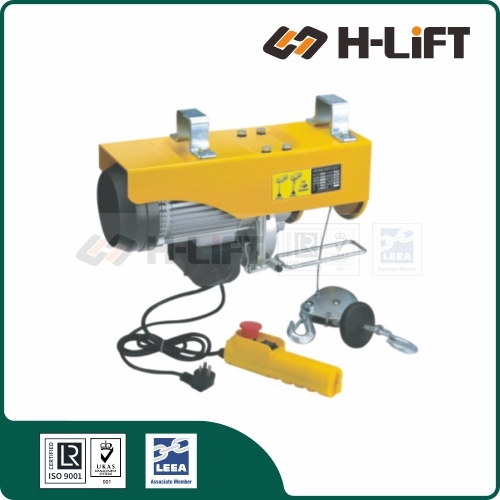

Name: Mini Electric Wire Rope Hoist EWH type
Brand: H-Lift Industries Co Ltd
SKU: 2501
Availability: InStock
Rating: 5 (1 reviews)

No.2501

H-Lift Mini Electric Wire Rope Hoist EWH type is a versatile compact lifter for warehouses, garages, construction sites, and dockyards up to 1200kg capacity.

Dual Speed Control: High/low speeds (10/5 or 8/4 m/min) for precise operation.
Safety Mechanisms: Stop bracket, thermal protection, IP54 motor, and emergency stop.
Non-Rotating Rope: Copper motor with reliable wire rope for stable lifting.
Flexible Options: Pendant control, hoist frame, and remote control available.

Technical Data
Features & Applications

Double Line Power: Use the included snatch block to double your lifting capacity (e.g., 600kg to 1200kg).

Precision Control: Included Non-Rotating Wire Rope prevents load spin for safer operation.

Product Features

High Capacity Range: Offers the widest lifting range in its class, from 100kg up to 1200kg (Double Line), capable of handling heavier loads than standard 1000kg mini hoists.
Premium Copper Motor: Powered by a high-efficiency 100% Copper Motor for superior conductivity and longevity, essential for lifting loads near the 1.2-ton limit.
Thermal Overload Protection: Built-in thermal sensor automatically shuts down the motor if it overheats, protecting your investment during intensive use.
Double Line Capability: Includes a snatch block to double the lifting capacity (e.g., convert 600kg single line to 1200kg double line).
Safe Operation: Features an Upper Limit Switch to prevent over-winding and an Emergency Stop button on the pendant for instant braking.
Durable Construction: IP54 rated protection against dust and water spray, with a robust steel casing for garage and industrial environments.
Non-Rotating Cable: Supplied with aircraft-grade non-rotating wire rope to prevent load spinning, ensuring safe and precise positioning.

Compare Mini Electric Hoist Series

Model	Max. Capacity	Speed (Single)	Key Feature
EWH Type Max Capacity	1200 kg	8/10 m/min	Widest Capacity Range
EWH-E Type Certified	1000 kg	10 m/min	CE/GS Certified Standard
EWH-L Type Fast Speed	500 kg	20 m/min	Double Speed

Technical Specifications

Item No.	Capacity (kg)		Lifting Speed (m/min)		Lifting Height (m)		Input Power (W)	Rated Voltage	Packing	Product Code
Item No.	Single	Double	Single	Double	Single	Double	Input Power (W)	Rated Voltage	Size (mm)	Product Code
EWH0200	100	200	10	5	12	6	480	220-240V 50/60Hz	470x370x160	250100200
EWH0250	125	250	10	5	12	6	540		470x370x160	250100250
EWH0300	150	300	10	5	12	6	600		470x370x160	250100300
EWH0400	200	400	10	5	12	6	950		520x450x170	250100400
EWH0500	250	500	10	5	12	6	1020		520x450x170	250100500
EWH0600	300	600	10	5	12	6	1200		520x450x170	250100600
EWH0800	400	800	8	4	12	6	1300		540x505x170	250100800
EWH1000	500	1000	8	4	12	6	1600		560x250x350	250101000
EWH1200	600	1200	8	4	12	6	1800		560x250x350	250101200

A mini electric wire rope hoist is a compact lifting device designed for handling lighter loads in various settings. Combining a lightweight structure with powerful lifting capabilities, it is the ideal solution for confined spaces in both industrial and domestic environments.

Compact Design: Illustrated above is a standard PA-style mini hoist, typically mounted on a fixed bar or swivel arm for vertical lifting.

Overview & Key Characteristics

Design & Portability: Characterized by a small footprint and lightweight structure, these hoists are easy to install and operate in confined spaces. They are often mounted on fixed structures or overhead tracks.
Lifting Capacity: Specifically tailored for lighter tasks compared to heavy industrial hoists. Capacities typically range up to 1000 kg (2200 lbs), perfect for tools, small engines, and materials.
Standard Power Supply: Operates on standard household or industrial electricity (e.g., AC 220V/230V Single Phase), drastically simplifying installation without the need for specialized 3-phase power.
Safety Features: Equipped with essential safety mechanisms, including thermal protection devices to prevent motor overheating and limit switches to ensure safe operation limits.

Main Applications

Mini electric wire rope hoists are versatile lifting devices used across various sectors due to their ease of use. Common applications include:

Workshops & Garages Ideal for lifting car engines, lightweight machinery, or heavy tools, making them essential for DIY projects and small-scale repairs.

Warehousing Commonly employed for loading and unloading goods in smaller storage areas or mezzanines, helping streamline inventory management.

Home Use Suitable for household tasks such as hoisting items into attics, lifting lawnmowers, or managing storage in personal garages.

Construction Sites Used to lift materials (cement, bricks, tools) to upper floors in tight spaces where large cranes cannot access.

Agriculture Useful for moving equipment, feed bags, or supplies within barns and farms, enhancing efficiency in daily operations.

Light Manufacturing Utilized in small factories for lifting components onto assembly lines or positioning parts during the manufacturing process.

Overall, mini electric wire rope hoists offer a practical, cost-effective solution for lifting lighter loads in confined spaces across multiple industries.
