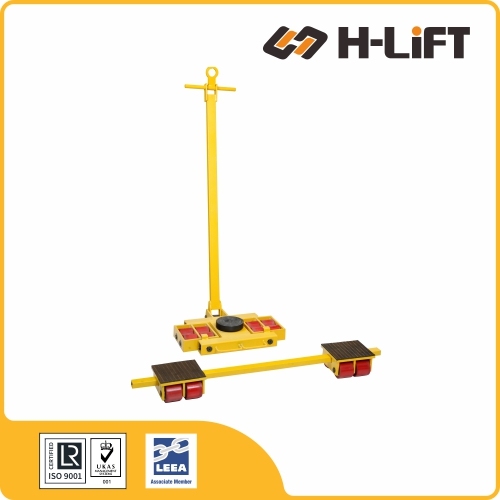

The H-Lift Machine Moving Skate CTXY type functions as a coordinated 3-point transport system engineered for stable handling of bulky industrial equipment. By pairing a maneuverable leading unit with an adjustable trailing support, it allows operators to safely navigate heavy loads around corners and through tight workshop spaces. This modular design offers flexibility for various equipment footprints while maintaining a low profile for enhanced stability during transport.
The H-Lift CT/XY Moving Skate System is a complete heavy-duty transport solution designed for moving massive machinery and equipment safely. It combines a steerable front skate (X-Type) with adjustable rear skates (Y-Type) to create a stable 3-point support system, eliminating the risk of rocking on uneven floors.
Includes one Steerable Front Skate (X-Type) with handle and two Adjustable Rear Skates (Y-Type) connected by a tie bar for a ready-to-use solution.
The 3-point configuration ensures the load remains stable and prevents rocking, even when traversing slightly uneven industrial floors.
Durable Polyurethane (PU) Wheels resist abrasion and protect delicate surfaces (like epoxy or painted floors) from damage and marking.
Available in capacities ranging from 8 Tonnes to 64 Tonnes, making it ideal for moving generators, transformers, and heavy machinery.
Q: What is the difference between X-Type and Y-Type skates?
A: The X-Type is the front steerable unit featuring a handle and turntable. The Y-Type consists of the rear trailing units, which are fixed (non-steering) and connected by an adjustable bar to maintain alignment.
Q: Can I use these skates on rough ground?
A: No. These skates are designed for use on flat, smooth, clean industrial floors. Rough surfaces or debris can damage the PU wheels and rollers.
| Item No. | Capacity (t) | Description | Load Plate Size | Handle Length | Tie Rod Range | Dimensions (L×W×H) | Weight | Product Code |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | kg | ||||
| CTXY08 | 8 | X4 | Φ150 | 1020 | - | 230×220×113 | 28 | 801005008 |
| Y4 | 130×130 | - | 260-1000 | 170×130×113 | ||||
| CTXY16 | 16 | X8 | Φ160 | 1130 | - | 493×527×113 | 71 | 801005016 |
| Y8 | 200×160 | - | 490-1700 | 200×195×113 | ||||
| CTXY24 | 24 | X12 | Φ180 | 1130 | - | 536×748×113 | 99 | 801005024 |
| Y12 | 280×180 | - | 650-1780 | 280×200×113 | ||||
| CTXY32 | 32 | X16 | Φ200 | 1300 | - | 560×899×113 | 129 | 801005032 |
| Y16 | 339×175 | - | 650-2000 | 204×339×113 | ||||
| CTXY36 | 36 | X18 | Φ200 | 1300 | - | 616×762×113 | 145 | 801005036 |
| Y18 | 280×270 | - | 650-2080 | 300×280×113 | ||||
| CTXY48 | 48 | X24 | Φ220 | 1600 | - | 684×882×162 | 242 | 801005048 |
| Y24 | 330×200 | - | 730-1320 | 230×330×162 | ||||
| CTXY64 | 64 | X32 | Φ250 | 1600 | - | 690×1103×169 | 315 | 801005064 |
| Y32 | 420×220 | - | 930-2420 | 230×420×169 |
Always ensure the floor surface is clean and free of debris before operation. Small stones or metal chips can embed in PU wheels and cause damage. Never exceed the rated capacity of the skate set.
Load moving skates, also known as machinery skates or equipment skates, are specialized tools designed for moving heavy loads horizontally. These skates are particularly useful in industrial and commercial settings where the relocation of heavy machinery or equipment is required.
They effectively reduce the need for cranes or forklifts in confined spaces and are typically used in conjunction with other lifting equipment, such as hydraulic jacks (toe jacks), to facilitate the loading process.
Common Applications:
The platform is constructed of sturdy steel to withstand heavy loads. The low-profile design ensures stability while maximizing overhead clearance.
Wheels vary in number and arrangement (e.g., square pattern or multi-row) to increase stability. Made from Nylon (for floor protection) or Steel (for durability).
Many models feature swivel casters or a turntable top, allowing for easy turning and positioning in tight spaces.
Some skates include a handle or pulling bar for manual push/pull operation. Adjustable models allow users to change connecting bar spacing for different load sizes.
| Type | Movement | Typical Application |
|---|---|---|
| Fixed Skates (Straight-Running) |
Moves in a straight line only. | Used under the rear of the load for stability. |
| Steerable Skates (Swivel) |
Rotating top plate allows turning. | Used at the front of the load for steering control. |
| Adjustable Skates | Connecting bars adjust width. | Accommodating loads of varying widths and sizes. |
| Powered Skates | Motor-driven (Electric/Pneumatic). | Precise movement of extremely heavy loads without manual pushing. |
To ensure safe operation and longevity of the equipment, follow these guidelines:
