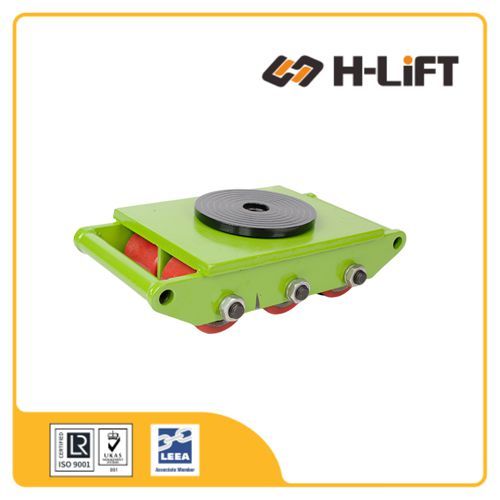

The H-Lift Load Moving Skate CTB type is a compact heavy-duty dolly designed for the smooth transport of machinery and industrial equipment. Featuring durable nylon rollers that distribute weight evenly to protect floors, this maintenance-free skate includes a welded handle for easy positioning and a rubber-lined platform to securely grip loads during movement.
The CTB Series Heavy Duty Skates pack exceptional load-bearing capacity into a compact steel body. Featuring multiple rollers (up to 16 on the 20T model) and a robust welded frame, they are the ideal solution for moving transformers, generators, and heavy industrial machinery in straight-line applications.
Compact steel body packed with multiple rollers provides exceptional load capacity in a small footprint. Available in sizes from 6 Tonnes up to 20 Tonnes.
Fully welded steel frame with a durable powder-coated finish ensures maximum resistance to impact and wear in harsh industrial environments.
Fitted with high-quality bearings and rollers (PU for floor protection or Steel for durability) to ensure low rolling resistance even under maximum load.
The top plate sits on a bearing and rotates 360 degrees. This allows the wheel body to turn left or right while the load remains stationary on top.
Turnable table in the centre of the trolley.
| Item No. | Capacity (t) | No. of Rollers | Skate Size (mm) (LxWxH) |
Weight (kg) | Product Code |
|---|---|---|---|---|---|
| CTB-06 | 6 | 4 | 287x220x110 | 14 | 801002006 |
| CTB-08 | 8 | 6 | 384x220x110 | 20 | 801002008 |
| CTB-12 | 12 | 8 | 478x220x110 | 27 | 801002012 |
| CTB-18 | 18 | 12 | 478x310x110 | 37 | 801002018 |
| CTB-20 | 20 | 16 | 500x397x115 | 57 | 801002020 |
Load moving skates, also known as machinery skates or equipment skates, are specialized tools designed for moving heavy loads horizontally. These skates are particularly useful in industrial and commercial settings where the relocation of heavy machinery or equipment is required.
They effectively reduce the need for cranes or forklifts in confined spaces and are typically used in conjunction with other lifting equipment, such as hydraulic jacks (toe jacks), to facilitate the loading process.
Common Applications:
The platform is constructed of sturdy steel to withstand heavy loads. The low-profile design ensures stability while maximizing overhead clearance.
Wheels vary in number and arrangement (e.g., square pattern or multi-row) to increase stability. Made from Nylon (for floor protection) or Steel (for durability).
Many models feature swivel casters or a turntable top, allowing for easy turning and positioning in tight spaces.
Some skates include a handle or pulling bar for manual push/pull operation. Adjustable models allow users to change connecting bar spacing for different load sizes.
| Type | Movement | Typical Application |
|---|---|---|
| Fixed Skates (Straight-Running) |
Moves in a straight line only. | Used under the rear of the load for stability. |
| Steerable Skates (Swivel) |
Rotating top plate allows turning. | Used at the front of the load for steering control. |
| Adjustable Skates | Connecting bars adjust width. | Accommodating loads of varying widths and sizes. |
| Powered Skates | Motor-driven (Electric/Pneumatic). | Precise movement of extremely heavy loads without manual pushing. |
To ensure safe operation and longevity of the equipment, follow these guidelines:
