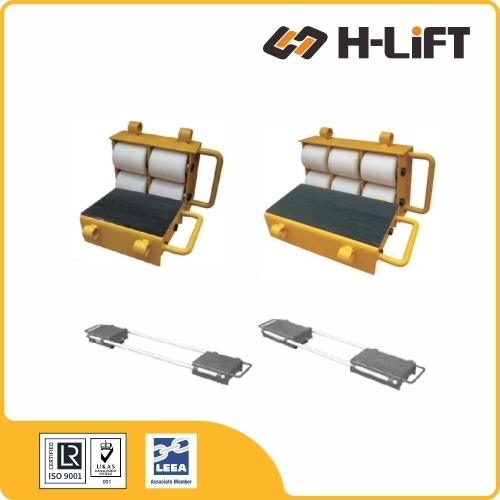

The H-Lift Machine Moving Skate MSC type is an adjustable transport system designed for safe handling of heavy loads ranging from 6 to 24 tons. It features two individual skates connected by adjustable steel tie rods, allowing users to customize the width from 500mm to 1500mm to match different load sizes. This versatile design, equipped with durable nylon or steel rollers, provides a stable and adaptable solution for moving machinery across flat industrial surfaces.
The MSC Adjustable Load Skates provide a stable, dual-skate solution connected by steel alignment bars. Designed as "trailing skates" for straight-line stability, they can be adjusted (via the 1.3m bars) to perfectly match the width of your load, ensuring safe transport of heavy machinery and containers.
Supplied as a set of two skates connected by steel bars. The width is easily adjustable to fit the exact width of your machine, maximizing stability during moves.

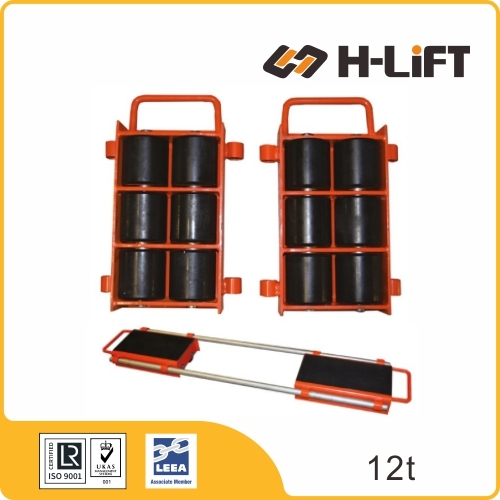

MSC06/12: Durable Nylon rollers protect epoxy floors.

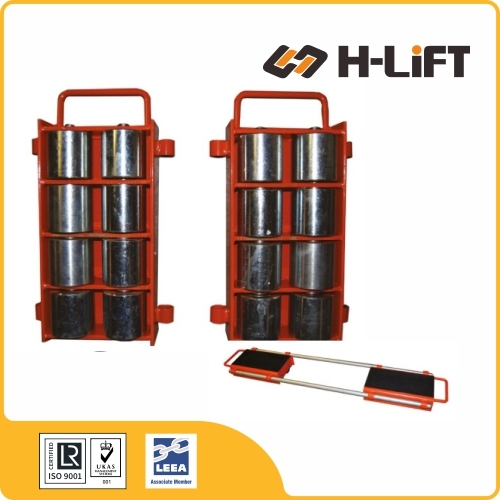

MSC24: Heavy-duty Steel rollers for extreme loads (24T) on rougher surfaces.
With a uniform height of just 110mm, these skates keep the load's center of gravity low, reducing the risk of tipping during transport.
The kit comes complete with 2 skates and 2 connecting bars, ready for immediate use under heavy crates, containers, or industrial equipment.
How to Steer? MSC skates are designed as rear "trailing" wheels. To steer, pair one set of MSC skates (at the rear) with a Steerable Load Skate (LSA or CRA type) at the front. This 3-point system allows easy maneuvering around corners.
| Item No. | Capacity (t) | Roller Material | Rollers per Pair | Roller Size (mm) | Adjustable Range (mm) | Dimensions (mm) (LxWxH) |
Weight (kg) | Product Code |
|---|---|---|---|---|---|---|---|---|
| MSC06 | 6 | Nylon | 8 | 85 x 90 | 500 - 1400 | 310x280x110 | 28 | 801006008 |
| MSC12 | 12 | Nylon | 12 | 85 x 90 | 720 - 1500 | 410x280x110 | 38 | 801006012 |
| MSC24 | 24 | Steel | 16 | 85 x 90 | 720 - 1500 | 500x280x110 | 65 | 801006016 |
Load moving skates, also known as machinery skates or equipment skates, are specialized tools designed for moving heavy loads horizontally. These skates are particularly useful in industrial and commercial settings where the relocation of heavy machinery or equipment is required.
They effectively reduce the need for cranes or forklifts in confined spaces and are typically used in conjunction with other lifting equipment, such as hydraulic jacks (toe jacks), to facilitate the loading process.
Common Applications:
The platform is constructed of sturdy steel to withstand heavy loads. The low-profile design ensures stability while maximizing overhead clearance.
Wheels vary in number and arrangement (e.g., square pattern or multi-row) to increase stability. Made from Nylon (for floor protection) or Steel (for durability).
Many models feature swivel casters or a turntable top, allowing for easy turning and positioning in tight spaces.
Some skates include a handle or pulling bar for manual push/pull operation. Adjustable models allow users to change connecting bar spacing for different load sizes.
| Type | Movement | Typical Application |
|---|---|---|
| Fixed Skates (Straight-Running) |
Moves in a straight line only. | Used under the rear of the load for stability. |
| Steerable Skates (Swivel) |
Rotating top plate allows turning. | Used at the front of the load for steering control. |
| Adjustable Skates | Connecting bars adjust width. | Accommodating loads of varying widths and sizes. |
| Powered Skates | Motor-driven (Electric/Pneumatic). | Precise movement of extremely heavy loads without manual pushing. |
To ensure safe operation and longevity of the equipment, follow these guidelines:
