One Way Buckle

No.4083

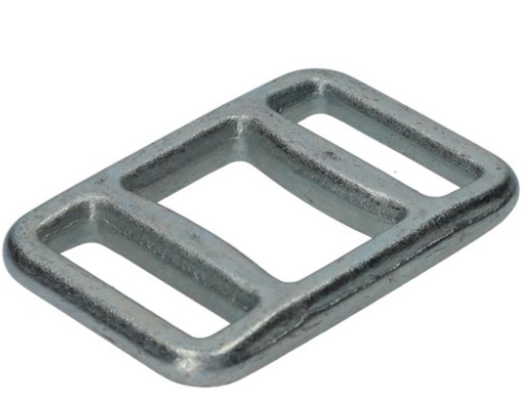

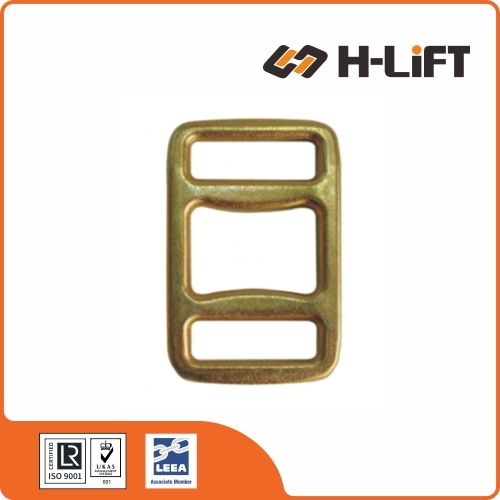

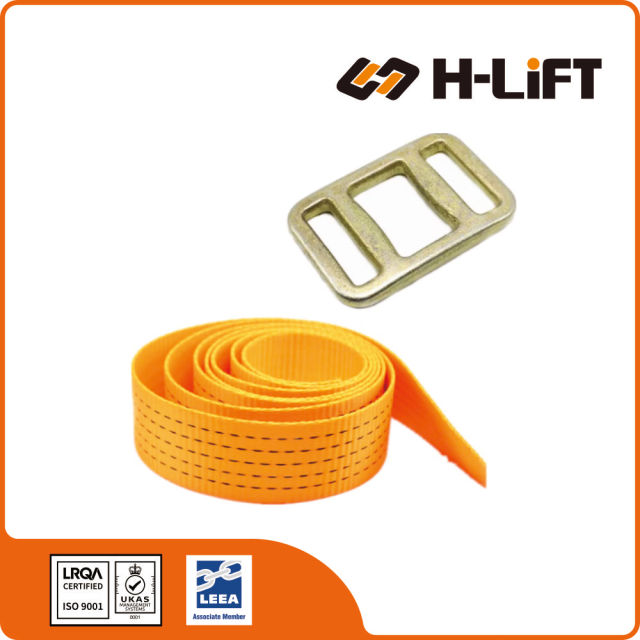

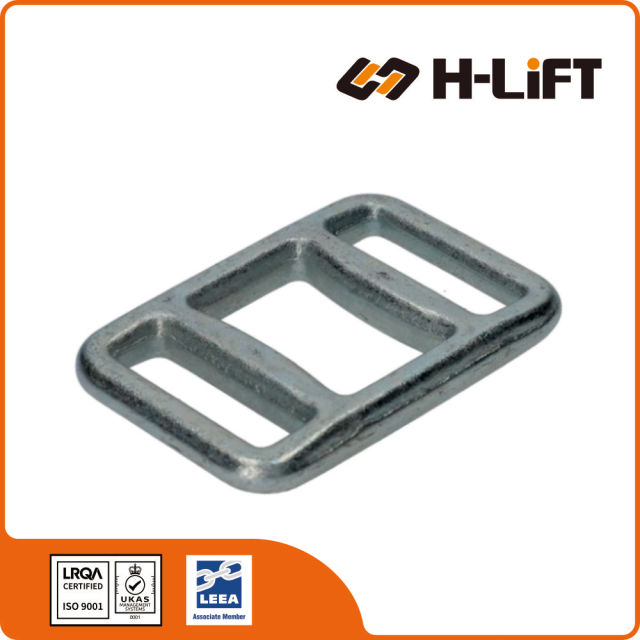

The One Way Lashing Buckle is a robust and highly economical hardware component designed to be used with woven polyester webbing for securing cargo shipments where the restraint equipment cannot be retrieved for reuse.

  • Economical Export Solution: Provides a highly cost-effective alternative to investing in conventional, reusable ratchet tie-down straps, making it the ideal choice for one-way domestic or overseas logistics.
  • Secure Locking Mechanism: Specifically engineered to allow webbing to be tightened efficiently in one direction while preventing unintentional loosening, ensuring reliable tension throughout the transit.
  • Broad Capacity Range: Available in various standard dimensions including 30mm, 40mm, and 50mm, offering exceptional Breaking Strengths (BS) that range from 1,500 kg up to a heavy-duty 5,000 kg.
  • Durable Construction: Manufactured from high-strength forged or alloy steel, typically featuring a zinc-plated or galvanized surface finish to resist corrosion and withstand harsh transport environments.

Technical Data

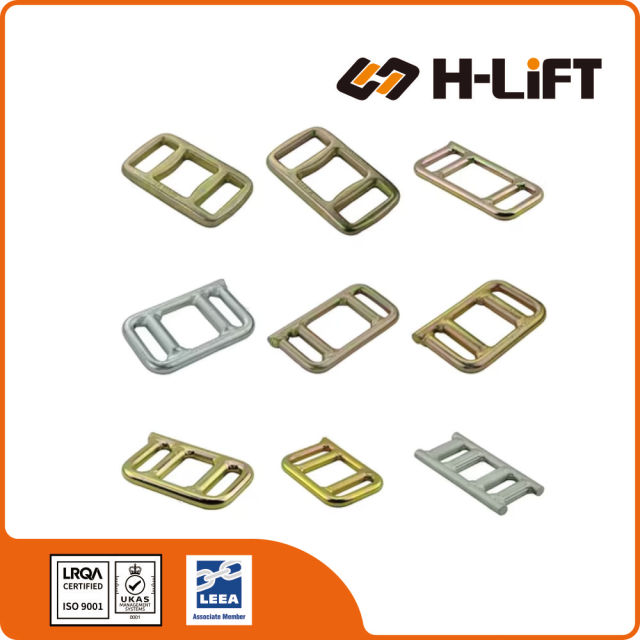

One Way Lashing Buckles & Wire Buckles - 30mm to 50mm

Secure Fastening for Non-Returnable Cargo
High Joint Efficiency One-Way Lashing Phosphated / Galvanized For Woven & Composite Straps

Product Features

  • Secure One-Way Fastening: Specifically designed for non-returnable cargo securing systems, offering a cost-effective alternative to ratchet straps for export shipping.
  • High Joint Efficiency: Optimized geometry ensures maximum grip on Woven Polyester Lashing and Composite Strapping, preventing slippage even under heavy dynamic loads during sea or rail transit.
  • Anti-Slip Surface: Available in Phosphated (Black) finish to increase friction and bite into the webbing for superior holding power, or Galvanized (Silver) for enhanced rust protection.
  • Wide Range of Sizes: From 30mm (1.5T) for lighter pallets to 50mm (5T) heavy-duty forged buckles for securing machinery and heavy industrial goods in containers.
  • Easy Tensioning: Compatible with standard manual or pneumatic strapping tensioners for quick and effortless application.

50mm Heavy Duty Buckles

OWB5050
OWB5050 (50mm)
BS: 5,000kg / 11,000lbs
Code: 408305007
OWB5050W
OWB5050W (50mm)
BS: 5,000kg / 11,000lbs
Code: 408305011
OWB5050WM
OWB5050WM (50mm)
BS: 5,000kg / 11,000lbs
Code: 408305014
OWB5025
OWB5025 (50mm)
BS: 2,500kg / 5,500lbs
Code: 408305018
OWB5015
OWB5015 (50mm)
BS: 1,500kg / 3,300lbs
Code: 408305017

30mm - 42mm Standard Buckles

OWB5050WS
OWB5050WS (42mm)
BS: 5,000kg / 11,000lbs
Code: 508305015
OWB4050W
OWB4050W (40mm)
BS: 5,000kg / 11,000lbs
Code: 408304012
OWB4040
OWB4040 (40mm)
BS: 4,000kg / 8,800lbs
Code: 408304008
OWB4040-1
OWB4040-1 (40mm)
BS: 4,000kg / 8,800lbs
Code: 408304010
OWB3015W-1
OWB3015W-1 (34mm)
BS: 1,500kg / 3,300lbs
Code: 408303016
OWB3030
OWB3030 (30mm)
BS: 3,000kg / 6,600lbs
Code: 408303009
0WB3015W
0WB3015W (30mm)
BS: 1,500kg / 3,300lbs
Code: 408303013
