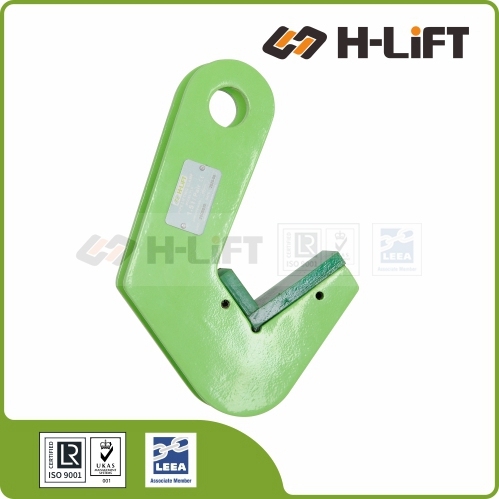

The PLC Type Pipe Lifting Clamp is a specialized, compact device designed for the safe horizontal lifting and transporting of steel or concrete pipes.
To ensure a safe lift, the top angle of the sling must be adjusted based on the thickness of the material relative to the jaw depth ("B").

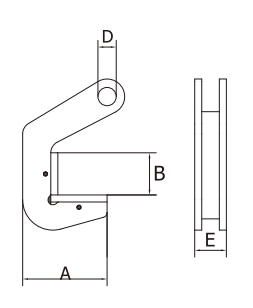

| Item No. | Capacity (Per Pair) | Jaw Opening | Dimensions (mm) | N.W. | Product Code | |||
|---|---|---|---|---|---|---|---|---|
| (t) | (mm) | A | B | D | E | (kg) | ||
| PLC015 | 1.5 | 40 | 127 | 40 | 27 | 35 | 1.5 | 161001500 |
| PLC030 | 3.0 | 40 | 142 | 40 | 27 | 35 | 3.0 | 161003000 |
| PLC040 | 4.0 | 50 | 144 | 50 | 30 | 40 | 4.0 | 161004000 |
| PLC060 | 6.0 | 50 | 152 | 50 | 30 | 40 | 5.0 | 161006000 |
| PLC080 | 8.0 | 70 | 155 | 70 | 30 | 42 | 6.7 | 161008000 |
| PLC120 | 12.0 | 70 | 175 | 70 | 33 | 46 | 10.0 | 161012000 |
| PLC160 | 16.0 | 70 | 175 | 70 | 40 | 56 | 13.0 | 161016000 |
| PLC180 | 18.0 | 70 | 175 | 70 | 52 | 68 | 15.0 | 161018000 |
Lifting clamps utilize various mechanisms (lever, cam, roller, or screw) to provide a friction grip on the plate. When selecting a clamp, consider:
IMPORTANT: Minimum Load Requirement
Some clamps (especially cam action types) rely on a minimum load to engage the gripping force safely. Unless specified otherwise by the manufacturer:
• The load should not be less than 20% of the Safe Working Load (SWL).
• The plate thickness should not be less than 20% of the maximum jaw opening.
Do not use defective clamps. Place the clamp over the load center. If the plate is long and tends to bend, use two clamps with a spreader beam to prevent the clamps from twisting. Keep oil, grease, and contaminants away from the gripping jaws.
Regularly inspect for:
