The H-Lift Porta Power Jack 4T is a lightweight hydraulic body repair kit for lifting, pushing, and straightening tasks in automotive repair, construction, and workshop applications.
The 4 Ton Porta Power Jack is a compact yet powerful hydraulic repair kit, ideal for auto body collision repair and light structural work. Delivering 4 tons of force in a portable package, it excels at pushing out dents, spreading crushed panels, and straightening frames in tight spaces.
Delivers sufficient hydraulic force for most common auto body repairs while remaining small enough to fit into confined areas like door jambs and wheel wells.
PPJ04B: Lightweight Blow Mold Case for easy transport.

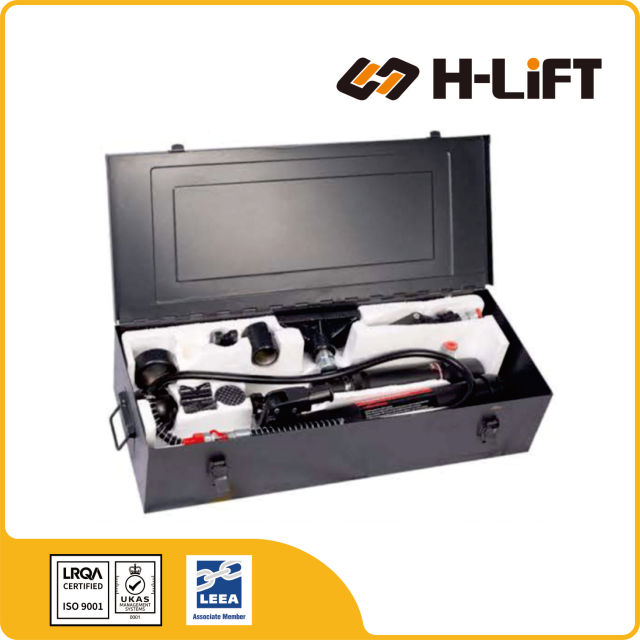

PPJ04C: Durable Iron Box (Metal Case) for rugged workshop environments.
Includes a 4-ton hydraulic pump, ram, spreader (duckbill), hose, and a versatile set of extension tubes and connectors for various pulling and pushing tasks.
Features a snap-lock design on extension tubes for fast, tool-free assembly, allowing you to set up and get to work quickly.
| Part No. | Description (Part Name) | Qty |
|---|---|---|
| 01 | Hydraulic Hand Pump (4 Ton) | 1 |
| 02 | Hydraulic Ram (4 Ton Cylinder) | 1 |
| 03 | High Pressure Hose | 1 |
| 04 | 0.5 Ton Hydraulic Spreader | 1 |
| 05 | Extension Tube (80mm / 3") | 1 |
| 06 | Extension Tube (130mm / 5") | 1 |
| 07 | Extension Tube (210mm / 8") | 1 |
| 08 | Extension Tube (415mm / 16") | 1 |
| 09 | Extension Tube (495mm / 19") | 1 |
| 10 | Male Connector | 1 |
| 11 | Flat Base | 1 |
| 12 | 90° V-Base | 1 |
| 13 | Wedge Head | 1 |
| 14 | Plunger Toe | 1 |
| 15 | Ram Toe | 1 |
| 16 | Rubber Flex Head | 1 |
| 17 | Serrated Saddle | 1 |
| 18 | Case (Blow Mold or Iron Box) | 1 |
| Item No. | Capacity (t) |
Min. Height (mm) |
Lifting Range (mm) |
Package Size (cm) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|
| PPJ04B | 4 | 270 | 125 | 595 x 335 x 195 | 17 | 810301001 |
| PPJ04C | 4 | 270 | 125 | 590 x 260 x 170 | 17 | 810301002 |
Jacks may be hydraulic or mechanical in operation and are available in a wide range of capacities and designs. Proper selection is critical for safety.
Multiple Jacks: Most operations require multiple jacks. It is impossible to raise/lower them in perfect unison, causing uneven loading. Ensure jack capacity is adequate to handle load transfer. Keep the load level.
Floor Stability: Ensure the floor can withstand the point load. Use floor plates to spread the load if necessary. Avoid buried cables or pipes.
Contact: The jack head must be in full, firm contact with the jacking point. Use packers to prevent slipping.
Store jacks upright with the ram/rack/screw fully lowered to protect them from damage. Remove handles/levers and store separately. Never store damaged jacks.
Clean jacks regularly to remove dirt from racks, screws, and seals. Check hydraulic oil levels. Lubricate moving mechanical parts.
Defects to Watch For:
