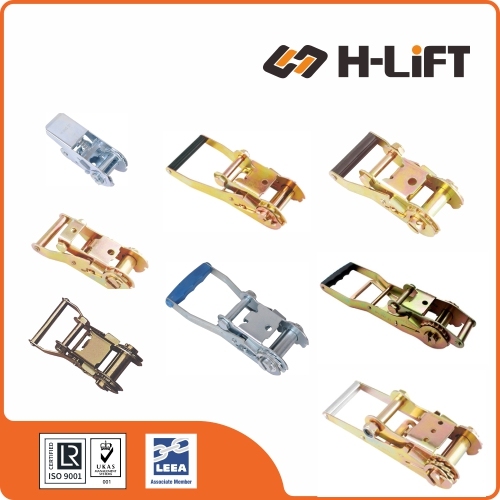

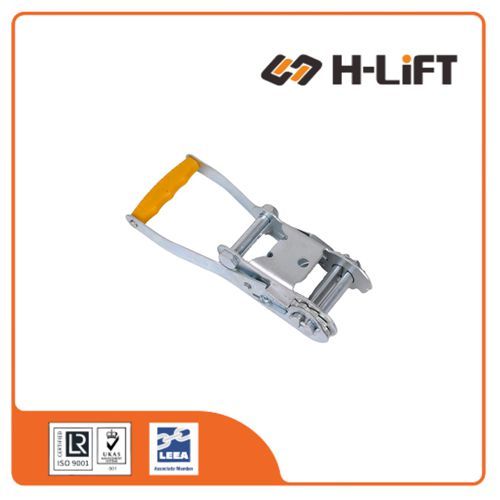

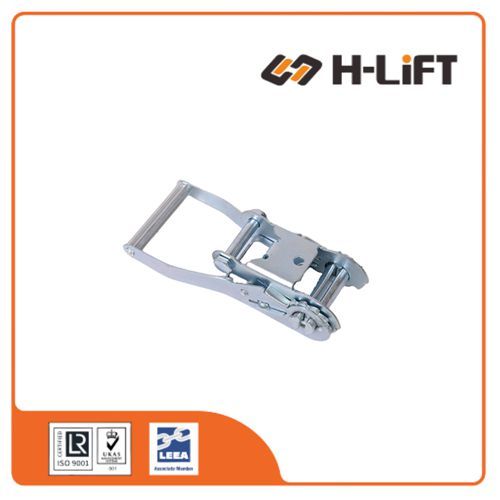

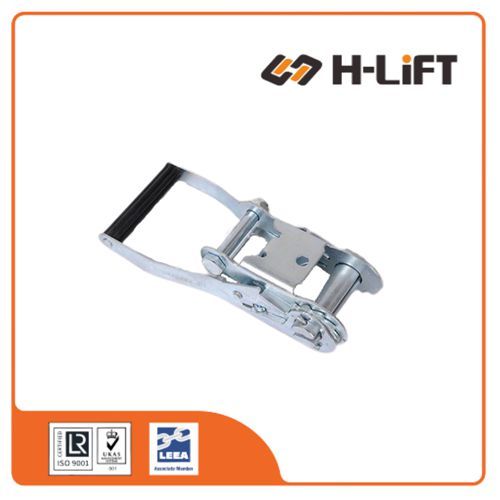

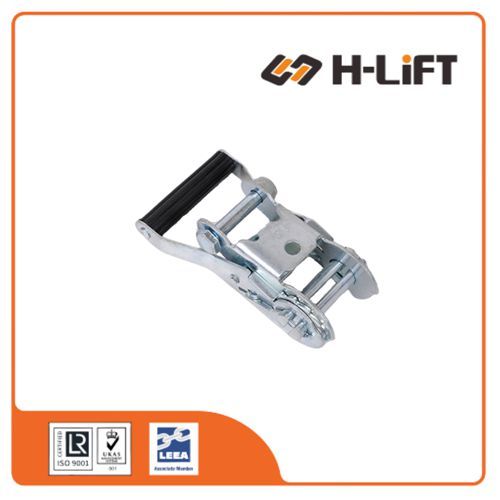

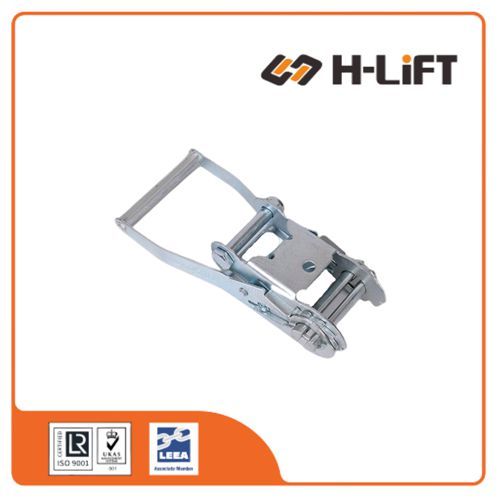

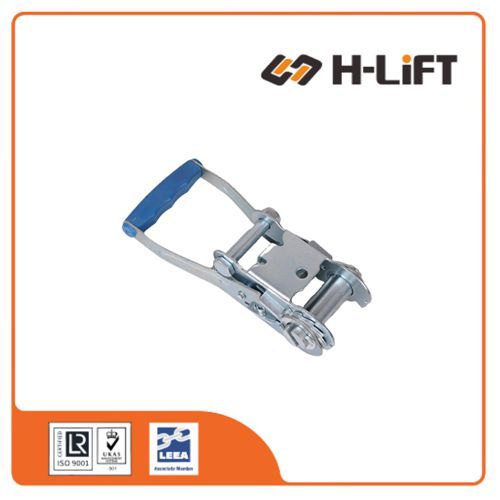

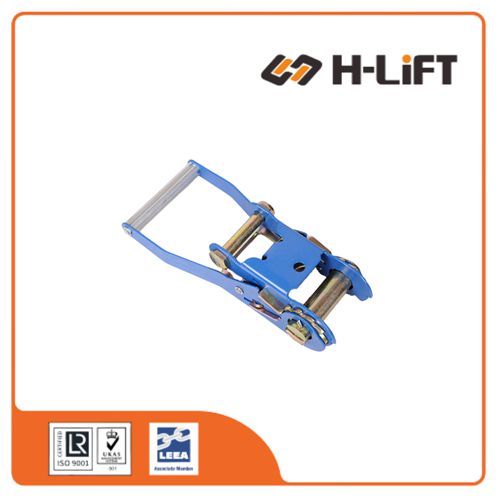

Ratchet Buckle

Name: Ratchet Buckle
Brand: H-Lift Industries Co Ltd
SKU: 4080
Availability: InStock
Rating: 5 (1 reviews)

No.4080

The Ratchet Buckle is a heavy-duty mechanical tensioning device used as the core component in cargo lashing systems, engineered to provide precise, secure tension for tie-down webbing straps across various transport applications.

Wide Capacity Range: Available in an extensive array of Breaking Strengths (BS) starting from 800 kg (1,760 lbs) for lighter loads up to an impressive 10,000 kg (22,000 lbs) for heavy commercial transport.
Multiple Size Options: Specifically dimensioned to accommodate a variety of standard webbing widths, including 25mm, 28mm, 34mm, 38mm, 50mm, 75mm, and 100mm.
Diverse Configurations: Offered in a multitude of handle and body designs to provide optimal ergonomics, smooth ratcheting action, and superior leverage depending on the user's specific application requirements.
Durable Construction: Manufactured from high-strength steel with robust corrosion-resistant finishes to ensure long-lasting durability and reliable performance in demanding environments.

Technical Data

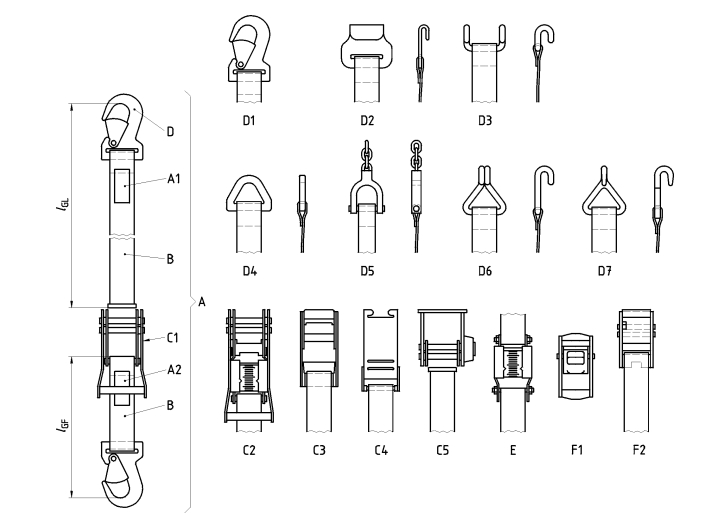

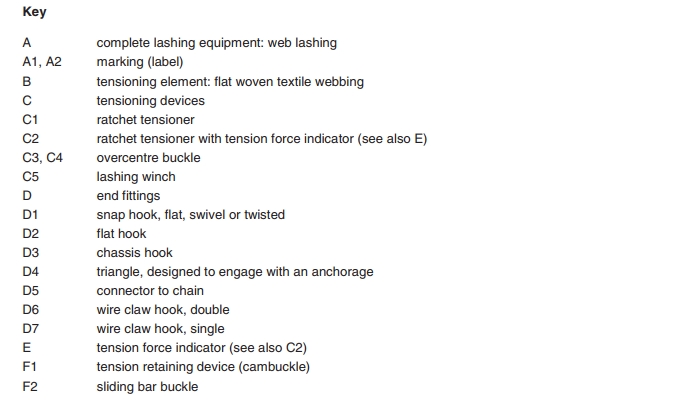

Types of Tensioning Devices & End Fittings

Ratchet Buckles & Webbing Tensioners - 1" to 4"

Complete Catalog with Technical Dimensions

EN12195-2 Compliant Ratchet Mechanism BS 800kg - 10,000kg Multiple Handle Options

Comprehensive Range: Available in sizes from 25mm (1") to 100mm (4") to suit all cargo control applications.
Heavy Duty Performance: Breaking strengths ranging from 800kg up to 10,000kg (22,000 lbs) for heavy industrial use.
Variety of Handles: Choose from Standard, Short, Long, and Extra-Long handles to fit your leverage needs.
Ergonomic Design: Ergo (Pull-Down) models available for easier operation and reduced back strain.
Quality Finish: Options include Yellow Zinc, White Zinc (Cr6 Free), and Black Electrophoresis.
Safety Standards: Manufactured to meet EN12195-2, AS/NZS 4380, and WSTDA requirements.

Technical Drawing & Dimensions

A: Inner Width (mm) B: Thickness (mm) C: Overall Length (mm)

Heavy Duty Buckles (75mm - 100mm)

RB100

BS: 10,000kg

A:	104 mm
B:	57 mm
C:	300 mm

Code: 408010010

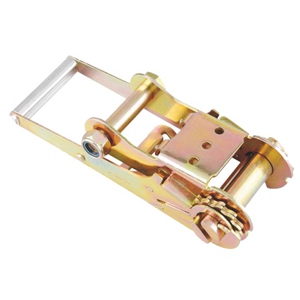

RB75

BS: 10,000kg

A:	78 mm
B:	57 mm
C:	300 mm

Code: 408007510

Standard Buckles (50mm / 2")

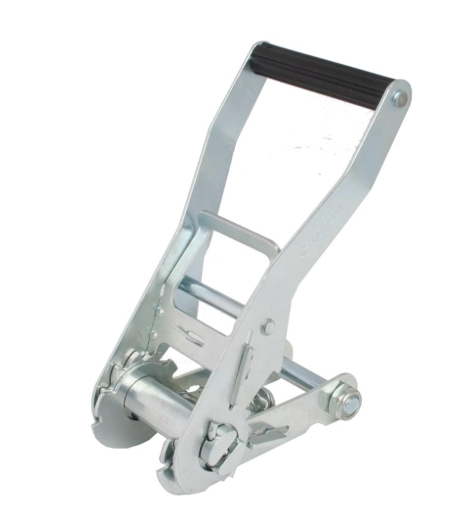

RB50C

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	230 mm

Code: 408005001

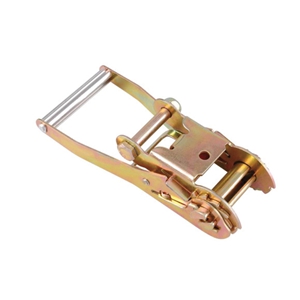

RB50D

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	230 mm

Code: 408005002

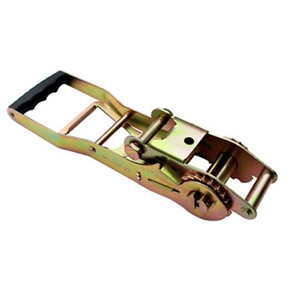

RB50E (Ergo)

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	300 mm

Code: 408005003

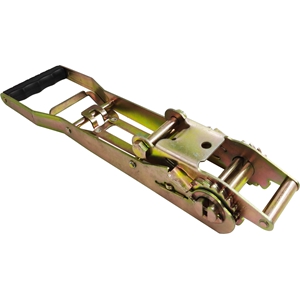

RB50N (Ex-Long)

BS: 5,000kg

A:	52 mm
B:	63 mm
C:	400 mm

Code: 408005004

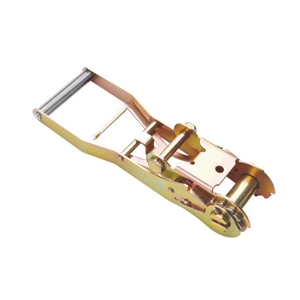

RB50L (Long)

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	300 mm

Code: 408005005

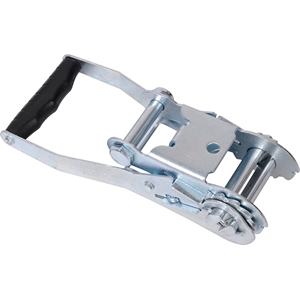

RB50K (White)

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	230 mm

Code: 408005006

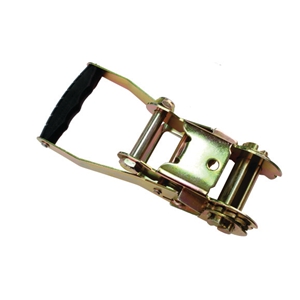

RB50J (Plastic)

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	230 mm

Code: 408005007

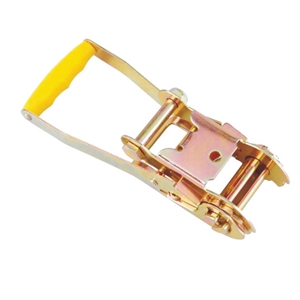

RB50H

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	250 mm

Code: 408005008

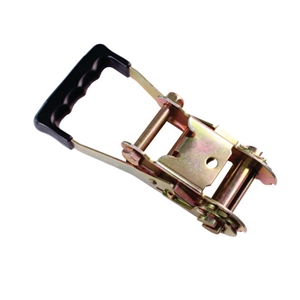

RB50B

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	230 mm

Code: 408005009

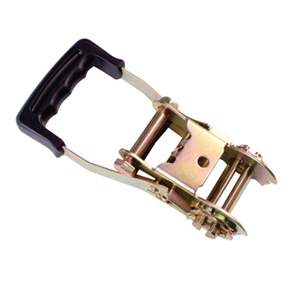

RB50S

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	250 mm

Code: 408005010

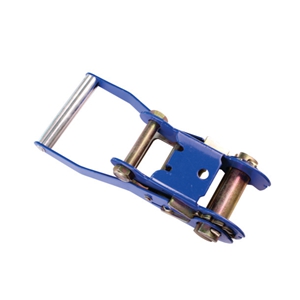

RB50P (Blue)

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	230 mm

Code: 408005011

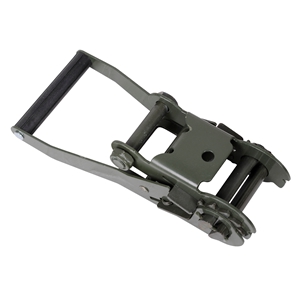

RB50F

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	230 mm

Code: 408005012

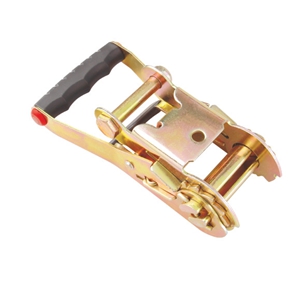

RB50R (Short)

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	197 mm

Code: 408005013

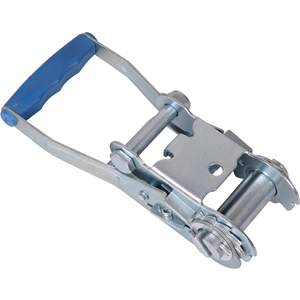

RB50G (Cr6 Free)

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	230 mm

Code: 408005014

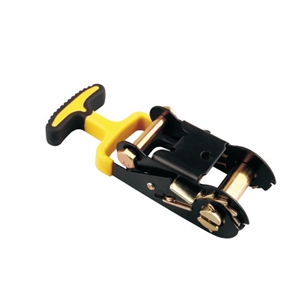

RB50Y

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	250 mm

Code: 408005015

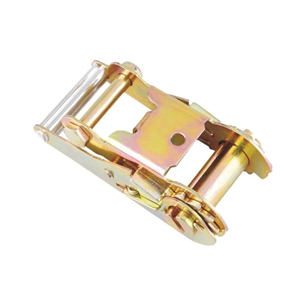

RB50T

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	170 mm

Code: 408005016

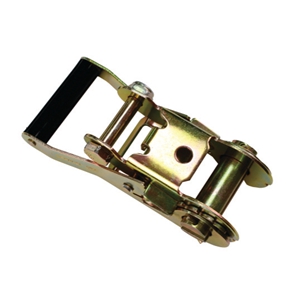

RB50M

BS: 5,000kg

A:	52 mm
B:	57 mm
C:	197 mm

Code: 408005017

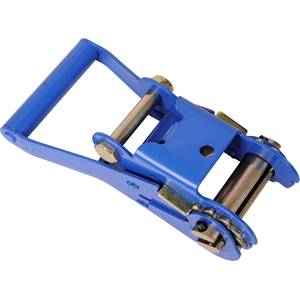

RB50Q (6T)

BS: 6,000kg

A:	52 mm
B:	67 mm
C:	210 mm

Code: 408005018

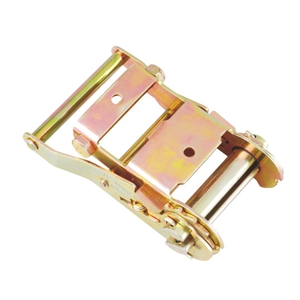

RB50X (2T Short)

BS: 2,000kg

A:	52 mm
B:	40 mm
C:	133 mm

Code: 408005019

Medium Duty Buckles (38mm - 35mm)

RB38A

BS: 3,000kg

A:	39 mm
B:	49 mm
C:	165 mm

Code: 408003801

RB38B

BS: 3,000kg

A:	38 mm
B:	49 mm
C:	150 mm

Code: 408003802

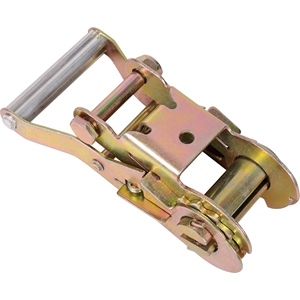

RB38J

BS: 3,000kg

A:	38 mm
B:	40 mm
C:	155 mm

Code: 408003803

RB38D

BS: 3,000kg

A:	38 mm
B:	40 mm
C:	150 mm

Code: 408003804

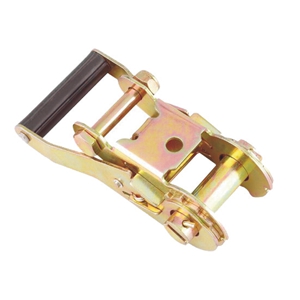

RB38W

BS: 3,000kg

A:	38 mm
B:	49 mm
C:	155 mm

Code: 408003805

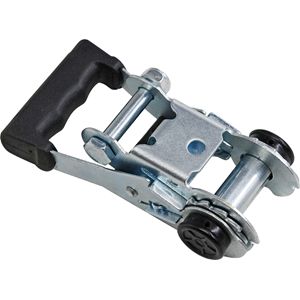

RB38E

BS: 2,500kg

A:	38 mm
B:	45 mm
C:	160 mm

Code: 408003806

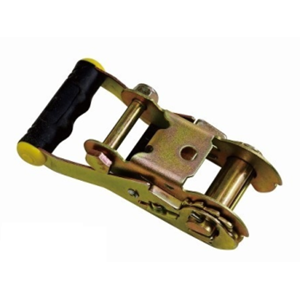

RB38F

BS: 2,500kg

A:	38 mm
B:	45 mm
C:	160 mm

Code: 408003807

RB38C

BS: 2,000kg

A:	38 mm
B:	40 mm
C:	135 mm

Code: 408003808

RB38D (2T)

BS: 2,000kg

A:	38 mm
B:	40 mm
C:	155 mm

Code: 408003809

RB34A

BS: 1,500kg

A:	34 mm
B:	45 mm
C:	155 mm

Code: 408003810

RB38G

BS: 2,000kg

A:	38 mm
B:	40 mm
C:	140 mm

Code: 408003811

RB38H

BS: 2,000kg

A:	38 mm
B:	40 mm
C:	155 mm

Code: 408003812

Light Duty Buckles (28mm - 25mm)

RB28L

BS: 1,500kg

A:	28 mm
B:	45 mm
C:	126 mm

Code: 408002801

RB28W

BS: 1,500kg

A:	28 mm
B:	45 mm
C:	120 mm

Code: 408002802

RB28B

BS: 1,500kg

A:	28 mm
B:	45 mm
C:	126 mm

Code: 408002803

RB28H

BS: 1,500kg

A:	28 mm
B:	45 mm
C:	130 mm

Code: 408002804

RB28Y

BS: 1,500kg

A:	28 mm
B:	45 mm
C:	126 mm

Code: 408002805

RB25A

BS: 800kg

A:	25 mm
B:	40 mm
C:	115 mm

Code: 408002501

RB25B

BS: 800kg

A:	26 mm
B:	40 mm
C:	115 mm

Code: 408002502

RB25F

BS: 1,000kg

A:	26 mm
B:	40 mm
C:	115 mm

Code: 408002503

RB25C

BS: 800kg

A:	26 mm
B:	40 mm
C:	115 mm

Code: 408002504

RB25D

BS: 800kg

A:	26 mm
B:	40 mm
C:	115 mm

Code: 408002505

RB25E

BS: 800kg

A:	26 mm
B:	40 mm
C:	115 mm

Code: 408002506

Tensioning Device and End Fittings, China Supplier
