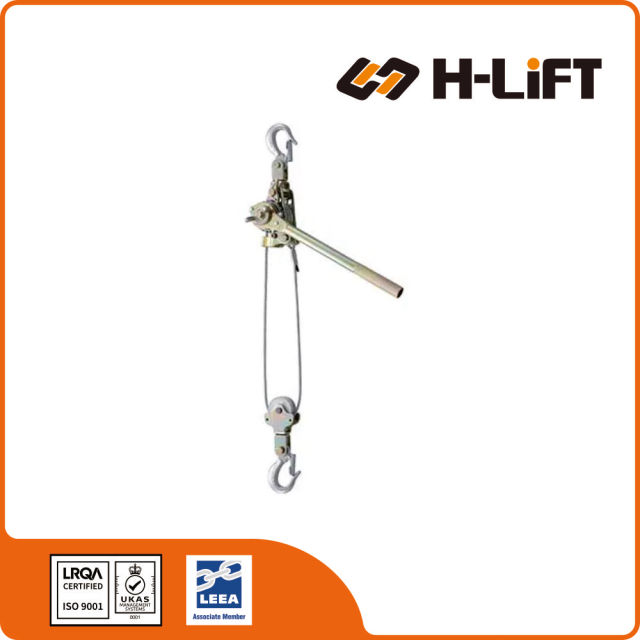

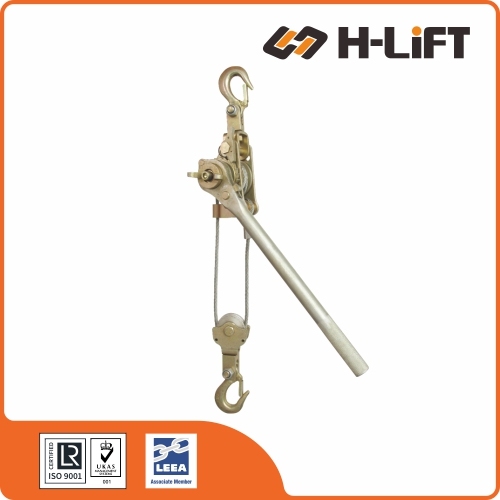

The H-Lift WRP Type Ratchet Puller is a wire-rope tensioning device designed for conductor and cable installation in electrical distribution and telecommunication industries. Available in 1t, 1.5t, and 2t capacities with adjustable lengths, it features a heavy-duty ratchet mechanism with 360° handle rotation and fast advance system for efficient cable tensioning.
The WRP Series Ratchet Puller (Power Puller) is a versatile tensioning tool designed for the electricity, telecommunications, and construction industries. It excels at horizontal pulling tasks such as tensioning conductors, tightening farm fencing, and general rigging, offering 360-degree handle operation for use in tight spaces.
Specifically designed for cable tensioning in utility industries. Also serves as the perfect tool for fencing and general construction pulling tasks.
Equipped with an automatic mechanical brake and dual pawl system, ensuring the load remains securely held whether pulling or releasing.
The handle rotates a full 360 degrees, allowing for easy operation in confined spaces or at awkward angles where standard lever hoists cannot fit.
Constructed with a drop-forged steel frame and high-strength aircraft-grade wire rope for maximum durability and safety.
| Item No. | Capacity (t) | Max. Length (mm) | Min. Length (mm) | Cable Size (mm) | Weight (kg) | Product Code |
|---|---|---|---|---|---|---|
| WRP-10 | 1 | 1210 | 410 | 5 | 3.2 | 421100010 |
| WRP-15 | 1.5 | 1400 | 480 | 6 | 4.2 | 421100015 |
| WRP-20 | 2 | 1400 | 480 | 6 | 4.3 | 421100020 |
