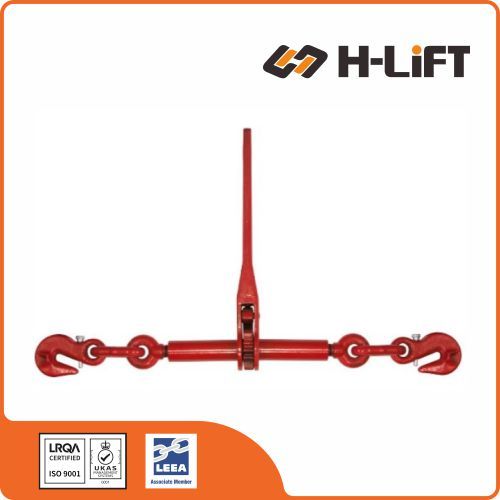

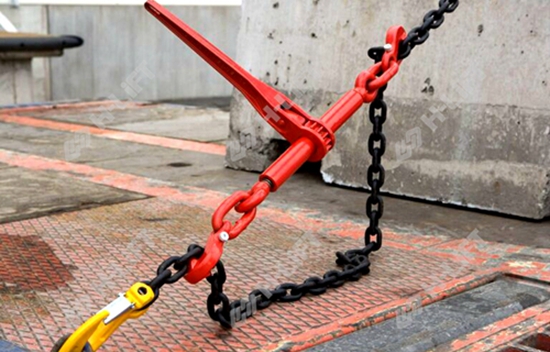

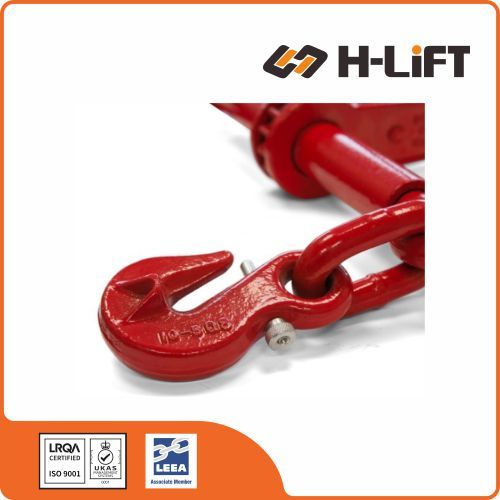

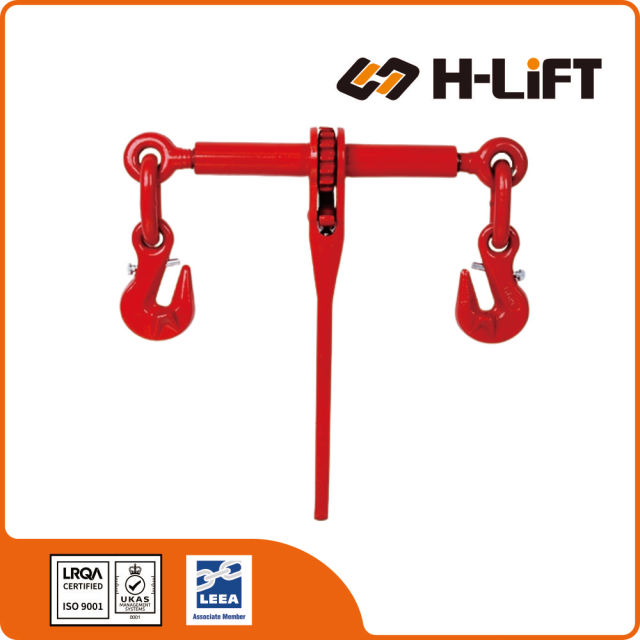

The Ratchet-Type Load Binder with Winged Grab Hooks and Safety Pins provides controlled tensioning for transport chains, offering enhanced connection security for heavy cargo on flatbeds and trailers.

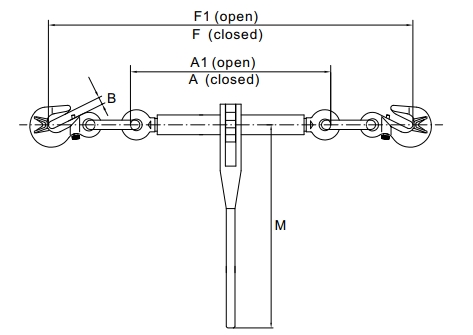

*Refer to table below for dimensions A-M
| Item No. | Chain Size (mm) |
Lashing Capacity (LC) (kN) |
Min. Break Force (MBF) (kN) |
Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A1 | B | F | F1 | M | ||||||
| ELBH08 | 8 | 40 | 80.4 | 355 | 520 | 11.5 | 575 | 740 | 355 | 4.5 | 411101008 |
| ELBH10 | 10 | 63 | 126 | 355 | 520 | 15 | 615 | 780 | 355 | 5.5 | 411101010 |
| ELBH13 | 13 | 100 | 212 | 361 | 516 | 19.5 | 695 | 850 | 355 | 8 | 411101013 |
| ELBH16S | 16 | 160 | 322 | 372 | 532 | 19.5 | 740 | 900 | 355 | 10 | 411100916 |
The relevant standard is BS EN 12195-3: 2001. This requires:
Note: Lashing Capacity (LC) is expressed in daN (decaNewton). 1 daN ≈ 1 kg.
Ensure the load binder (tensioner) is free to align and not bent over an edge. The chain must not be twisted. Hooks must engage correctly. Sharp Edges: If using over small radius edges without protection, the lashing capacity MUST be reduced according to manufacturer instructions.
Hydrogen Embrittlement: Never expose chains to acids. If contaminated, clean with clear water and dry naturally.
Rejection Criteria: Do not use if you find illegible markings, bent/elongated links, distorted hooks, or missing safety latches.
Storage: Store in a clean, dry area, hanging up if possible to prevent corrosion and contamination.
