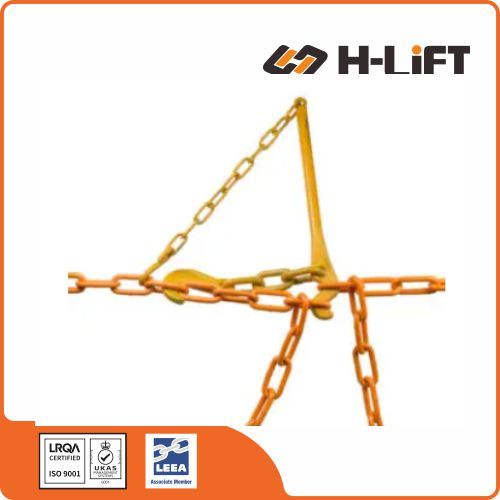

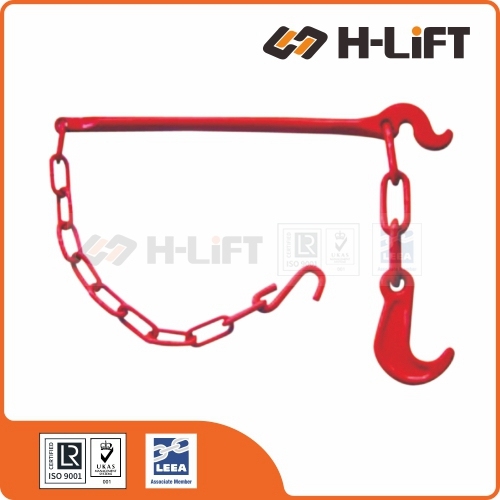

The Ro-Ro Lashing Chain Tensioner from H-Lift is a high-tensile steel lever device for securely tensioning cargo lashing chains during roll-on/roll-off transport. Available for 9mm (10t BL), 11mm (15t BL), and 13mm (20t BL) chains, it shortens chain length efficiently to maintain proper tension on heavy loads.
The Ro-Ro Chain Tensioner is a heavy-duty marine binder designed for the rapid securing of vehicles and cargo on Roll-on/Roll-off vessels. Featuring a lever-action "Speed Lash" mechanism, it allows for significantly faster operation than traditional ratchet binders, which is critical for meeting tight vessel turnaround times.
Lever-action design allows for instant locking and releasing. This speed is essential for high-volume loading operations on ship decks.
Manufactured from High Tensile Steel with a specialized finish to withstand harsh marine environments, including salt spray and high humidity.
Available in 10T, 15T, and 20T breaking loads. Provides a high safety margin for securing heavy trucks, trailers, and machinery during transit.
Compatible with standard marine lashing chains (9mm, 11mm, 13mm). The specialized hook design prevents disengagement even during heavy rolling at sea.

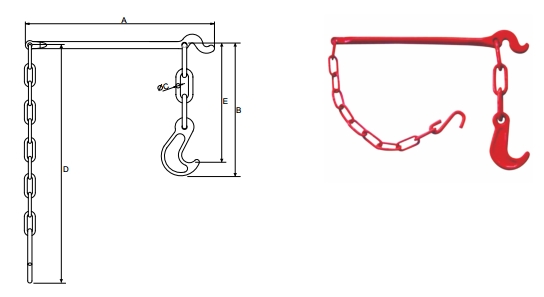

| Item No. | Chain Size (mm) | Breaking Load (t) | Dimensions (mm) | Weight (kg) | Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| CT0910 | 9 | 10 | 585 | 280 | 10 | 600 | 240 | 3.2 | 413001009 |
| CT1115 | 11 | 15 | 600 | 340 | 12 | 600 | 290 | 4.5 | 413001011 |
| CT1320 | 13 | 20 | 580 | 400 | 14 | 600 | 350 | 5.6 | 413001013 |
A lashing chain tensioner, also known as a chain tensioner or a chain binder, is a mechanical device used to tighten and secure lashing chains when securing cargo during transportation.
Its primary purpose is to provide tension to the chain, ensuring that the cargo remains stable and tightly held in place during transit.

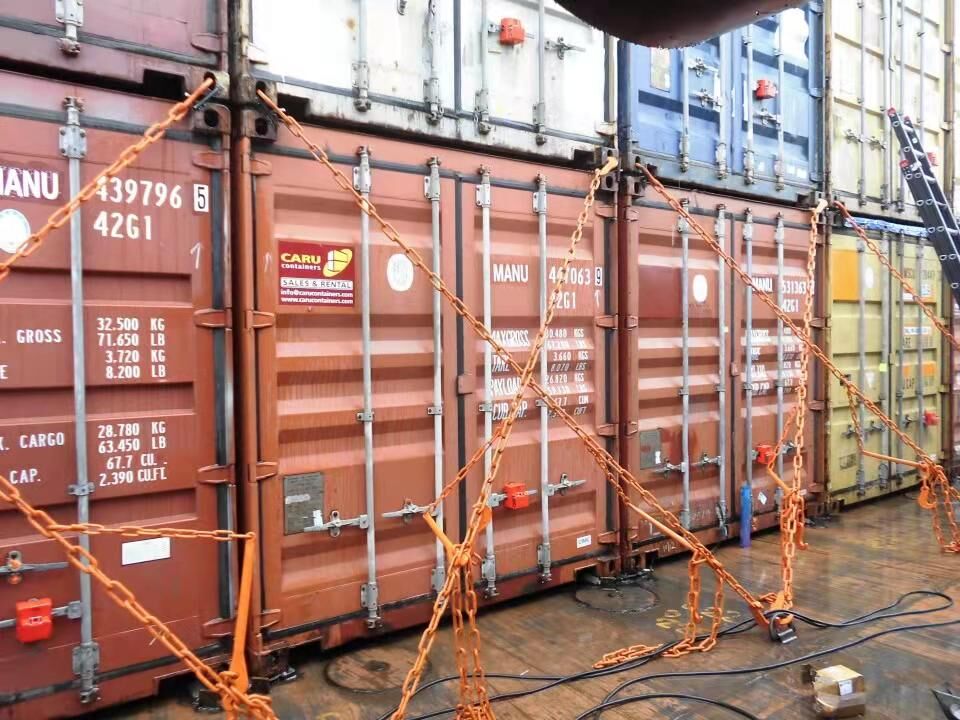

Lashing chains are essential for securing heavy or oversized cargo on:
Proper tightening prevents cargo from shifting, sliding, or becoming loose, which protects against accidents and cargo loss.
The tensioner typically consists of a ratcheting mechanism. This allows the user to pull the chain through the device and apply significant tension by leveraging the handle.
This mechanical action tightens the chain around the cargo, creating a secure and stable hold that manual pulling cannot achieve.
Follow Instructions: It is essential to follow the manufacturer's guidelines. Over-tightening can damage the cargo or equipment, while under-tightening can result in load failure.
Equipment Matching: Always ensure that the lashing chains, hooks, and tensioners used are rated appropriately for the weight and size of the cargo being transported.
Compliance: Make sure to comply with relevant transport safety regulations and best practices to ensure a safe and successful operation.
