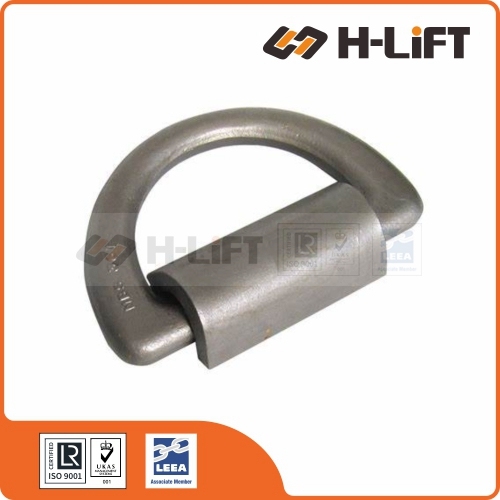

The H-Lift D-Ring with Wrap provides robust anchor points for cargo securing on ships, trailers, and decks. Available in 20t (DW1920), 36t (DW2336), and 50t (DW2650) MBL capacities, these forged 40Cr rings with Q235 wrap plates are designed for C-hook lashing chains in Ro-Ro and general cargo applications.
The Ro-Ro Lashing D-Ring Set is a complete heavy-duty securing point designed for permanent installation on ship decks and trailers. Featuring a forged alloy steel D-Ring and a weldable structural steel strap (wrap), it provides a secure, articulating anchor point capable of handling extreme loads ranging from 20 to 50 tonnes.
Supplied as a set featuring a Forged D-Ring and a Weld-on Wrap. The wrap creates a secure hinge, allowing 180-degree articulation while keeping a low profile when idle.
Ring (40Cr): Forged alloy steel for maximum strength.
Wrap (Q235): Structural steel designed for reliable welding to steel decks.
Available in Minimum Breaking Loads (MBL) of 20T, 36T, and 50T. Suitable for securing passenger cars, heavy project cargo, and even battle tanks.
Wide inner dimensions accommodate standard C-Hooks, Elephant Foot lashings, and heavy-duty webbing hooks with ease.

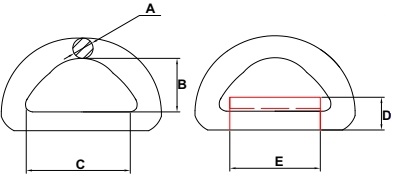

| Item No. | MBL (t) | Main Dimensions (mm) | Weight (kg) | Product Code | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| DW1920 | 20 | 19 | 89 | 90 | 28 | 80 | 1.3 | 414011920 |
| DW2336 | 36 | 23 | 76 | 134 | 38 | 120 | 2.5 | 414012336 |
| DW2650 | 50 | 26 | 80 | 150 | 47 | 130 | 4.2 | 414012650 |
The Lashing Chain with C-Hook and D-Ring is a robust cargo securing assembly specifically designed for the transportation industry. By combining high-strength chain with specialized attachment hardware, this system ensures that heavy cargo remains stable and safe on flatbed trailers, ships, and other cargo-carrying vehicles.
A robust and durable chain designed for securing cargo. Manufactured from high-strength steel, these chains are available in various lengths and weight capacities to accommodate different cargo sizes and operational requirements.
Named for its "C" shape, this hook is designed to easily latch onto specific points on the cargo or transportation equipment. It provides a quick and reliable connection method for lashing operations.
A "D" shaped hardware piece typically welded or attached to the vehicle structure (trailer or ship deck). It acts as the primary anchor point, allowing chains to be tied down securely to prevent load shifting.
The system works by creating a secure link between the transport vehicle and the cargo:
