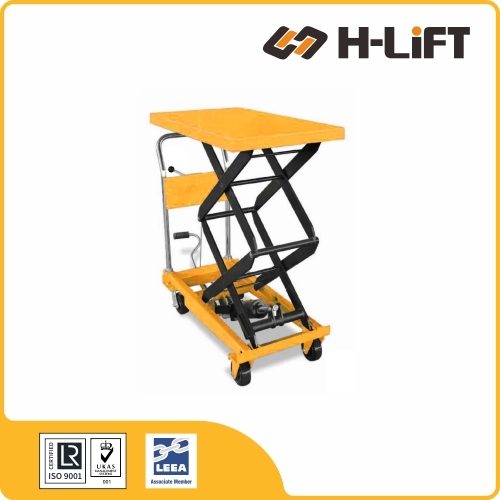

The H-Lift TUS Scissor Lift Table is a high-reach manual lifting platform designed to improve ergonomics in workshops and assembly lines. Its specialized double-scissor mechanism enables significant vertical travel without sacrificing stability, making it an ideal mobile workstation for handling materials at elevated heights where standard single-scissor tables fall short.

Double-scissor design provides extended lift heights up to 1700mm
Available in capacities ranging from 350kg to 1000kg
Hydraulic foot pedal operation for easy, ergonomic lifting
High-quality polyurethane wheels with brakes for secure positioning
Robust steel construction ensures durability and stability

Technical Data
Scissor Lift Table

The TUS Series Double Scissor Lift Table is designed for applications requiring higher lifting heights than standard single-scissor models. Featuring a robust double-scissor mechanism and manual hydraulic operation, it provides a stable and mobile solution for lifting loads up to 1700mm.

⬆️ High Reach Capability

Features a Double Scissor mechanism (vertical stacking) that allows for significantly higher lifting heights (up to 1.7m) while maintaining a compact footprint.

⚙️ Manual Hydraulic

Operated via a precision hydraulic foot pump for effortless lifting. Includes a Hand Release Lever for smooth, controlled lowering. No electricity required.

🛡️ Safety Features

Equipped with an Overload Bypass Valve to protect the pump and Safety Restraint Bars (maintenance blocks) to lock the platform during service.

🚚 Mobile & Durable

Mounted on high-quality PU casters (2 swivel with brakes, 2 fixed). Finished in Safety Yellow powder coating for high visibility.

Q: What is the advantage of a double scissor lift table? A: A Double Scissor mechanism (vertical scissors stacked on top of each other) allows the table to reach much greater heights compared to single scissor lifts, without increasing the platform length.

Q: How is the table powered? A: The TUS series is manually operated. You pump the foot pedal to lift the load and use the hand lever to lower it. No batteries are required.

Technical Specifications

← Swipe table left and right to view all data →

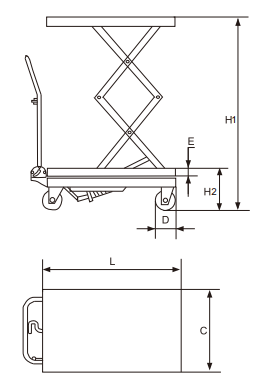

Item No.	Capacity	Max. Lift Height (H2)	Min. Height (H1)	Table Dimensions (L x C x E)	Wheel Dia (D)	Pedal Cycles to Max. Height	Weight	Carton Size	Product Code
Item No.	Capacity	mm	mm	mm	mm	Pedal Cycles to Max. Height	Weight	Carton Size	Product Code
TUS035	350 kg	1400	415	905 x 510 x 55	125	55	110 kg	1100x600x440	804002035
TUS050	500 kg	1700	500	1200 x 610 x 60	150	80	160 kg	1400x700x490	804002050
TUS080	800 kg	1500	470	1200 x 610 x 60	150	70	170 kg	1400x700x490	804002080
TUS100	1000 kg	1700	500	1200 x 610 x 60	150	80	190 kg	1400x700x490	804002100

Hydraulic Scissor Lift Tables

Ergonomic Lifting Solutions for Material Handling

What is a Scissor Lift Table?

A Scissor Lift Table (also known as a hydraulic lift cart or platform trolley) is a mobile lifting device equipped with a scissor-like mechanism that raises and lowers a platform to a desired height. Powered by a hydraulic foot pump, these tables are indispensable tools in workshops, warehouses, and assembly lines.

They are primarily designed to position loads at an ergonomic working height, reducing back strain caused by bending and lifting heavy objects manually.

Main Types: TEN vs. TUS Series

Scissor lift tables are generally categorized by the number of scissor mechanisms they employ, which determines their maximum lifting height.

Single Scissor Lift (for Europe)

Example: TEN Series (Standard Models)

Features a single set of "X" legs. Ideal for general lifting tasks where the load needs to be raised to waist height (approx. 800mm - 1000mm).

✔ Most stable configuration.
✔ Best for heavy loads (up to 1000kg).

Double/Triple Scissor Lift (For US)

Example: TUS Series (TUS350, TUS500)

Features multiple sets of scissors stacked vertically. This design allows for much higher lifting ranges (up to 1500mm or 1700mm) while maintaining a compact footprint.

✔ Ideal for reaching high shelves or workbenches.
✔ Slightly lower weight capacity due to higher center of gravity.

Key Design Features

Hydraulic System: Rugged hydraulic pump operated by a foot pedal. Features a chrome-plated piston for durability.
Mobility: Standard models come with high-quality Polyurethane (PU) wheels (2 swivel with brakes, 2 fixed) for smooth, quiet rolling and floor protection.
Controlled Lowering: A hand-operated release lever (located on the push handle) allows for precise, variable-speed lowering of the load.
Safety Stops: Wheel brakes ensure the table remains stationary during loading and unloading.

How to Operate

Step-by-Step Guide
Brake: Always engage the wheel brakes before lifting or loading.
Load: Place the load evenly on the center of the platform. Avoid corner loading.
Lift: Pump the foot pedal repeatedly. The hydraulic cylinder will extend, pushing the scissor legs open and raising the platform.
Transport: Disengage brakes and push the table to the desired location using the handle. Keep the load low during transport for stability.
Lower: Squeeze the release lever on the handle. The table will descend gently. Release the lever to stop the descent at any height.

Safety Precautions & Maintenance

⚠ WARNING: Pinch Points

The scissor mechanism creates severe pinch points. Keep hands and feet clear of the scissor legs while the table is moving. Never reach under the platform unless the safety maintenance bars are engaged.

Daily Checks:

Oil Leaks: Check the hydraulic cylinder for any signs of fluid leakage.
Wheel Condition: Ensure wheels roll smoothly and free of debris. Check that brakes function correctly.
Smooth Operation: The table should lift without jerking and lower at a steady rate. If it feels "spongy," the hydraulic system may need air bleeding.
Overloading: Never exceed the rated capacity (W.L.L.). For high-lift models (TUS type), be extra careful with stability when the load is fully raised.
