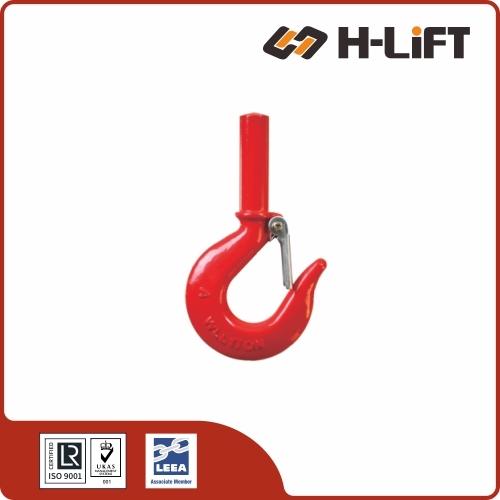

The H-Lift Shank Hook with Latch is a forged lifting hook featuring an unthreaded shank that allows custom threading for specific mounting and rigging applications.
The Shank Hook with Latch is a versatile lifting component designed for customization. Featuring an unthreaded shank, it is ideal for machining to fit crane blocks, hoists, and lifting beams. Available in economical Carbon Steel (Grade 43) for general lifting or high-strength Alloy Steel (Grade 70) for heavy-duty applications.
Carbon Steel (0.75 - 10T): 5:1 Safety Factor. Cost-effective for general use.
Alloy Steel (1 - 15T): 4.5:1 Safety Factor. High strength for heavy-duty cycles.
Features a straight, unthreaded shank that allows users to machine threads or specific dimensions, ensuring a perfect fit for custom equipment like crane blocks.
Equipped with a durable, spring-loaded safety latch to prevent accidental disengagement of the load, ensuring secure lifting operations.
Drop forged, quenched, and tempered for maximum durability and shock resistance. Finished with a powder coat or paint for corrosion protection.

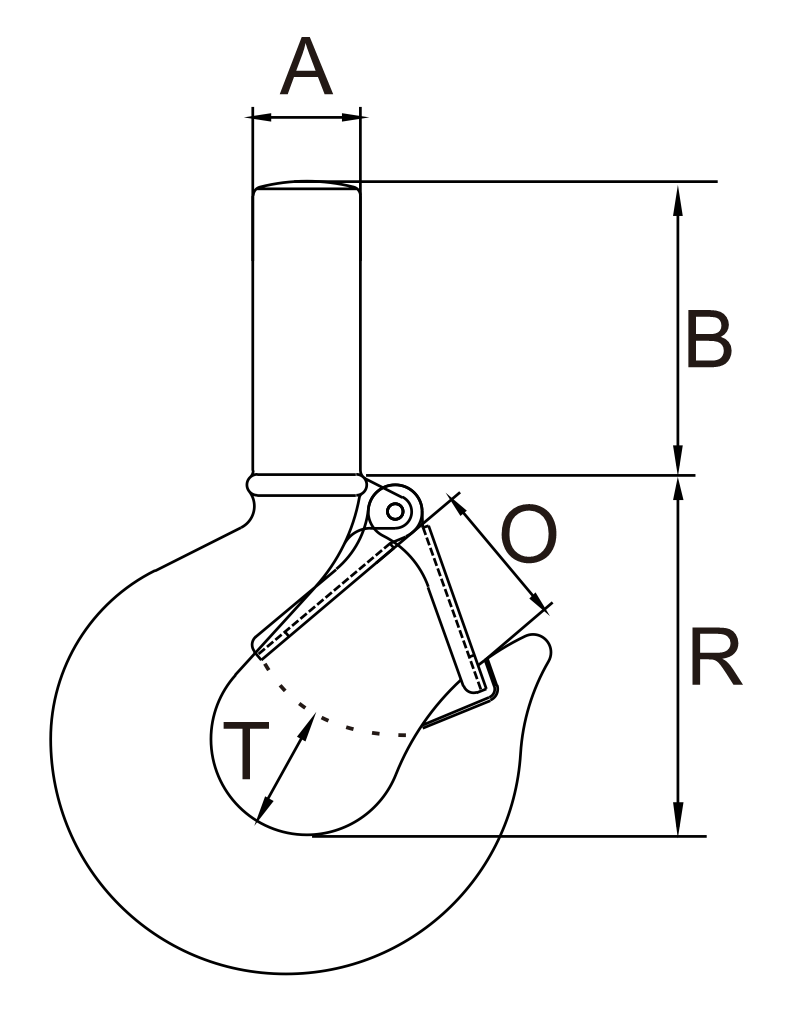

| Item No. | W.L.L. (ton) | Dimensions (inch) | Weight | Product Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | Carbon | Alloy | A | B | O | R | T | (lbs) | |
| HK0801C | HK0801A | 3/4 | 1 | 0.59 | 2.00 | 0.88 | 2.28 | 0.81 | 0.52 | 703008001 |
| HK0802C | HK0802A | 1 | 1-1/2 | 0.66 | 2.25 | 0.97 | 2.53 | 0.81 | 0.77 | 703008002 |
| HK0803C | HK0803A | 1-1/2 | 2 | 0.72 | 2.50 | 1.00 | 2.69 | 0.84 | 1.03 | 703008003 |
| HK0804C | HK0804A | 2 | 3 | 0.88 | 2.75 | 1.12 | 3.06 | 1.19 | 1.88 | 703008004 |
| HK0805C | HK0805A | 3 | 4-1/2 | 1.16 | 3.25 | 1.34 | 3.78 | 1.38 | 3.91 | 703008005 |
| HK0806C | HK0806A | 5 | 7 | 1.41 | 3.75 | 1.69 | 4.75 | 1.78 | 7.36 | 703008006 |
| HK0807C | HK0807A | 7-1/2 | 11 | 1.69 | 4.25 | 2.06 | 5.88 | 2.12 | 13.17 | 703008007 |
| HK0808C | HK0808A | 10 | 15 | 1.75 | 4.50 | 2.28 | 6.41 | 2.52 | 19.55 | 703008008 |
