Spring Load Binder SLB type

Name: Spring Load Binder SLB type
Brand: H-Lift Industries Co Ltd
SKU: 411003
Availability: InStock
Rating: 5 (1 reviews)

No.411003

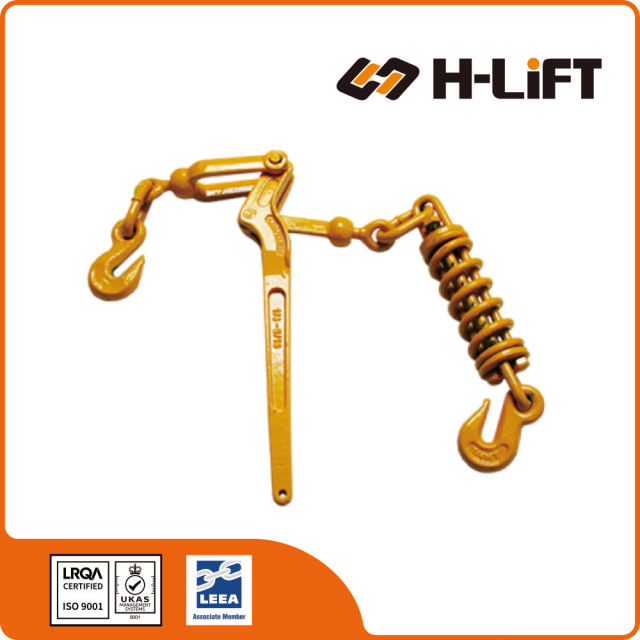

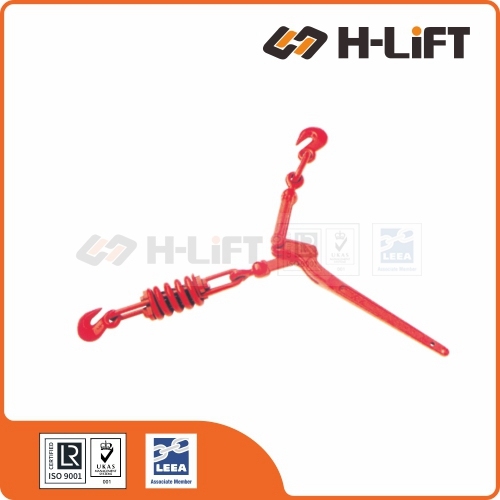

The Spring Load Binder (SLB Type) is a heavy-duty, lever-style chain tensioning device equipped with a built-in spring mechanism, engineered for the safe and secure lashing of heavy cargo across road, rail, air, and marine transport.

Shock-Absorbing Spring: Features an integrated spring cushion designed to absorb road shock and load sway during transit, actively protecting both the cargo and the lashing chain from sudden dynamic stress.
Forged Steel Construction: Manufactured from high-quality forged steel to guarantee maximum structural integrity, durability, and long-lasting performance in demanding commercial environments.
Safe Lever Mechanism: Operates using a specialized lever-type design that toggles away from the load, allowing operators to apply and lock in maximum tension safely and efficiently.
Heavy-Duty Capacity: Designed to accommodate standard 5/16" to 1/2" transport chains, delivering robust Working Load Limits (WLL) ranging from 5,400 lbs to 9,200 lbs, with each individual binder rigorously proof-tested.

Technical Data

Spring Loaded Lever Binders

Shock Absorbing Load Binders with Dynamic Tension

WLL up to 9,200 lbs Spring Loaded Shock Absorbing Prevents Snap-Back

Product Features

Dynamic Tension Control: Unlike standard rigid binders, the integrated heavy-duty spring continuously adjusts to load shifting and settling, ensuring the chain remains tight throughout the entire journey.
Shock Absorption: Specifically designed to cushion impact loads caused by potholes, rough terrain, or sudden braking, protecting both the cargo and the vehicle chassis from damage.
Enhanced Safety: The spring mechanism reduces the violent "snap-back" often associated with opening standard lever binders, providing a safer operation for the driver.
Heavy Duty Performance: With Working Load Limits up to 9,200 lbs, these binders are built to secure heavy machinery, military equipment, and critical industrial loads.

Technical Specifications

Item No.	Chain Size (inch)	WLL (lbs)	Proof Load (lbs)	MBL (lbs)	Weight (lbs)	Handle (inch)	Dimensions (inch)							Product Code

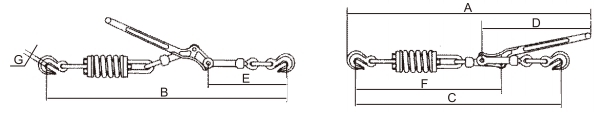

Item No.	Chain Size (inch)	WLL (lbs)	Proof Load (lbs)	MBL (lbs)	Weight (lbs)	Handle (inch)	A	B	C	D	E	F	G	Product Code
SLB10	5/16 - 3/8	5,400	10,800	19,000	14.57	15.43	32.3	33	29.06	15.43	11.22	20.5	0.51	411003038
SLB13	3/8 - 1/2	9,200	18,400	28,000	19.81	17.24	37	35.83	31.49	17.64	12.99	18.7	0.59	411003012
