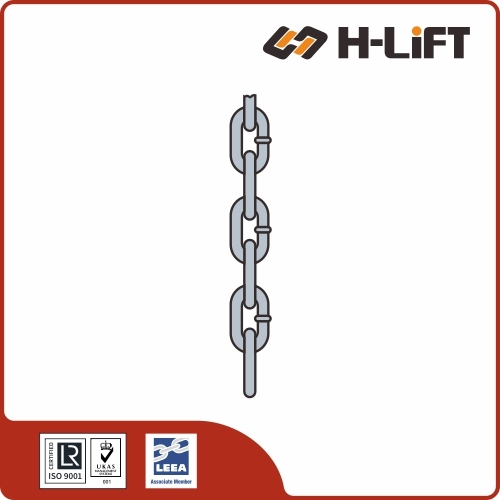

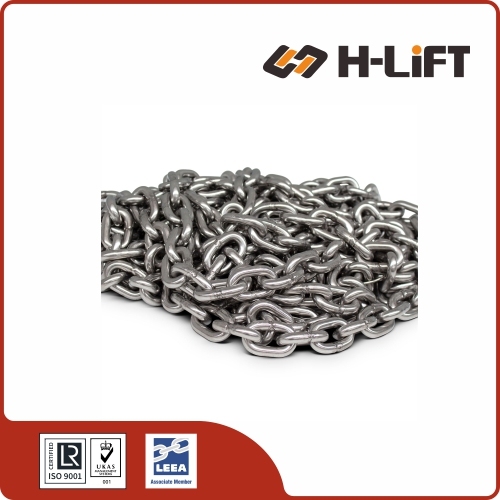

The H-Lift Stainless Steel DIN 5685 Short Link Chain is a welded, uncalibrated round steel chain designed for general-purpose, non-lifting applications requiring excellent corrosion resistance.
Manufactured from premium stainless steel, making it highly suitable for harsh environments like marine, agriculture, and light-duty mooring.
Short link configuration (Form A) provides greater density and flexibility compared to long link chains of the same diameter.
Available in various link diameters ranging from 3mm to 13mm to accommodate diverse lashing, securing, and architectural requirements.
Designed specifically for static loading and general utility; it is neither tested nor calibrated for overhead lifting or hoisting operations.
The Stainless Steel DIN 5685 Short Link Chain is a highly durable, commercial-grade round steel chain. Designed with compact "Type A" links, it offers excellent flexibility and handles lateral forces better than long link chains. Available in premium AISI 304 and AISI 316 stainless steel to provide outstanding rust protection in outdoor and marine environments.
⚠️ SAFETY WARNING: NOT FOR OVERHEAD LIFTING. This chain is an uncalibrated, non-tested commercial product. It is NOT rated for overhead lifting, industrial hoists, or any critical safety applications involving suspended loads or personnel.
✅ Standard Compliance
Manufactured strictly to the German DIN 5685 Type A standard for welded, round steel short link chains, ensuring consistent geometry and quality.
🛡️ Premium Material Grades
AISI 304: Perfect for general engineering, agriculture, and outdoor industrial use. AISI 316: Provides superior corrosion resistance, essential for marine environments and saltwater exposure.
🔗 Short Link Design
The compact "short link" structure offers superior flexibility, making it easier to wrap around tight corners and handle lateral stresses effectively without link binding.
🛠️ General Purpose Utility
Designed as an uncalibrated, highly versatile chain. Ideal for lashing, tying down equipment, agriculture, boundary marking, and light-duty boat mooring.
Q: What is the difference between DIN 5685 Short Link (Type A) and Long Link (Type C)?A: Type A (Short Link) has smaller, more compact links. It is heavier per meter, more flexible, and handles lateral forces better. Type C (Long Link) has elongated links, making it lighter per meter and easier to pass shackles or hooks through any link in the chain.
Q: Can I use this chain for an industrial hoist?A: No. DIN 5685 stainless steel chains are uncalibrated and not proof-tested. They are commercial chains meant for general-purpose tie-downs and securing, and must never be used for hoists or overhead lifting.
SEO Keywords: stainless steel short link chain, DIN 5685-A chain, AISI 316 marine chain, AISI 304 stainless chain, commercial steel chain, uncalibrated chain, mooring chain, flexible stainless chain
Chain Grade Guide
What is the Difference Between Welded Chain Grades?
🚫 Carbon Steel ChainGrades 30, 43, 70 Used for tie-downs, towing, and securement. NEVER used for overhead lifting.
✅ Alloy Steel ChainGrades 80, 100 Specifically designed and heat-treated for Overhead Lifting and Sling Assemblies.
How is "Grade" Calculated?
The grade number represents the chain's tensile strength (mean stress value). It is calculated by dividing the tensile force (Newtons) by the cross-sectional area of the two links ($mm^2$).
As the Grade Increases:
The material becomes harder and more resistant to abrasion.
The Strength-to-Weight ratio increases (more lifting power, less weight).
The Working Load Limit (WLL) increases significantly.
Towing, general utility, load securement. Stronger than G30.
NO
Grade 70 (Transport)
Heat-Treated Carbon
Heavy Duty Securement. Standard for trucking tie-downs. Identified by Gold/Yellow finish.
NO
Grade 80 (Alloy)
Alloy Steel
Standard Lifting Slings. High ductility (stretch) to absorb shock.
YES
Grade 100 (Premium)
Alloy Steel
Heavy Lifting. 25% stronger than G80. Harder surface for abrasion resistance.
YES
Common Problems & Critical Safety Warnings
Even with the correct grade, misuse can lead to catastrophic failure. Ensure your riggers are trained to avoid these three common hazards:
⚠️ 1. The Hoist Chain Trap
A frequent and dangerous mistake is using the load chain inside a hoist to wrap around a load.
The Design: Hoist load chain is hardened specifically to fit internal sprockets (tight tolerances). It lacks the ductility (stretch) required for a sling.
The Risk: Wrapping it around a load deforms the links. When retracted, the deformed links can snap or destroy the internal hoist mechanism.
⚠️ 2. The "Gold Chain" Error
Using Grade 70 (Gold) chain for overhead lifting is a common error because the chain looks robust.
Why it Fails: Grade 70 is heat-treated for abrasion resistance (for rubbing against truck beds), not for the elongation needed to absorb the dynamic shock of a crane lift. It may snap suddenly without warning.
⚠️ 3. General Neglect
Alloy chain is tough, but not invincible. Proper storage and inspection are vital.
Corrosion: Leaving chain on damp shop floors promotes pitting and stress corrosion cracking.
Inspection: Chains must be inspected regularly for nicks, gouges, and elongation (stretching).
