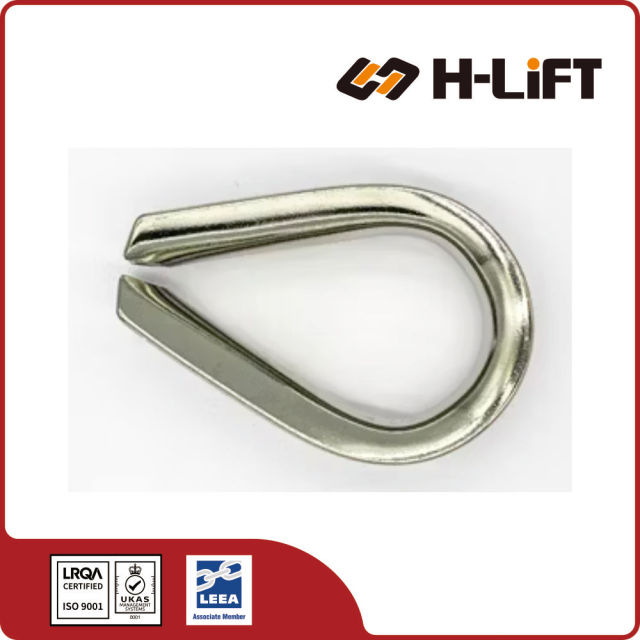

The H-Lift Stainless Steel Italian Type Wire Rope Thimble is a commercial-grade rope protector manufactured from AISI 316 (A4) marine-grade stainless steel. Designed to protect wire rope eyes from wear, abrasion, and deformation, these thimbles are ideal for marine, coastal, and outdoor rigging applications, available in sizes from 2mm to 36mm.
The Italian Type Wire Rope Thimble is a lightweight, aesthetically refined solution for cable eye protection. Manufactured from high-quality stainless steel, it is specifically designed for non-critical, static, or architectural applications where marine-grade corrosion resistance and a polished finish are required.
Features a high-quality polished finish, making it ideal for visible architectural rigging like balustrades and green walls.
Available in AISI 316 for maximum saltwater resistance or AISI 304 for standard outdoor architectural use.
Provides a smooth bearing surface to protect wire rope from crushing and abrasion when connected to hardware.
An economical lightweight solution for commercial projects where heavy-duty load ratings are not a priority.
Q: What is the difference between Italian Type and DIN 6899 thimbles?
A: Italian Type thimbles use a lighter gauge metal. While preferred for architectural or commercial use, heavy-duty DIN 6899B types are used for industrial lifting.
Q: Can I use Italian Type thimbles for overhead lifting?
A: No. These are best suited for static loads, guy wires, and landscaping. For overhead lifting, please use US G-414 or DIN standard thimbles.
| Item No. | Size (mm) | Weight (kg/100pcs) | Product Code | Item No. | Size (mm) | Weight (kg/100pcs) | Product Code |
|---|---|---|---|---|---|---|---|
| S-T020 | 2 | 0.11 | 704131020 | S-T140 | 14 | 10.30 | 704131140 |
| S-T025 | 2.5 | 0.15 | 704131025 | S-T160 | 16 | 12.40 | 704131160 |
| S-T030 | 3 | 0.38 | 704131030 | S-T180 | 18 | 16.00 | 704131180 |
| S-T040 | 4 | 0.53 | 704131040 | S-T200 | 20 | 26.60 | 704131200 |
| S-T050 | 5 | 0.70 | 704131050 | S-T220 | 22 | 32.60 | 704131220 |
| S-T060 | 6 | 0.96 | 704131060 | S-T240 | 24 | 45.10 | 704131240 |
| S-T080 | 8 | 2.10 | 704131080 | S-T280 | 28 | 73.90 | 704131280 |
| S-T100 | 10 | 3.30 | 704131100 | S-T320 | 32 | 76.40 | 704131320 |
| S-T120 | 12 | 5.50 | 704131120 | S-T360 | 36 | 144.90 | 704131360 |
