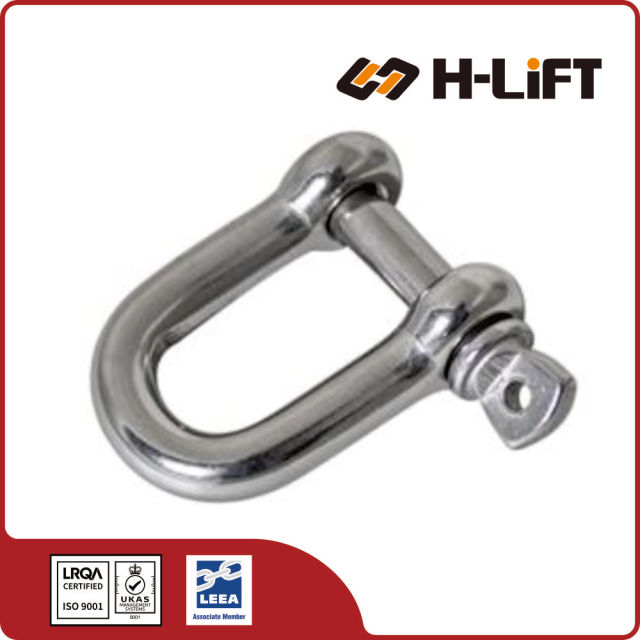

The H-Lift Stainless Steel JIS Type Dee Shackle is a "D" shaped chain shackle manufactured to Japanese Industrial Standards, designed for reliable, straight-line connections in rigging and general utility applications.
The Stainless Steel JIS Type Dee Shackle is a premium rigging component rigorously manufactured in accordance with Japanese Industrial Standards. Produced via high-quality free forging or precision casting, this straight chain shackle provides reliable linear connections for general outdoor, architectural, and severe marine environments.
Rigorously manufactured to meet Japanese Industrial Standards (JIS), ensuring excellent dimensional accuracy, reliable safety metrics, and compatibility with Asian-Pacific market specifications.
AISI 304: Excellent for general outdoor, architectural, and industrial applications.
AISI 316: Provides superior corrosion resistance, making it the preferred choice for marine, aviation, oil, gas, and saltwater use.
The narrower D-shaped profile handles linear tension perfectly. It features a standard threaded screw pin for reliable closing, allowing for fast, tool-free installation in temporary rigging applications.
Available in a wide array of sizes from 4mm up to 32mm, safely handling Working Load Limits (WLL) from a light-duty 90 kg up to a heavy-duty 4,500 kg.
| Item No. | Size (mm) | WLL (kg) | I.L. (mm) | N.W. (kg) | Product Code |
|---|---|---|---|---|---|
| S-DS004 | 4 | 90 | 14 | 0.008 | 704123004 |
| S-DS005 | 5 | 100 | 18 | 0.010 | 704123005 |
| S-DS006 | 6 | 150 | 21 | 0.023 | 704123006 |
| S-DS008 | 8 | 250 | 28 | 0.052 | 704123008 |
| S-DS010 | 10 | 500 | 35 | 0.095 | 704123010 |
| S-DS012 | 12 | 600 | 46 | 0.190 | 704123012 |
| S-DS016 | 16 | 1100 | 56 | 0.440 | 704123016 |
| S-DS020 | 20 | 1600 | 70 | 0.800 | 704123020 |
| S-DS022 | 22 | 2500 | 77 | 1.200 | 704123022 |
| S-DS025 | 25 | 3000 | 88 | 1.720 | 704123025 |
| S-DS028 | 28 | 3500 | 98 | 2.500 | 704123028 |
| S-DS032 | 32 | 4500 | 114 | 3.700 | 704123032 |
