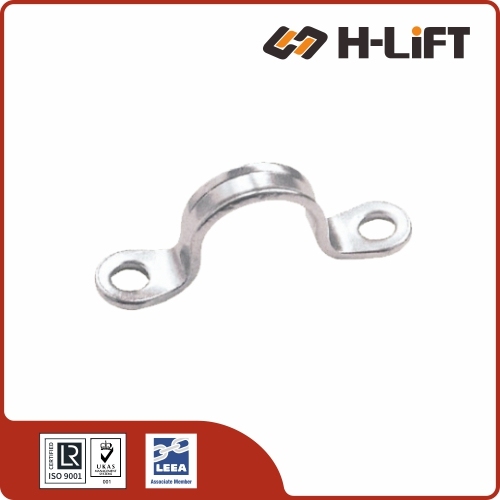

The H-Lift Stainless Steel Wire Eye Strap is a durable, low-profile anchor fitting designed to create secure attachment points on flat surfaces, posts, or walls.
The Stainless Steel Wire Eye Strap (also known as a saddle or deck loop) is a compact, low-profile anchor point designed for creating instant tie-downs on flat surfaces. Formed from a single piece of premium marine-grade wire, it features a smooth loop that acts as an excellent, friction-free guide for control leads, ropes, cables, and webbing straps.
Manufactured from high-quality AISI 316 stainless steel. This provides exceptional resistance to corrosion, rust, and chloride pitting, ensuring long-lasting reliability in harsh saltwater environments.
Designed to create an instant, highly secure anchoring point when fastened to flat surfaces, marine bulkheads, steel posts, wooden walls, or architectural panels using two screws or bolts.
The smoothly finished, polished wire loop acts as an excellent friction-free guide for control leads, ropes, wire cables, or webbing straps without causing excessive wear or fraying on the lines.
While primarily used in sailing and marine environments for securing bimini tops, dodgers, and deck lashing, they are also widely used in architectural tensioning, shade sail installations, and general outdoor utility.
| Item No. | Size | L | H | Product Code |
|---|---|---|---|---|
| (mm) | (mm) | (mm) | ||
| S-WES004 | 4 | 40 | 16 | 704135004 |
| S-WES005 | 5 | 50 | 16 | 704135005 |
| S-WES006 | 6 | 57 | 22 | 704135006 |
| S-WES008 | 8 | 63 | 25 | 704135008 |
