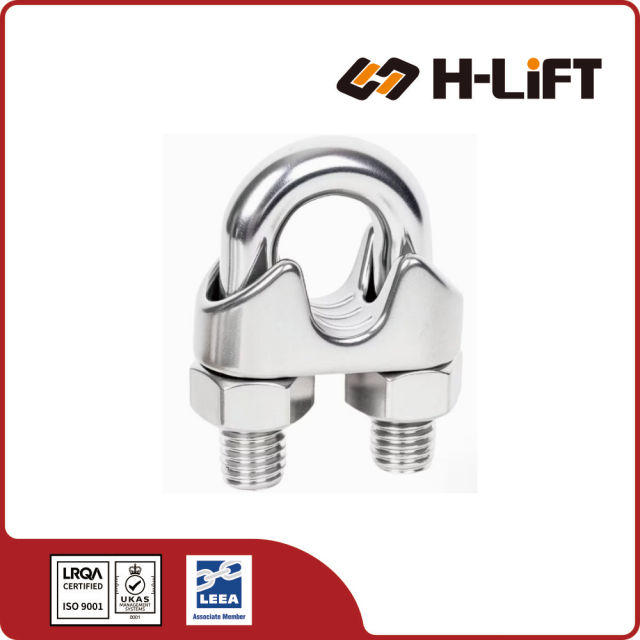

Premium stainless steel wire rope clips manufactured to U.S. Federal Specification standards. Ideal for marine, coastal, and architectural applications requiring superior corrosion resistance and long-term durability.
✓ Marine-grade AISI 304/316 stainless steel construction
✓ U.S. standard compliance with precision casting finish
✓ Available in 10 imperial sizes from 1/8" to 1"
✓ Perfect for boat rigging, cable railings, and coastal infrastructure
✓ Easy installation with complete U-bolt and saddle assembly
Precision Cast Standard Duty - Cost-Effective Solution
| Feature | Precision Cast (Type 2) - This Product | Drop Forged (Type 1) - Heavy Duty |
|---|---|---|
| Manufacturing Process | Investment casting with precision molds | Hot forging under extreme pressure |
| Metal Grain Structure | Random crystalline structure | Aligned grain flow for maximum strength |
| Strength Rating | Standard duty (suitable for static loads) | Heavy duty (higher impact resistance) |
| Surface Finish | Smoother, more polished appearance | Rougher texture from forging process |
| Cost | More economical and cost-effective | Higher cost due to forging process |
| Best Applications | Static rigging, guard rails, architectural cables, marine fittings | Lifting operations, safety-critical loads, shock loading |
Precision investment casting produces wire rope clips with excellent dimensional accuracy, smooth surfaces, and consistent quality. This manufacturing process allows for complex geometries and fine details that are difficult to achieve with other methods. The result is a clip with better aesthetic appeal, easier installation, and reliable performance for standard duty applications. While not as strong as drop forged clips for heavy impact loads, precision cast clips offer an excellent balance of quality, performance, and cost-effectiveness for the majority of rigging, architectural, and marine applications.
All weights (N.W.) are approximate net weights per piece. Imperial sizing (inches) standard for U.S. market compatibility.
| Item No. | Size (inch) | N.W. (kg) | Product Code | Item No. | Size (inch) | N.W. (kg) | Product Code |
|---|---|---|---|---|---|---|---|
| S-C0108 | 1/8 | 0.02 | 704126108 | S-C0102 | 1/2 | 0.17 | 704126102 |
| S-C0316 | 3/16 | 0.03 | 704126316 | S-C0508 | 5/8 | 0.28 | 704126508 |
| S-C0104 | 1/4 | 0.06 | 704126104 | S-C0304 | 3/4 | 0.33 | 704126304 |
| S-C0516 | 5/16 | 0.07 | 704126516 | S-C0708 | 7/8 | 0.53 | 704126708 |
| S-C0308 | 3/8 | 0.12 | 704126308 | S-C0101 | 1 | 0.67 | 704126101 |
Selection, Installation, Safety, and Maintenance
Wire rope clips (also called wire rope clamps or cable clamps) are mechanical fittings used to form eyes (loops) or temporary terminations at the end of wire ropes. They typically consist of a U‑bolt, a saddle, and two nuts that clamp the live and dead ends of the rope together.
When selected and installed correctly, wire rope clips can provide a secure and adjustable termination that reaches a high percentage of the rope’s original breaking strength. They are widely used in construction, lifting, marine, transportation, and general industrial applications.
The most common design, consisting of a U‑shaped bolt, a saddle, and two nuts.
These have two saddles and two through‑bolts, distributing the clamping force more evenly around the rope.
Most manufacturers mark clips by wire rope diameter. Below is a typical application range guide:
| Clip Size (inch) | Typical Rope Diameter (mm) | Typical Application Range |
|---|---|---|
| 1/8" | 3–4 mm | Light cables, small lanyards, small barriers |
| 3/16" | 5 mm | Small guy wires, light suspensions |
| 1/4" | 6–7 mm | General utility cables, small hoisting lines |
| 3/8" | 10 mm | Construction and industrial rigging |
| 1/2" | 13 mm | Heavier rigging, structural guys |
| 5/8"–1" | 16–26 mm | Heavy construction, cranes, tower guys |
Exact sizing and designation depend on the manufacturer’s catalog and local standards.
Wire rope clips are used wherever a loop or temporary termination is needed on wire rope:
Wire rope clips work by clamping the live end and the dead end of the rope together over a sufficient length, using multiple clips with specified spacing and torque. The friction and deformation under the saddle prevent the rope from slipping.
“Never saddle a dead horse.”
This means the saddle must always be on the live (load‑bearing) end, and the U‑bolt on the dead end. Otherwise, the rope can be crushed and slip under load.
Before installing wire rope clips, always:
(Example values based on a common forged U‑bolt clip table)
| Rope Dia. (in) | Min. No. of Clips | Approx. Turnback Length (in) | Torque (ft‑lbs) |
|---|---|---|---|
| 1/8" | 2 | 3.25–3.5 | 4.5 |
| 3/16" | 2 | 3.75–4.0 | 7.5 |
| 1/4" | 2 | 4.75 | 15 |
| 5/16" | 2 | 5.25 | 30 |
| 3/8" | 2 | 6.5 | 45 |
| 1/2" | 3 | 11.5 | 65 |
| 5/8" | 3 | 12–16 | 95 |
| 3/4" | 3–4 | 18–19 | 130–225 |
| 1" | 5 | 26–37 | 225 |
Always refer to the specific manufacturer’s data sheet, as exact numbers vary by brand and standard.
Several frequent mistakes significantly reduce the efficiency and safety of wire rope clips:
