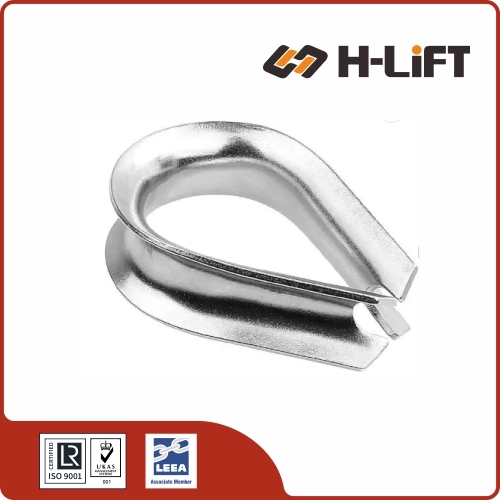

The H-Lift Stainless Steel Wire Rope Thimble is a durable protective fitting inserted into a wire rope eye to prevent the cable from crushing, pinching, and fraying under load.
The Stainless Steel Wire Rope Thimble is a critical safety component designed to be installed inside the loop (eye) of a wire rope. It acts as a hard, shaped barrier that distributes the load evenly, preventing the wire cable from deforming, pinching, or rapidly fraying under heavy tension. Available in multiple global patterns to suit specific industry requirements.
Prevents the eye of the wire rope from being crushed under load. It creates a smooth, rigid bearing surface for shackles or hooks, extending the lifespan of your expensive cables significantly.
Type 316 (Marine-Grade): Offers superior resistance to saltwater and chloride pitting. Essential for offshore rigging.
Type 304: Provides excellent general-purpose rust resistance for industrial use.
Available in a wide variety of patterns to seamlessly integrate with regional hardware, including U.S. Standard, U.S. Extra Heavy Duty, European Commercial, and Italianate Commercial styles.
A mandatory safety component utilized across diverse sectors including construction lifting, maritime anchoring, manufacturing assembly lines, shade sail tensioning, and military logistics.
| Item No. | Size (inch) | N.W. (kg) | Product Code |
|---|---|---|---|
| S-T0104 | 1/4 | 0.028 | 704124104 |
| S-T0516 | 5/16 | 0.054 | 704124516 |
| S-T0308 | 3/8 | 0.107 | 704124308 |
| S-T0716 | 7/16 | 0.147 | 704124716 |
| S-T0102 | 1/2 | 0.240 | 704124102 |
| S-T0916 | 9/16 | 0.240 | 704124916 |
| S-T0508 | 5/8 | 0.330 | 704124508 |
| S-T0304 | 3/4 | 0.690 | 704124304 |
| S-T0708 | 7/8 | 0.830 | 704124708 |
| S-T0101 | 1 | 1.200 | 704124101 |
| Item No. | Size (inch) | N.W. (kg) | Product Code |
|---|---|---|---|
| S-T1108 | 1/8 | 0.015 | 704130108 |
| S-T1316 | 3/16 | 0.015 | 704130316 |
| S-T1104 | 1/4 | 0.015 | 704130104 |
| S-T1516 | 5/16 | 0.019 | 704130516 |
| S-T1308 | 3/8 | 0.031 | 704130308 |
| S-T1102 | 1/2 | 0.060 | 704130102 |
| S-T1508 | 5/8 | 0.167 | 704130508 |
| S-T1304 | 3/4 | 0.262 | 704130304 |
| S-T1708 | 7/8 | 0.403 | 704130708 |
| S-T1101 | 1 | 0.476 | 704130101 |
| Item No. | Size (mm) | N.W. (kg / 100pcs) | Product Code |
|---|---|---|---|
| S-T2003 | 3 | 0.38 | 704125003 |
| S-T2004 | 4 | 0.53 | 704125004 |
| S-T2005 | 5 | 0.70 | 704125005 |
| S-T2006 | 6 | 0.96 | 704125006 |
| S-T2008 | 8 | 2.05 | 704125008 |
| S-T2010 | 10 | 3.30 | 704125010 |
| S-T2012 | 12 | 5.50 | 704125012 |
| S-T2014 | 14 | 10.30 | 704125014 |
| S-T2016 | 16 | 12.40 | 704125016 |
| S-T2020 | 20 | 26.60 | 704125020 |
| S-T2022 | 22 | 32.60 | 704125022 |
| S-T2024 | 24 | 45.10 | 704125024 |
| S-T2028 | 28 | 73.90 | 704125028 |
| S-T320 | 32 | 76.40 | 704131320 |
| S-T360 | 36 | 144.90 | 704131360 |
| Item No. | Size (mm) | N.W. (kg / 100pcs) | Product Code |
|---|---|---|---|
| S-T020 | 2 | 0.11 | 704131020 |
| S-T025 | 2.5 | 0.15 | 704131025 |
| S-T030 | 3 | 0.38 | 704131030 |
| S-T040 | 4 | 0.53 | 704131040 |
| S-T050 | 5 | 0.70 | 704131050 |
| S-T060 | 6 | 0.96 | 704131060 |
| S-T080 | 8 | 2.10 | 704131080 |
| S-T100 | 10 | 3.30 | 704131100 |
| S-T120 | 12 | 5.50 | 704131120 |
| S-T140 | 14 | 10.30 | 704131140 |
| S-T160 | 16 | 12.40 | 704131160 |
| S-T180 | 18 | 16.00 | 704131180 |
| S-T200 | 20 | 26.60 | 704131200 |
| S-T220 | 22 | 32.60 | 704131220 |
| S-T240 | 24 | 45.10 | 704131240 |
| S-T280 | 28 | 73.90 | 704131280 |
| S-T320 | 32 | 76.40 | 704131320 |
| S-T360 | 36 | 144.90 | 704131360 |
