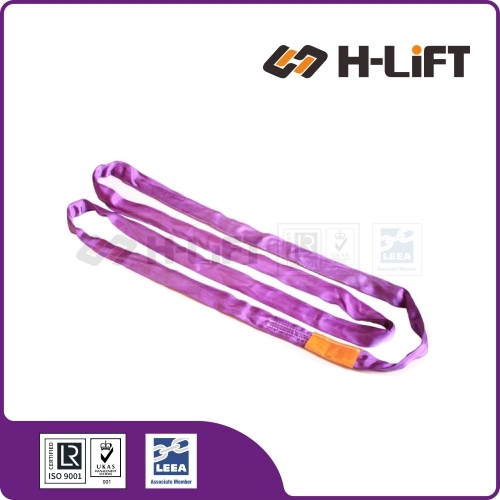

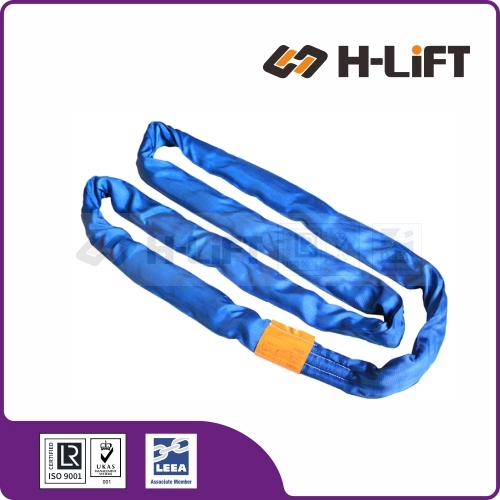

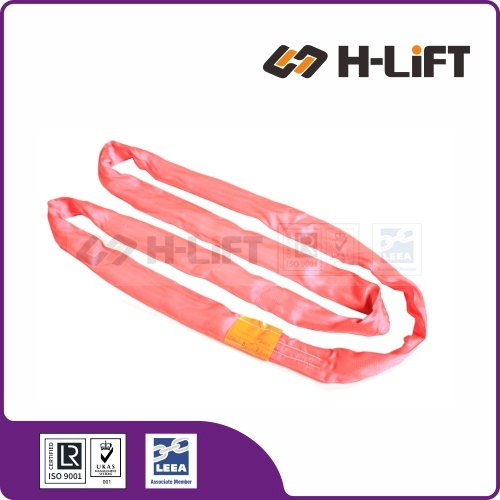

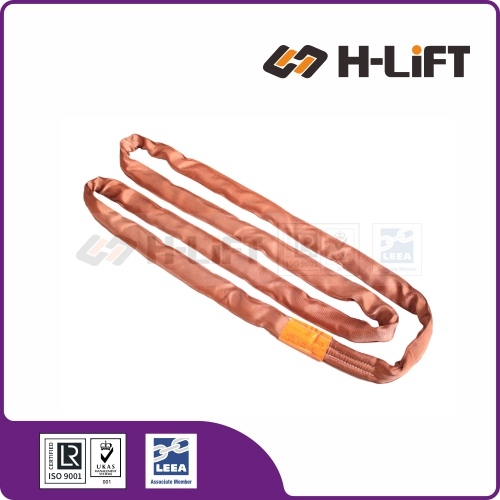

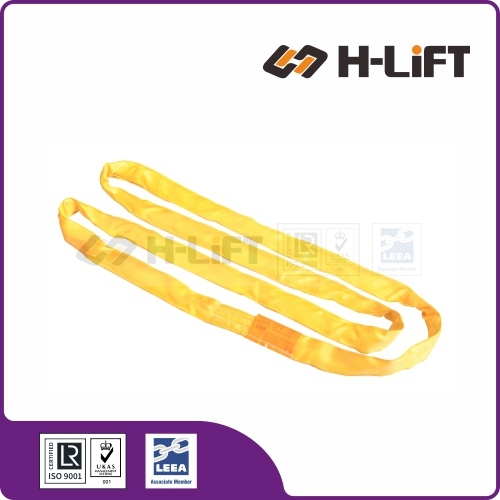

The H-Lift Synthetic Round Sling complies with ASME/ANSI B30.9 standards, featuring extra-strong PU-impregnated webbing sleeves for superior durability. Available in 13 capacities from 2,600 lbs to 90,000 lbs WLL, these endless round slings offer versatile lifting configurations (vertical, choker, basket) for safe, efficient load handling in construction and industrial applications.
Our Polyester Round Slings are engineered for heavy-duty lifting in North American construction and industrial sites. Manufactured strictly to ASME/ANSI B30.9 standards with a 5:1 Design Factor, these endless loop slings offer a lightweight yet incredibly strong alternative to chain or wire rope, with a soft cover that protects your load from damage.
Strictly manufactured to ASME/ANSI B30.9 standards with a 5:1 Design Factor, ensuring full compliance for US industrial sites.
The continuous loop of polyester yarns allows the contact point to be rotated, extending the sling's service life by distributing wear evenly.
The soft, pliable cover conforms to the load, gripping it securely without damaging delicate surfaces or finished products.
Features industry-standard color coding (Purple, Green, Yellow, etc.) for instant capacity identification, reducing the risk of overloading.
Safety Tip: Always protect the sling from sharp edges using Protective Sleeves or corner guards.
| Item No. | Hitch Type & Capacity (lbs) | Product Code | |||||
|---|---|---|---|---|---|---|---|
| Vertical (100%) |
Choker (80%) |
Vertical Basket (200%) |
60˚ Basket | 45˚ Basket | 30˚ Basket | ||
| RS03-1 (Purple) | 2,600 | 2,100 | 5,200 | 4,500 | 3,700 | 2,600 | 309002600 |
| RS03-2 (Green) | 5,300 | 4,200 | 10,600 | 9,200 | 7,500 | 5,300 | 309005300 |
| RS03-3 (Yellow) | 8,400 | 6,700 | 16,800 | 14,500 | 11,900 | 8,400 | 309008400 |
| RS03-4 (Tan) | 10,600 | 8,500 | 21,200 | 18,400 | 15,000 | 10,600 | 309010600 |
| RS03-5 (Red) | 13,200 | 10,600 | 26,400 | 22,900 | 18,700 | 13,200 | 309013200 |
| RS03-6 (White) | 16,800 | 13,400 | 33,600 | 29,100 | 23,800 | 16,800 | 309016800 |
| RS03-7 (Blue) | 21,200 | 17,000 | 42,400 | 36,700 | 30,000 | 21,200 | 309021200 |
| RS03-8 (Orange) | 25,000 | 20,000 | 50,000 | 43,300 | 35,400 | 25,000 | 309025000 |
| RS03-9 | 31,000 | 24,800 | 62,000 | 53,700 | 43,800 | 31,000 | 309031000 |
| RS03-10 | 40,000 | 32,000 | 80,000 | 69,300 | 56,600 | 40,000 | 309040000 |
| RS03-11 | 53,000 | 42,400 | 106,000 | 91,800 | 74,900 | 53,000 | 309053000 |
| RS03-12 | 66,000 | 52,800 | 132,000 | 114,300 | 93,300 | 66,000 | 309066000 |
| RS03-13 | 90,000 | 72,000 | 180,000 | 155,900 | 127,300 | 90,000 | 309090000 |
The ASME B30.9 standard is crucial for the safe operation of lifting and rigging. It provides essential guidelines to ensure that synthetic roundslings are inspected, maintained, and utilized effectively to prevent accidents and ensure operational efficiency.
