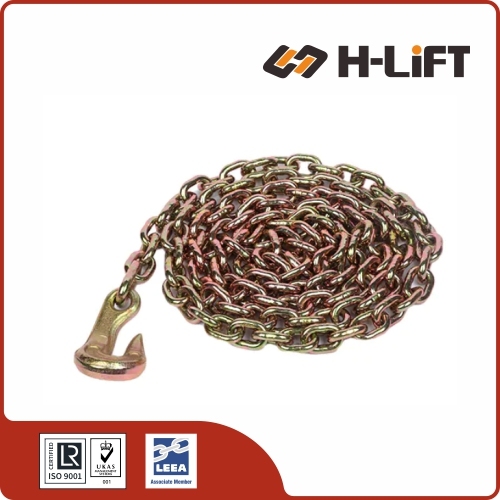

The H-Lift Tie Down Chain with Bent Hook is a specialized load securement assembly featuring Grade 70 (G70) transport chain and bent hooks designed for easier connection angles on trailers and transport vehicles.
The Tie Down Chain with Bent Hook is a specialized lashing assembly designed for securing heavy equipment on flatbeds and recovery vehicles. Featuring a forged "reversed bend" hook, it provides a superior connection to side rails and D-rings where standard straight hooks struggle to align, ensuring your load stays secure during transit.
Features a specialized curved/offset end fitting. This "reversed bend" design allows for easier connection to side rub rails, D-rings, and vehicle frames where standard straight grab hooks cannot align properly.
The bent profile naturally maintains chain tension and angles much better over edges. This prevents the hook from accidentally dislodging or falling off when the load shifts during transit.
Available in high-strength Grade 70 (G70) or premium Grade 80 (G80) alloy steel to suit different working load requirements and regional transport regulations.
Finished in a durable Yellow Zinc or Gold Zinc Plating. This provides excellent corrosion resistance against road salts and allows for easy visual identification by transport inspectors.
| Chain Dia (mm) | Length (feet) | WLL (ton) | Breaking Load (ton) | N.W. (kgs) | Product Code |
|---|---|---|---|---|---|
| 7.1 | 9 | 1.6 | 6.5 | 3.3 | 708100709 |
| 12 | 1.6 | 6.5 | 4.2 | 708100712 | |
| 15 | 1.6 | 6.5 | 5.1 | 708100715 | |
| 18 | 1.6 | 6.5 | 6.3 | 708100718 | |
| 8 | 9 | 2.0 | 8.0 | 4.2 | 708100809 |
| 12 | 2.0 | 8.0 | 5.5 | 708100812 | |
| 15 | 2.0 | 8.0 | 6.9 | 708100815 | |
| 18 | 2.0 | 8.0 | 8.5 | 708100818 | |
| 10 | 9 | 3.2 | 13.0 | 6.5 | 708101009 |
| 12 | 3.2 | 13.0 | 8.5 | 708101012 | |
| 15 | 3.2 | 13.0 | 10.5 | 708101015 | |
| 18 | 3.2 | 13.0 | 13.2 | 708101018 | |
| 13 | 9 | 5.5 | 22.0 | 10.8 | 708101309 |
| 12 | 5.5 | 22.0 | 14.1 | 708101312 | |
| 15 | 5.5 | 22.0 | 17.4 | 708101315 | |
| 18 | 5.5 | 22.0 | 21.6 | 708101318 |
