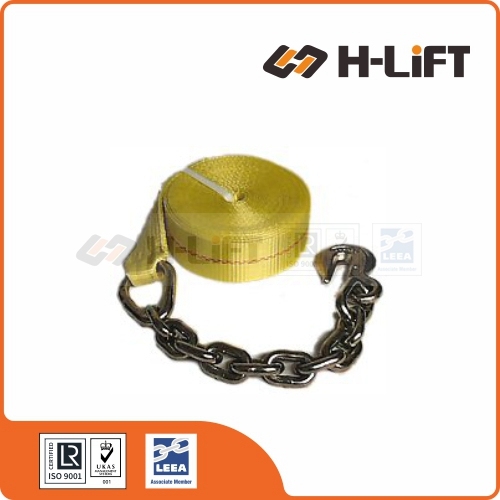

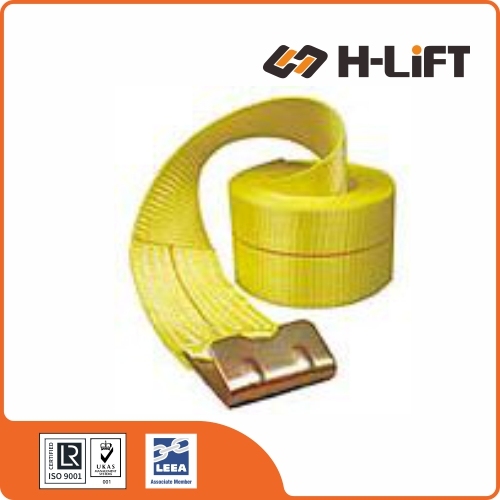

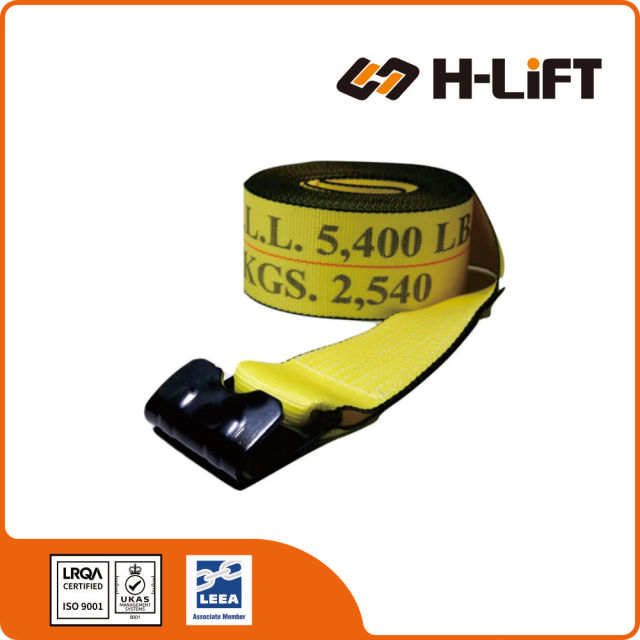

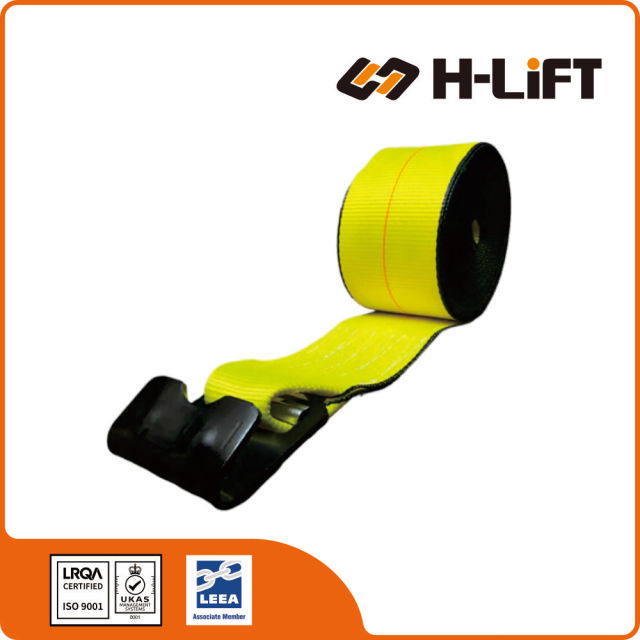

Truck Tie Down Winch Strap

Name: Truck Tie Down Winch Strap
Brand: H-Lift Industries Co Ltd
SKU: 4021
Availability: InStock
Rating: 5 (1 reviews)

No.4021

The Truck Tie-Down Winch Strap is a fast, easy, and highly secure cargo restraint solution engineered to retain heavy loads on commercial flatbed trucks and trailers when used with a standard winching system.

Versatile Sizing: Available in 2", 3", and 4" webbing widths with industry-standard lengths of 27' and 30' to seamlessly accommodate a wide variety of flatbed securing requirements.
Multiple End Fittings: Can be equipped with an extensive range of terminal hardware, including Flat Hooks, Forged Triangles, Chain Grab Hooks, Chain Anchor Assemblies, Double J Hooks, or Sewn Eyes.
Heavy-Duty Capacity: Designed for demanding transport needs, offering Working Load Limits (WLL) ranging from 3,300 lbs up to 5,400 lbs, with Minimum Breaking Strengths reaching up to 16,200 lbs.
Standard Compliance: Rigorously tested and manufactured to meet strict Web Sling and Tie Down Association (WSTDA) standards, guaranteeing maximum safety and on-road reliability.

Technical Data
2" Logistic Strap

Truck Tie Down Winch Straps

Heavy-Duty Webbing for Flatbed Cargo Control

WSTDA Compliant Winch Strap 2", 3", 4" Widths Heavy-Duty Webbing

*Designed for use with truck winches

Product Features

Heavy-Duty Winch Strap: A truck tie down winch strap is a strap that has a hardware fitting on one end and is winched into place. The most common end fittings for a winch strap are flat hooks and chain extensions.
Secure & Fast: Truck tie down winch straps are an easy, safe, fast way to secure tie down loads. Standard sizes are 27' and 30' in length.
Versatile Application: Winch straps are used to retain loads and objects on trucks and trailers.
Safety Standards: Our truck tie down straps meet Web Sling and Tie Down Association (WSTDA) standards.

Technical Specifications

Item No.	Strap Size (Width x Length)	End Fitting	WLL (lbs)	MBS (lbs)	Product Code
WSFH227	2" x 27'	Flat Hook	3300	10000	402122701
WSFH230	2" x 30'	Flat Hook	3300	10000	402123002
WSFH327	3" x 27'	Flat Hook	5000 / 5400	15000 / 16200	402132703
WSFH330	3" x 30'	Flat Hook			402133004
WSFH427	4" x 27'	Flat Hook			402142705
WSFH430	4" x 30'	Flat Hook			402143006
WSFT327	3" x 27'	Forged Triangle	5000 / 5400	15000 / 16200	402132707
WSFT330	3" x 30'	Forged Triangle			402133008
WSFT427	4" x 27'	Forged Triangle			402142709
WSFT430	4" x 30'	Forged Triangle			402143010
WSGH327	3" x 27'	Chain Grab Hook	5000 / 5400	15000 / 16200	402132711
WSGH330	3" x 30'	Chain Grab Hook			402133012
WSGH427	4" x 27'	Chain Grab Hook			402142713
WSGH430	4" x 30'	Chain Grab Hook			402143014
WSCH327	3" x 27'	Chain Anchor Assembly	5000 / 5400	15000 / 16200	402132715
WSCH330	3" x 30'	Chain Anchor Assembly			402133016
WSCH427	4" x 27'	Chain Anchor Assembly			402142717
WSCH430	4" x 30'	Chain Anchor Assembly			402143018
WSDJ327	3" x 27'	Double J Hook	5000 / 5400	15000 / 16200	402132719
WSDJ330	3" x 30'	Double J Hook			402133020
WSDJ427	4" x 27'	Double J Hook			402142721
WSDJ430	4" x 30'	Double J Hook			402143022
WSSE327	3" x 27'	Sewn Eye	5000 / 5400	15000 / 16200	402132723
WSSE330	3" x 30'	Sewn Eye			402133024
WSSE427	4" x 27'	Sewn Eye			402142725
WSSE430	4" x 30'	Sewn Eye			402143026

2-Inch Logistic Strap

Internal Van Cargo Control & Tie-Downs

WSTDA Compliant Logistic Strap E-Track Compatible 2" Width

Product Features

Width: The strap is 2 inches wide, providing strength and stability for securing various types of cargo inside vans and trailers.
Material: Logistic straps are typically made of high-strength materials like polyester or nylon webbing, which have excellent tensile strength and resistance to wear and tear.
Ratchet or Cam Buckle: These straps often feature a ratchet or cam buckle mechanism for tensioning and securing the strap around the cargo. The buckle allows for easy adjustment and tightening.
Hooks or End Fittings: Logistic straps usually have hooks or end fittings on each end (such as E-Track or Butterfly fittings), which can be attached to anchor points on the vehicle or trailer walls.
Working Load Limit (WLL): Logistic straps are rated for specific working load limits, indicating the maximum weight they can safely secure. It's crucial to choose a strap with a WLL that exceeds the weight of your cargo.
Break Strength: This represents the maximum force the strap can withstand before breaking.

Technical Specifications

Item No.	Strap Size (Width x Length)	End Fitting	WLL (lbs)	MBS (lbs)	Product Code
WLRB212	2" x 12'	E Track Fitting	1300	4000	402021227
WLRB216	2" x 16'	E Track Fitting	1300	4000	402021628
WERB212	2" x 12'	3 Piece End Fitting	1300	4000	402021229
WERB216	2" x 16'	3 Piece End Fitting	1300	4000	402021630
WLCB212	2" x 12'	E Track Fitting	830	2500	402021231
WLCB216	2" x 16'	E Track Fitting	830	2500	402021632
WBCB212	2" x 12'	Butterfly Fitting	410	1250	402021233
WBCB216	2" x 16'	Butterfly Fitting	410	1250	402021634
