Universal Beam Clamp

No.1504

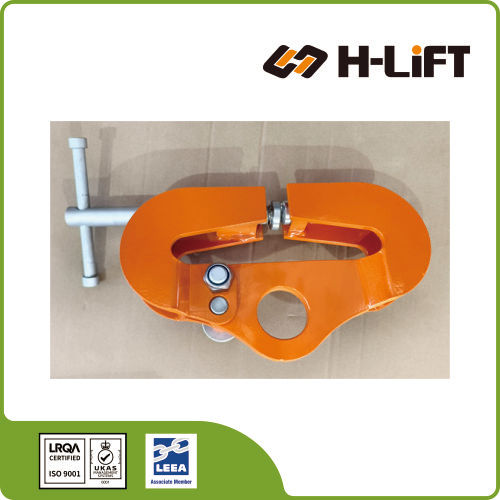

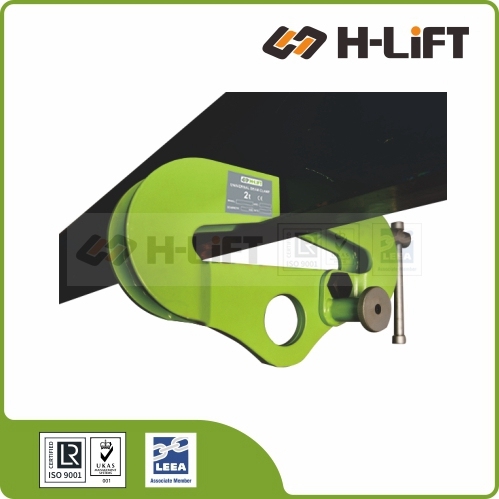

The H-Lift Universal Beam Clamp (BCU Type) is a premium, no-drill anchor designed for lifting, pulling, or suspending loads from overhead I-beams. It functions as a versatile semi-permanent anchor point that handles angled loading, eliminating the need for spreader beams.

Multi-Angle Lifting: Designed to be loaded at any angle, retaining 100% capacity within 15 degrees from the centerline.
Wide Compatibility: Threaded spindle mechanism quickly adjusts to securely fit a wide range of I-beam and H-beam flanges.
Low-Headroom Design: Integrated suspension bar allows close-coupled installation of hoists in restricted spaces.
No-Drill Installation: Provides a highly secure, repositionable anchor without welding or beam modification.

Product Features

Multi-Directional Loading: Unlike standard beam clamps that are limited to vertical lifting only, this Universal Beam Clamp is designed to accept loads at any angle (side loading), making it versatile for complex rigging plans.

Hinged Suspension Eye: Features a uniquely designed hinged suspension eye that automatically aligns with the load direction, reducing stress on the clamp jaws and ensuring stability.

Low Headroom Design: The integrated suspension point is positioned close to the beam flange, providing maximum headroom for lifting in confined spaces.

Wide Adjustable Range: The threaded spindle mechanism allows for quick adjustments to fit a broad range of I-beam and H-beam flange widths (up to 405mm on the wide model).

Secure Grip: Equipped with a screw-locking mechanism that ensures the clamp stays firmly attached to the beam, even when subjected to side loads or vibration.

Why Choose BCU?
• Versatility: One clamp handles both vertical lifting and side pulling.
• Safety at Angles: Specifically engineered to handle side forces safely where standard clamps would slip.
• Cost Effective: Eliminates the need for spreader beams in many angled pull applications.

Technical Specifications

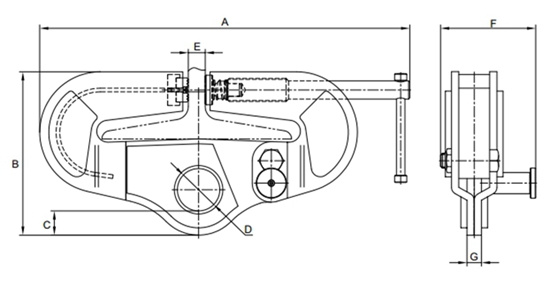

*Refer to the diagram above to identify dimensions A through G in the table below.

Item No.	Capacity	Proof Load	Beam Width Range	Dimensions (mm)							Net Weight	Product Code
	Capacity	Proof Load	Beam Width Range	A	B	C	D	E	F	G	Net Weight
	(t)	(kN)	(mm)	-	-	-	-	-	-	-	(kg)
BCU020S	2	39.2	125-204	450	203	22.5	Ø58	32.5	118	16	8.3	150402000
BCU032S	3.2	62.7	125-204	550	237	30	Ø60	32	133	20	14.5	150403200
BCU050S	5	98.0	125-305	615	270	37.5	Ø75	32	157	24	26.4	150405000
BCU100S	10	196.0	125-305	615	270	35	Ø80	32	225	44	38.0	150410001
BCU100W	10	196.0	225-405	700	298	38	Ø80	70	230	44	46.3	150410002

What is a Beam Clamp?

A beam clamp is a lifting accessory designed to attach to the flange of a steel beam (I-beam or H-beam) to create a semi-permanent lifting point. It serves as an anchor for hoists, pulleys, or other lifting devices. Proper selection and use are critical to ensure the safety of the load and the integrity of the beam structure.

Safety Guidelines

Always

Store and handle beam clamps correctly in a clean, dry place.
Inspect beam clamps and accessories before every use.
Ensure the supporting structure (beam) is adequate for the full load imposed.
Check the clamp is the correct profile and size for the beam width and seats correctly on the flange.
Ensure the clamp is rated strong enough for the load.
Position the clamp directly over the center of gravity of the load.

Never

Use unidentified or uncertified clamps for lifting applications.
Replace bolts, shackles, or pins without consulting the supplier.
Throw or drop beam clamps.
Use clamps on damaged or distorted beams.
Force or wedge lifting hooks into the attachment eye/shackle.
Obliquely load beam clamps without authorization (side loading can cause slippage).

Selection & Operation Guide

Selecting the Correct Clamp

Beam clamps vary in capacity and design (adjustable/non-adjustable, scissor, screw, or bolt action). Consider:

Type of clamp mechanism.
Capacity relative to the load.
Beam flange width range.
Suitability for temporary vs. permanent application.

NOTE: Most beam clamps are intended for overhead suspension. Consult the supplier if attaching to the load itself.

Using Beam Clamps Safely

Ensure the lifting appliance (hoist) is compatible with the clamp. The load must not swing, as this imposes dangerous oblique loading. If using two clamps in tandem (e.g., with a spreader beam), ensure neither clamp exceeds its Safe Working Load (SWL).

In-service Inspection

Regularly clean and lubricate moving parts. Inspect for wear, distortion, cracks, insecure bolts, corrosion, or illegible markings. If defects are found, refer the clamp to a Competent Person immediately.
