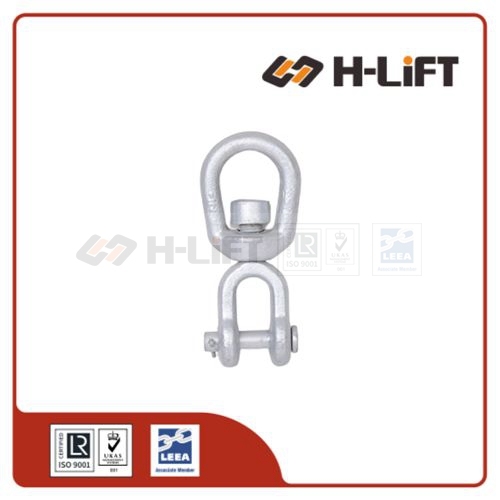

The H-Lift U.S. Type Jaw End Swivel is a forged positioning device featuring jaw-style ends with removable pins, designed to relieve sling twist and allow pre-lift alignment in rigging assemblies.
The G403 Jaw End Swivel is a versatile positioning device manufactured to Federal Specification RR-C-271 (Type VII, Class 3). It features a Jaw (Clevis) end with a removable pin, allowing for direct connection to eye bolts, chain links, or pad eyes without the need for an intermediate shackle. Finished with Hot Dip Galvanizing for durability.
Combines one Eye end and one Jaw (Clevis) end. This design eliminates the need for extra shackles, providing a more compact and streamlined rigging assembly.
Manufactured from drop forged carbon steel, quenched and tempered. This process ensures high tensile strength and impact resistance for industrial applications.
Finished with Hot Dip Galvanizing (HDG), providing superior rust protection compared to standard zinc plating, making it ideal for harsh outdoor environments.
Meets the strict requirements of Federal Specification RR-C-271 (Type VII, Class 3), ensuring consistent performance and safety ratings.
| Item No. | Size | W.L.L. | Dimensions (inch) | Weight | Product Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (inch) | (lbs) | A | B | C | K | N | P | R | (kg) | ||
| HK3106 | 1/4 | 850 | 0.69 | 0.69 | 0.75 | 0.47 | 0.88 | 0.25 | 2.63 | 0.11 | 703014006 |
| HK3108 | 5/16 | 1,250 | 0.81 | 0.81 | 1.00 | 0.50 | 0.88 | 0.31 | 2.94 | 0.17 | 703014008 |
| HK3110 | 3/8 | 2,250 | 1.00 | 0.94 | 1.25 | 0.63 | 1.06 | 0.38 | 3.63 | 0.32 | 703014010 |
| HK3113 | 1/2 | 3,600 | 1.31 | 1.31 | 1.50 | 0.75 | 1.31 | 0.50 | 4.50 | 0.65 | 703014013 |
| HK3116 | 5/8 | 5,200 | 1.50 | 1.56 | 1.75 | 0.94 | 1.50 | 0.63 | 5.31 | 1.12 | 703014016 |
| HK3119 | 3/4 | 7,200 | 1.88 | 1.75 | 2.00 | 1.13 | 1.75 | 0.75 | 6.06 | 1.76 | 703014019 |
| HK3122 | 7/8 | 10,000 | 2.13 | 2.06 | 2.25 | 1.19 | 2.06 | 0.88 | 7.00 | 2.60 | 703014022 |
| HK3125 | 1 | 12,500 | 2.38 | 2.31 | 2.50 | 1.75 | 2.81 | 1.13 | 8.56 | 4.65 | 703014025 |
| HK3132 | 1-1/4 | 18,000 | 3.00 | 2.69 | 3.13 | 2.06 | 2.81 | 1.38 | 9.44 | 7.15 | 703014032 |
| HK3138 | 1-1/2 | 45,200 | 3.75 | 4.19 | 4.00 | 2.88 | 4.44 | 2.25 | 14.74 | 24.80 | 703014038 |
