The H-Lift U.S. Type Regular Swivel is a forged rotating connector with jaw-style ends, designed to prevent twisting and tangling in rigging assemblies, wire rope, and chain systems.

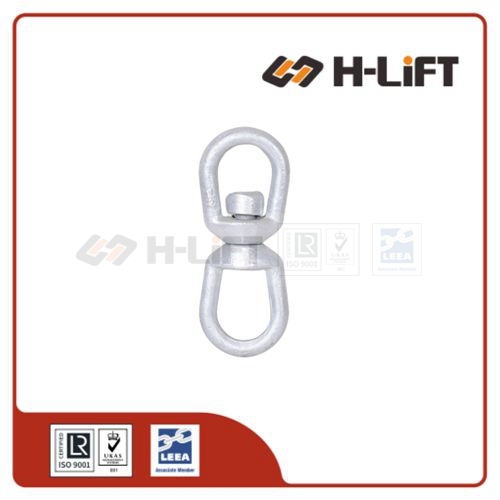

The G402 Regular Swivel is the industrial standard for eye-to-eye positioning swivels. Manufactured to Federal Specification RR-C-271 (Type VII, Class 2), it features two large, rounded eyes suitable for connecting to shackles, hooks, or wire rope thimbles. Finished with Hot Dip Galvanizing for superior corrosion resistance.
Features two rounded eyes connected by a central shank. The larger eye design (compared to G401 chain swivels) makes it versatile for connecting to various rigging hardware.
Manufactured from drop forged carbon steel, quenched and tempered. This process ensures maximum structural integrity and high tensile strength.
Finished with Hot Dip Galvanizing (HDG), providing a thicker, more durable coating than standard zinc plating for superior rust resistance in harsh environments.
Meets the requirements of Federal Specification RR-C-271 (Type VII, Class 2), ensuring consistent quality and performance specifications.
| Item No. | Size | W.L.L. | Dimensions (inch) | Weight | Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| (inch) | (lbs) | A | B | C | D | R | (kg) | ||
| HK3006 | 1/4 | 850 | 0.69 | 0.69 | 0.75 | 1.06 | 2.94 | 0.10 | 703013006 |
| HK3008 | 5/16 | 1,250 | 0.81 | 0.81 | 1.00 | 1.25 | 3.56 | 0.18 | 703013008 |
| HK3010 | 3/8 | 2,250 | 1.00 | 0.94 | 1.25 | 1.50 | 4.31 | 0.34 | 703013010 |
| HK3013 | 1/2 | 3,600 | 1.31 | 1.31 | 1.50 | 2.00 | 5.44 | 0.60 | 703013013 |
| HK3016 | 5/8 | 5,200 | 1.50 | 1.56 | 1.75 | 2.38 | 6.56 | 1.12 | 703013016 |
| HK3019 | 3/4 | 7,200 | 1.88 | 1.75 | 2.00 | 2.63 | 7.19 | 1.82 | 703013019 |
| HK3022 | 7/8 | 10,000 | 2.13 | 2.06 | 2.25 | 3.06 | 8.38 | 2.84 | 703013022 |
| HK3025 | 1 | 12,500 | 2.38 | 2.31 | 2.50 | 3.50 | 9.63 | 4.06 | 703013025 |
| HK3032 | 1-1/4 | 18,000 | 3.00 | 2.69 | 3.13 | 2.69 | 11.13 | 7.43 | 703013032 |
| HK3038 | 1-1/2 | 45,200 | 3.75 | 3.88 | 4.00 | 4.18 | 17.13 | 20.77 | 703013038 |
